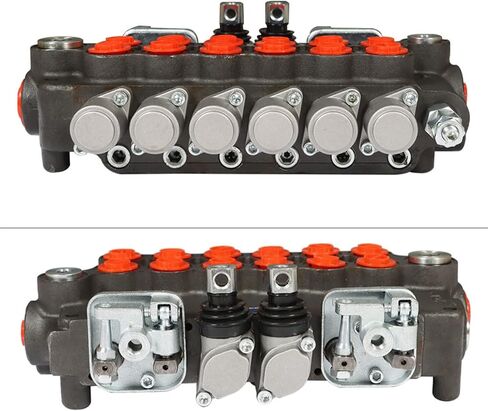

Hydraulic Valve 6 Spool 21GPM 3625PSI SAE Ports Double Acting Hydraulic Directional Control Valve
Specification:
Mounting Holes: 3-5/16"
Flow Rating: 21GPM (80 l/min)
Preset Pressure Relief: 2610PSI
Inlet Port: 10 SAE O-Ring (7/8"-14) Thread
Outlet Port: 12 SAE O-Ring (1-1/16") Thread
A & B Work Ports: 10 SAE O-Ring (7/8"-14) Thread
Adjustable Relief Valve Range: 1500 to 3625PSI
Max Operating Pressure: P = 3625PSI, T = 725PSI, A & B = 4350PSI
Features:
1. Capable of closed center or power beyond (conversion plug required)
2. Used as motor or single-acting spool possible (10 SAE port plug required)
3. 3625PSI with adjustable pressure relief handle for maximum flow of 21GPM
4. Used for open center systems (pump to tank flow) - closed center option available
5. All spools of the product are standard double acting springs returning to neutral place
6. Hydraulic directional valve is suitable for small tractor, tractors loader, light loader, log splitter, etc
7. Used to manage and guide the flow of hydraulic oil between hydraulic pumps and hydraulic cylinders, motors, tanks, etc
8. This product adopts durable cast iron material and hard chrome plated valve core design to make the product has a long service life
Package Includes:
1 x 6 Spool Hydraulic Directional Control Valve
