Specification:

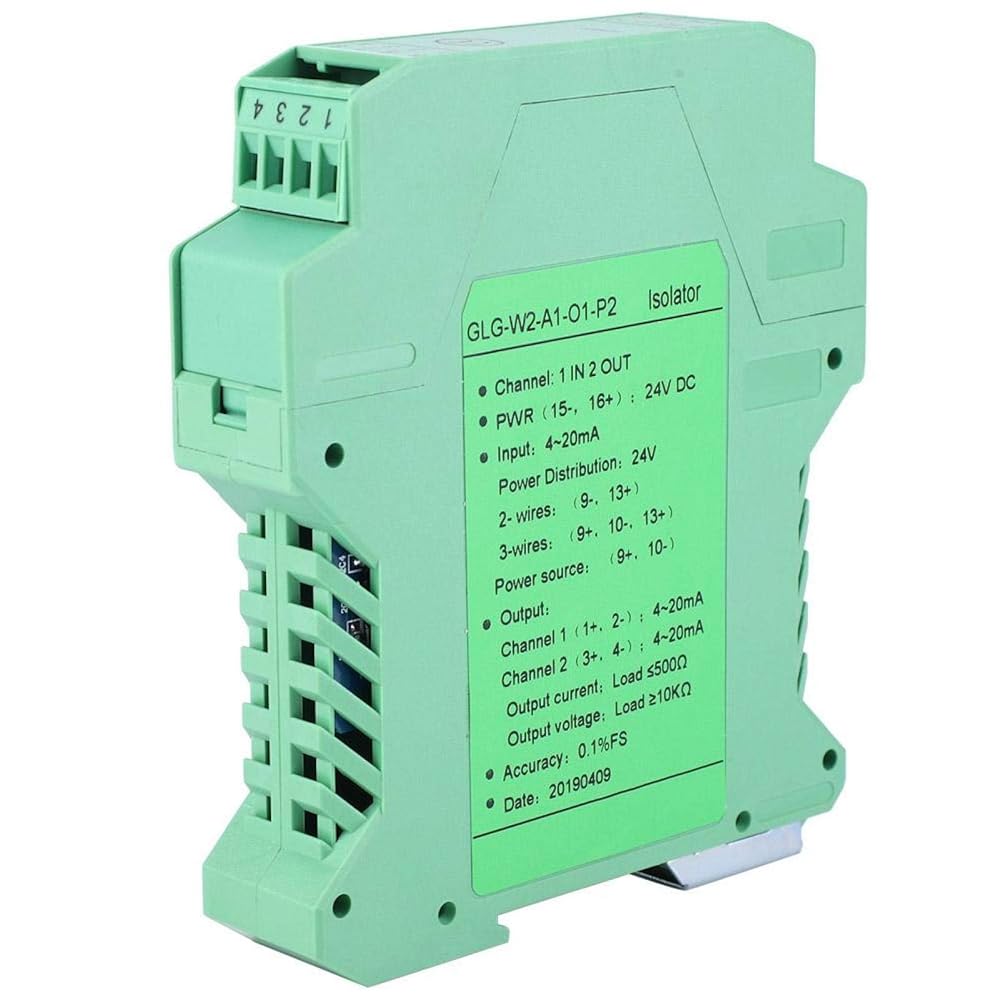

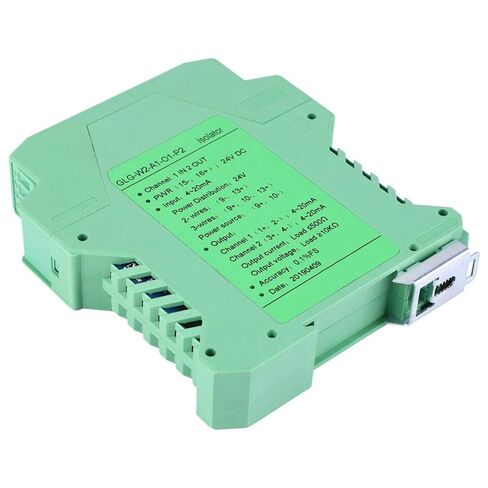

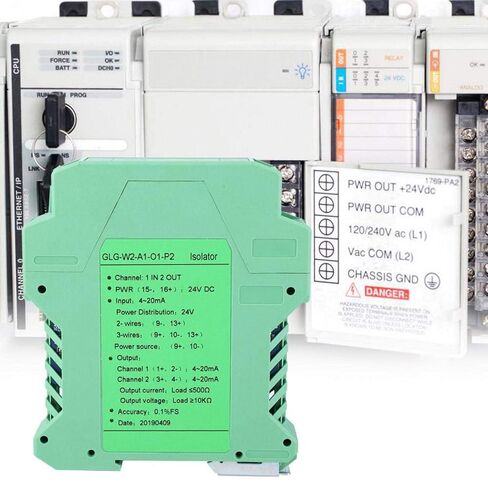

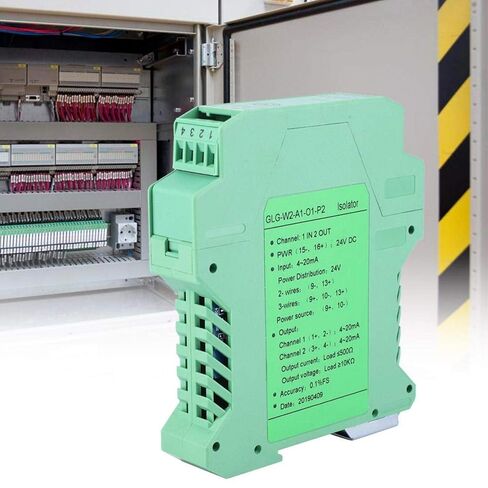

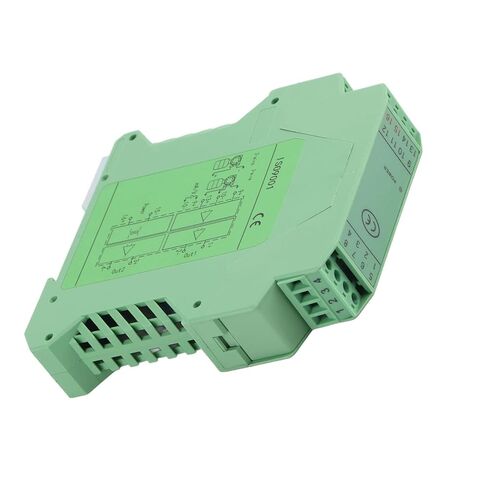

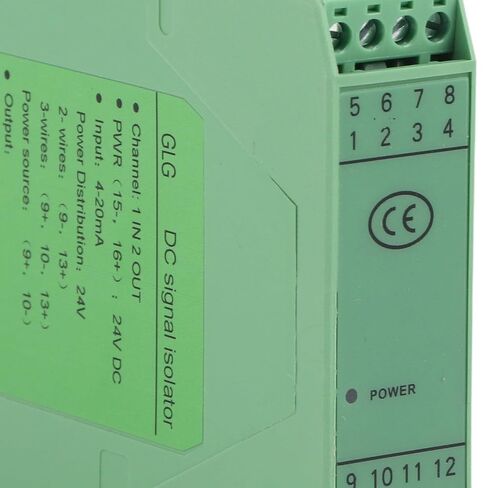

Product Name: DC current signal isolation transmitter
Model: GLG
Channel configuration: 1 in and 1 out, 1 in 2 out
Type: (Optional)
#1, 1 in 1 out, 4-20mA to 0-5V
#2, 1 in 1 out, 4-20mA to 0-10V
#3, 1 in 1`out. 4-20mA to 4-20mA
#4, 1 in 2 out, 4-20mA to 4-20mA
Power supply voltage: DC 24V ±10%
Rated power consumption: ≤1W
Response time: ≤100MS
Insulation strength: 2000V AC/1MIN
Input impedance: ≤50Ω
Ambient temperature: -20 - 55 (°C)

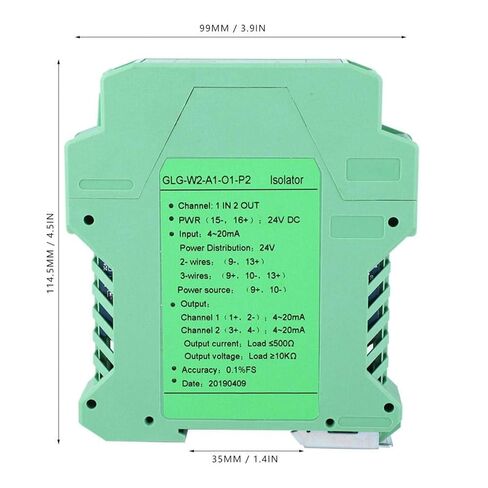

Dimensions: 100*22.5*114.5（mm）

Package list:
1 * Signal Isolator

Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
