AGC IF Amplifier 45dB Gain IF Amplifier 28mA Automatic Gain Control 0.1 to 500MHz Intermediate Frequency Amplifier for Receiver

KWD 4.500
Brand
Walfront
Weight
12 g
– 1 +

Special Features

  • Operating Frequency: The operating frequency range of this intermediate frequency amplifier is within 500MHz

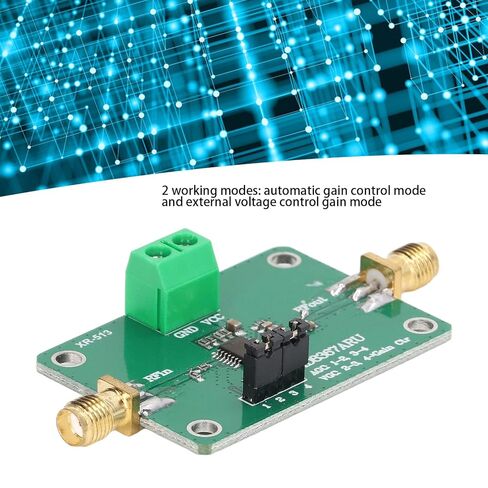

  • Automatic Gain Control Mode: The IF amplifier integrates squaring law detector, which can work in automatic gain control mode. Working Voltage: 2.7-5.5V. Working Current: 28mA. System Impedance: 50 ohms
  • External Voltage Controlled Gain Mode: The IF amplifier can be configured in conventional VGA mode for applied voltage control
  • 45dB Gain Control: The IF amplifier can achieve logarithmic linear gain control, and the gain control range is 45dB. AGC Range: 45dB. Maximum Gain: 35dB. Maximum Output: 5dBm
  • Easy to Use: This amplifier is small in size and light weight, easy to assemble, which is a replacement for old module on the machine

Description

Specification:
Item Type: IF Amplifier
Material: PCB
Working Voltage: 2.7-5.5V
Working Current: 28mA
Operating Frequency: 0.1-500MHz
Maximum Gain: 35dB
Maximum Output: 5dBm
AGC Range: 45dB
System Impedance: 50 ohms
Interface Form: SMA KE

packing list:
1 xIF Amplifier

Note:
Pay attention to the correct .
