R8 FMB27 7/16-20 Shank Face End Mill Arbor and 3.15"/80mm Cutting Diameter 6 Flute EMR 5R80-27-6T CNC Face End Milling Shell Cutter with 10Pcs RPMW1003 Round Carbide Inserts and T15 Wrench

KWD 25.500
Brand
BestParts
Category
Cutting Tools
– 1 +

Special Features

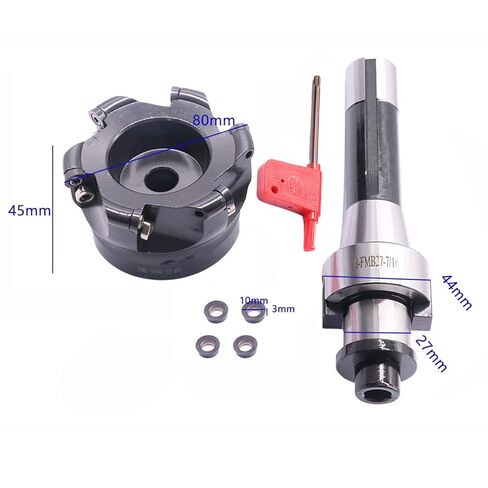

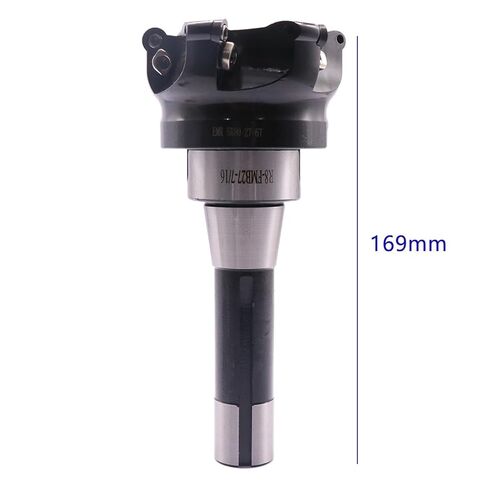

  • Set includes: 1 x R8 FMB27 Arbor, 1 x EMR 5R80-27-6T Cutter, 1 x T15 Wrench, 10 x RPMW1003 Carbide Inserts as pictured.
  • R8 FMB27 Arbor: 7/16-20 Draw Bar Threads, 27mm/1.06In Bore Diameter.
  • EMR 5R80-27-6T Face End Mill Cutter: 80mm/3.15in Cutting Diameter, 6 Flutes, 27mm/1.06In Bore Diameter.
  • RPMW1003 Carbide Insert: Blade diameter: 0.39" (10mm), Blade thickness: 0.125"(3.18mm). Cutting corner: 11 degrees, for steel with hardness below HRC40 degrees. Applicable to: forging steel, bearing steel, spring steel, die steel, 20CrMoTi, 40CrMo, A3 steel, 45# steel, Q235, stainless steel, etc.
  • Function: Machining planes, grooves, and cutting off workpieces on milling machines. Milling speed and processing efficiency are high, and the surface quality of the processing is also good. It is possible to add T parts with hard skin and hardened layers, which has obvious advantages in improving product quality and processing efficiency.
  • High Quality: Made of fine quality steel, good permeability,sturdiness and durability, resistance to multiple impacts,fine durability. Smooth surface, comfortable feeling, nice appearance.
  • Good Performance: Milling rotary tool is screw locking, the chip large space, good chip removal, edge can fit a variety of materials.
  • Widely Application: This shank face mill arbor set is designed for shoulder milling, face milling and slotting, mainly used for CNC machining centers, CNC engraving machines. It can also be installed on an ordinary milling machine to process some harder and less complex heat-treated materials.

Description

Specification:
Used for plate cutting, carbide insert used for steel meterial.
Body made of high quality steel, durable

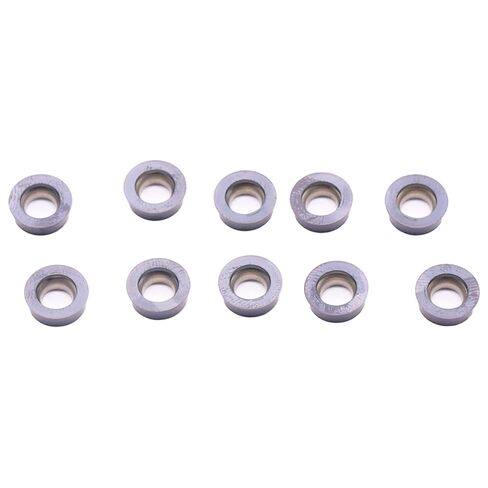

Carbide Insert
Material: cemented carbide
Model: RPMW1003

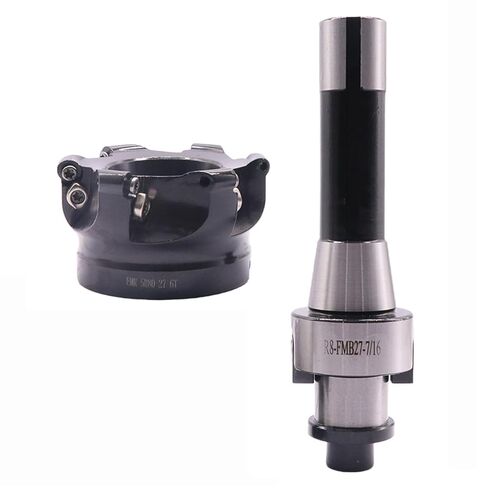

Face Mill Arbor
Model: R8-FMB27
Bore Diameter: 1.06In/27mm
Draw Bar Threads: 7/16-20

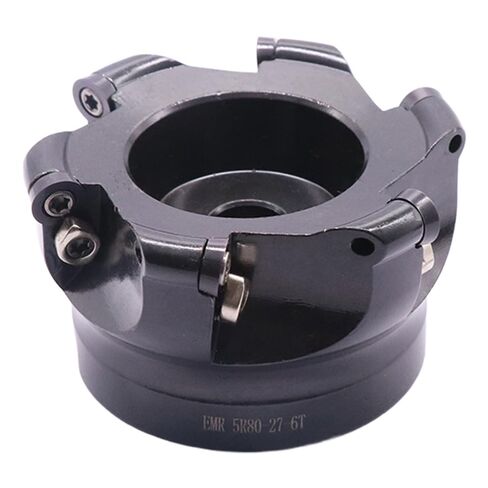

Milling Cutter
Model: EMR 5R80-27-6T
Flutes: 6 Flute
Cutting Diameter: 3.15in/80mm

Features:
EMR milling cutter, suitable for machining flat surface
indexable milling cutter, matching with standard RPMW1003 insert
Made of steel with high hardness and strength to ensure long service life
High vibration-absorbing performance, improve the surface finish of the workpiece
Set including R8 face mill arbor with 27mm bore for holding milling cutter
Set including 10pcs RPMW1003 inserts, great for shoulder milling, face milling and slotting, can fit a variety of materials

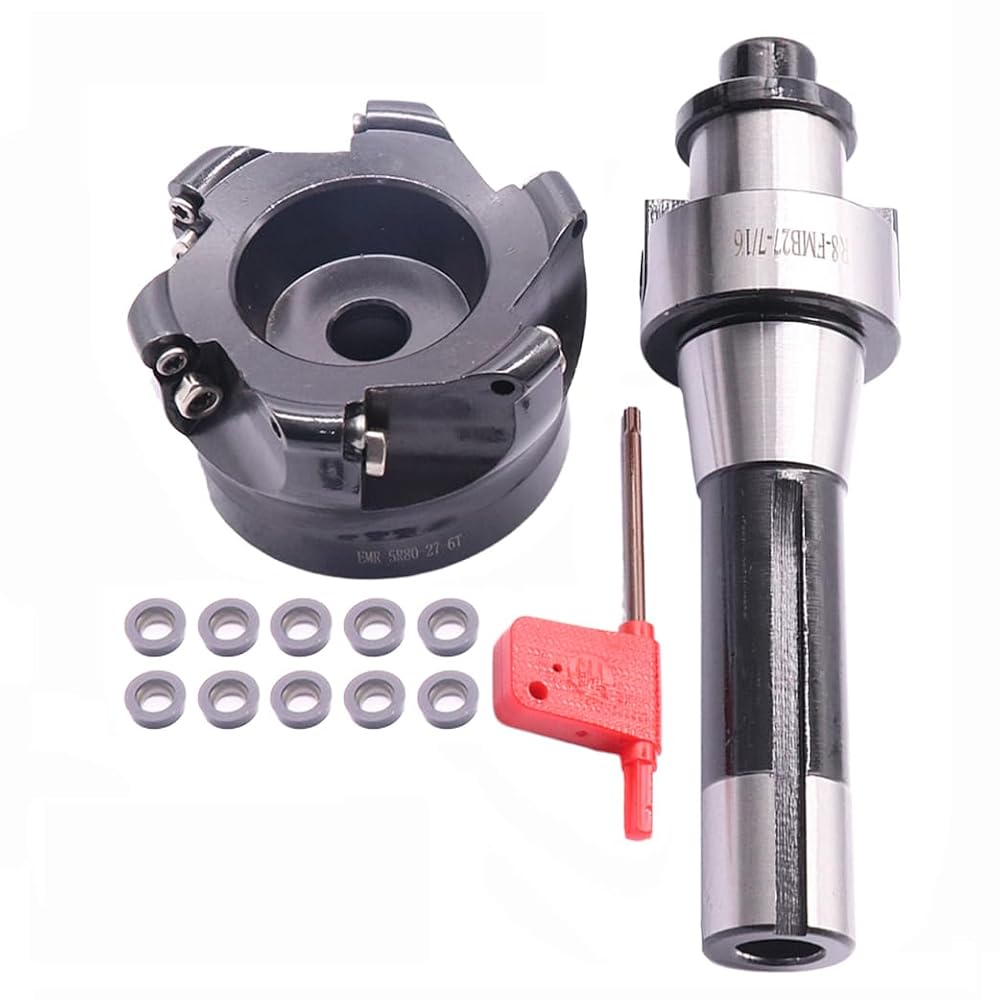

Package included:
1 x R8 FMB27 Arbor
1 x EMR 5R80-27-6T

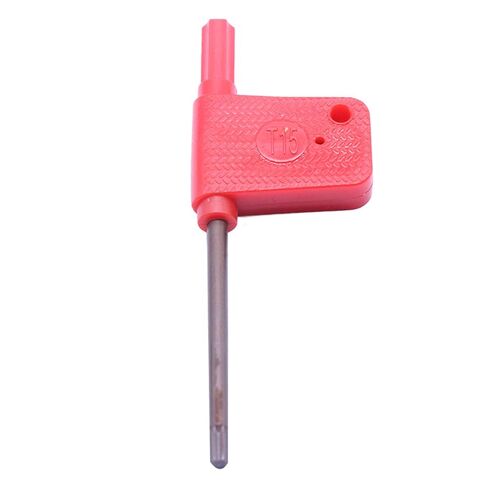

1 x T15 Wrench
10 x RPMW1003 Carbide Inserts as pictured
