Specification:

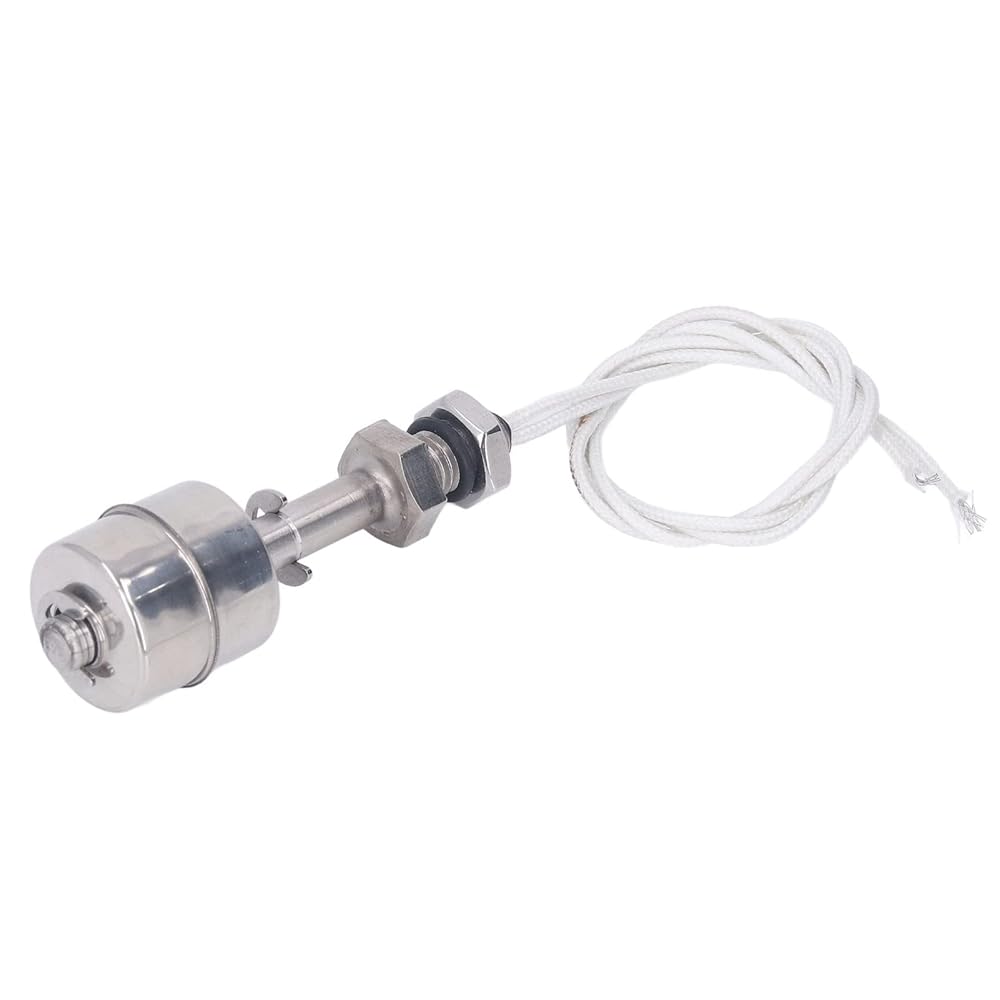

Item Type: Liquid Level Float Switch
Material: SUS304 SUS316

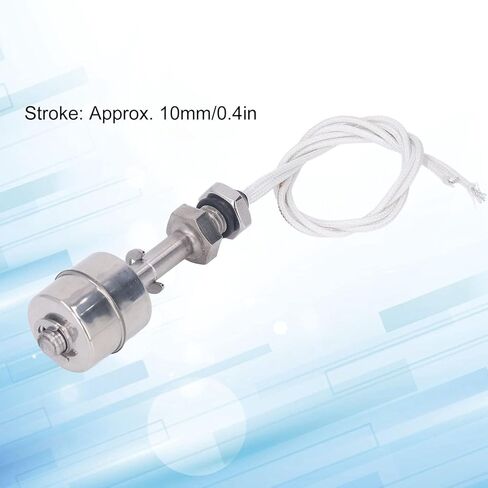

Stroke: Approx. 10mm/0.4in

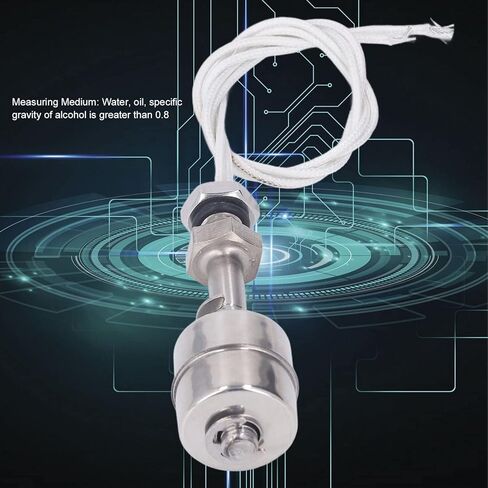

Measuring Medium: Water, oil, specific gravity of alcohol is greater than 0.8
Working Voltage: 0-220 (V)
Working Current: 0.5-1 (A)
Medium Temperature: -20℃ to 120℃
Operating Temperature: 0℃ to 120℃
Maximum Temperature Resistance: 120 (℃)
Working Pressure: 1 (Mpa)
Maximum Withstand Voltage: 5 (Mpa)
Maximum Power:
Low voltage: 10W
High Voltage: 50W
Maximum Switching Current:
Low voltage: 0.5A
High Voltage: 1.5A

Package List:
1 x Liquid Level Float Switch

Note:

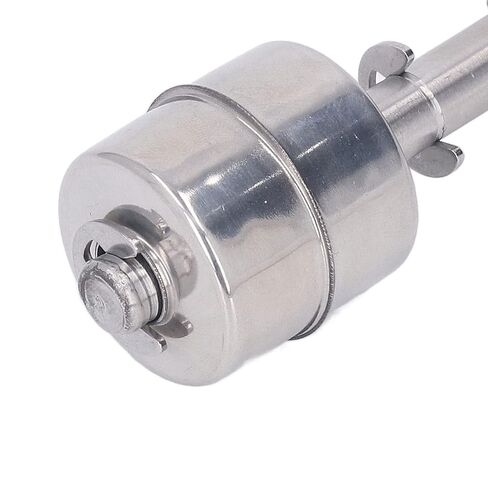

1. The float ball is made of all stainless steel 304, and the clamp spring is made of 316L.

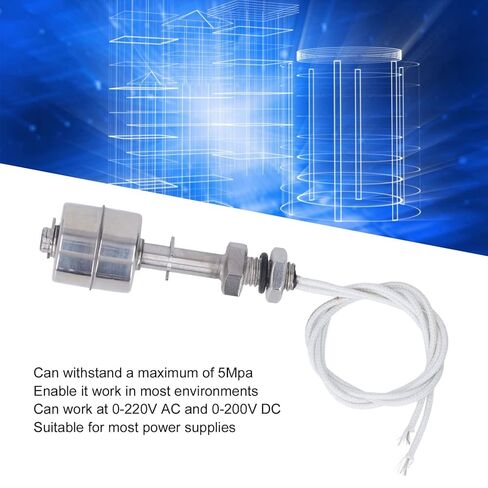

2. Low voltage means that the float switch can be used for 0‑110V DC voltage circuit. High voltage means that the float switch can be used for AC 0‑220V and DC 0‑200V lines.
3. High temperature resistance means that the float switch can withstand 120℃ for a long time.

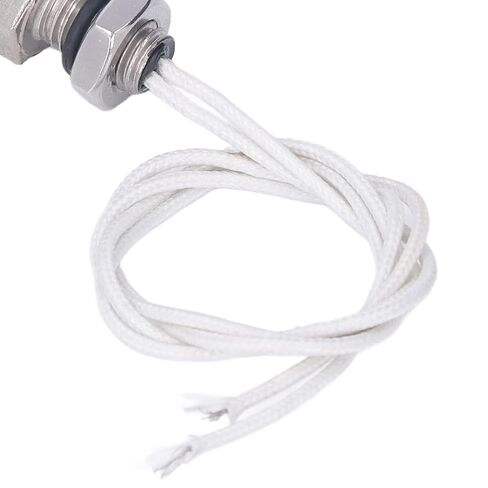

4. High temperature high voltage are white silicone high temperature wires, and low voltage are ordinary black wires.
5. Float switch cannot directly control solenoid valve or high power relay, AC contactor, etc. Add a small relay for conversion.

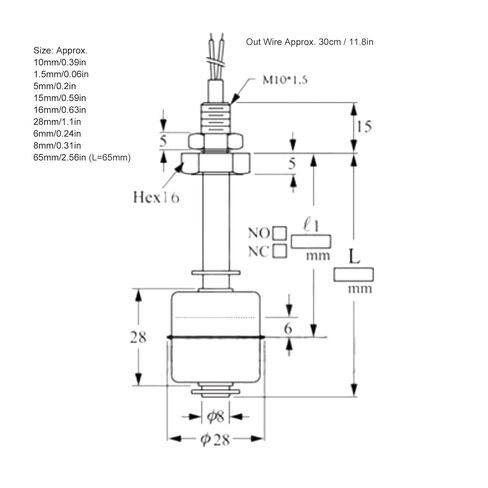

6. The float stroke is 10mm, that is, the control range is 10mm. If the control range is large, two combinations can be used, one long and one short.
