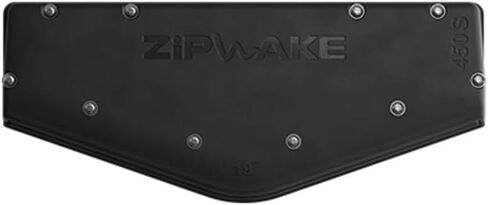

ZW2011482 Series-S V-Shaped Interceptor 450-S V13 with 10' Cable and Cable Covers for 13° Hull-V

KWD 320

Brand
Zipwake
Weight
3.2 kg
1 +

Special Features

  • True outboard mount, modular design and fast actuation
  • Integrated mounting plate and no corrosive materials
  • Thru-hull fitting options either above waterline or concealed behind interceptor
  • Submersible servo units are brushless 12-24V DC servo motor, high-precision positioning, calibration free, durable and accessible
  • Length: 17.72" (450mm)

Description

Series-S constitutes a product family of four straight and four V-shaped interceptors. This first-ever modular design made for mass production makes the interceptors durable, affordable and perfectly adapted to any planing or semi-planing boat between 6 m and 18 m (20-60ft). All components have been meticulously engineered to withstand impact and avoid water ingress, minimizing the risk of costly maintenance and downtime. Interceptor or blade actuation takes place by way of a calibration-free submersible electric servo within the interceptor unit. Its natural water cooling provides excellent working conditions for the brushless DC servo motor, which runs on 12-32 volts. The blade stroke takes 1.5 seconds, outperforming conventional trim tabs by at least a factor of 5. Installation is made easy with an integral mounting plate and the option of a concealed or above waterline, self-sealing, thru-hull cable fitting. Each interceptor comes with the thru hull cable fitting, cable covers and a practical drill template.
