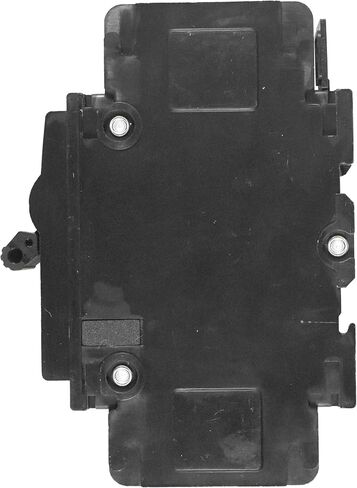

HQRP UL 489 Miniature Circuit Breaker, HCB1U-60C20/1 Series, 1 Pole Breaker, 120/240V AC, 20A

KWD 6.500
Brand
HQRP
Weight
173 g
– 1 +

Special Features

  • HQRP® UL 489 Miniature Circuit Breaker
  • Frame Class: 60; Tripping Curve: Type C
  • Current: 20A; Voltage: 120/240V AC
  • Rated Insulation Voltage (Vac): 1000; Rated Impulse Withstand Voltage kV): 6; Rated Short-circuit Current(kA): 10
  • Wire temperature rating of 60/75℃, Cu wire only
  • Circuit breaker mountable on standard 35mm DIN rails with optional feet for front-and-bottom mounting
  • Suitable for the protection of main circuit devices
  • 200 Days Warranty

Description

HCB1U-60C20/1 series miniature circuit breakers provide excellent over-current, short circuit protection and control in AC ON/OFF operating electrical systems, and can also be used for infrequent making and breaking.
Quantity: 1 Piece
Frame Class: 60
Tripping Curve: Type C
Rated Current: 20A
Rated Voltage: 120/240V AC
