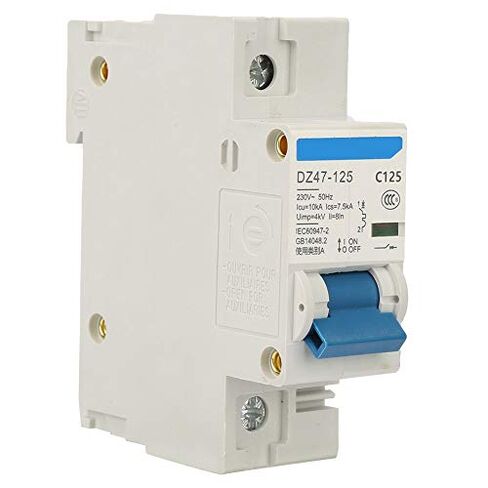

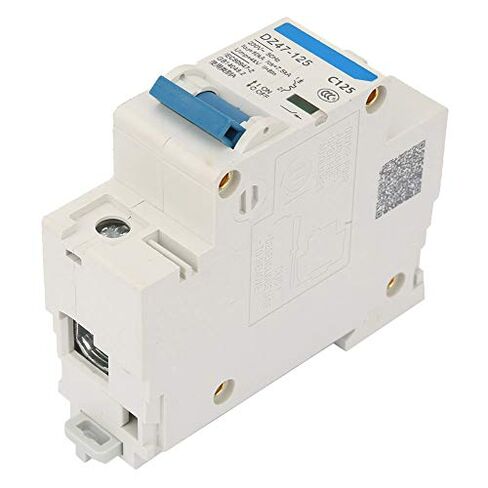

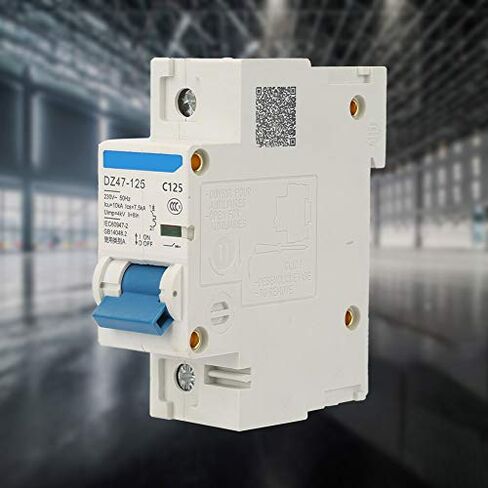

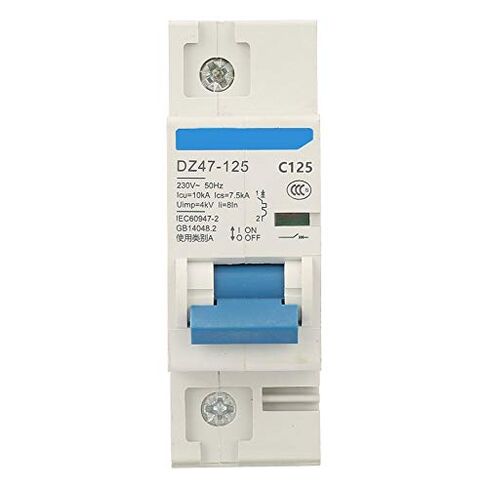

YWBL-WH Circuit Breaker DZ47-125 1P Current 30mA Leakage Air Switch 0.1S 7.5KA (125A)

KWD 6
Brand
YWBL-WH
– 1 +

Special Features

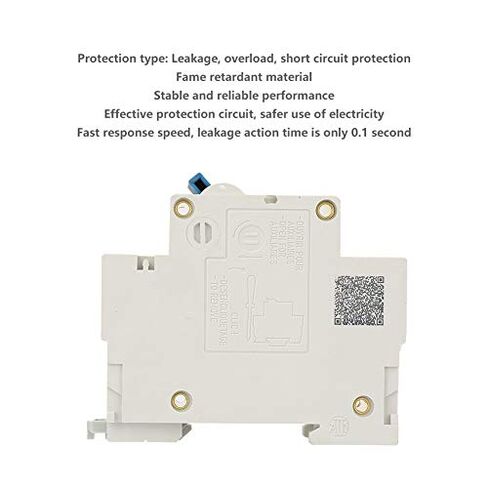

  • The response speed is fast and the leakage action time is only 0.1 second.
  • Leakage switch is a very important electrical equipment in low-voltage distribution network and power system. It integrates control and functions. The products are suitable for household decoration, engineering construction, rural network transformation and other projects.
  • The outer casing of the product is made of flame retardant material and is safer to use.
  • This switch support leakage, overload, short circuit , three modes.
  • The product is composed of high quality electronic components, with stable and performance.

Description

Specification:
Model: DZ47-125 1P
Breaking capacity: 7.5KA
Number of poles: 1P
Trip unit rated current: 80A; 100A; 125A(Optional)
material: Copper alloy
Rated voltage: 230V
Leakage current: 30mA
Leakage action time: 0.1S
Current shell frame: 125 (A)
Tripping method: Overcurrent release
type: Leakage, overload, short circuit
Application scenario: Terminal power distribution
Wiring method: Front wiring
3C rated voltage range: AC rated voltage 1500V and below
Structure type: Plastic case circuit breaker
Arc extinguishing medium: air type

Package list:
1 * Current Circuit Breaker

Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
