80599 Low Temp Limit Switch, Compatible with Vogelzang VG5770, VG5790, US Stove & USSC Bay Front 5660, Ashley AP5660L Pellet Stove, White, Limit Switch, Normally Open, OFF-NONE-ON

KWD 8
Brand
seacses
– 1 +

Special Features

  • 【Compatible with Models】80599 Low Temp Limit Switch is compatible with Vogelzang VG5770, VG5790 Pellet Stoves. 80599 Low Temp Limit Switch is also compatible with US Stove 5501S, 5560, 5660, 5660E, Bay Front 5660 Pellet Stoves. It can directly replace 80599.
  • 【Compatible with Models】80599 Low Temp Limit Switch is compatible with Ashley AP5660, AP5660L, AP5660PE, AP5710, AP5780, AP5790 Pellet Stoves. 80599 Low Temp Limit Switch is also compatible with King 5501S Pellet Stove.
  • 【High Quality Materials】The Low temp switch 80599 is made of high-quality stainless steel, ceramic and copper. It has the advantages of contact sensitivity, high insulation, high temperature resistance, wear resistance, stable working temperature and long service life. Greatly reduce the probability of Pellet Stoves failure due to temperature problems, reduce maintenance costs and interruption of trouble.
  • 【Easy to Install】Replacement can be easily completed for any DIY craftsman. At first, disconnect power to the unit, then remove the rear side or right side access panel, the switch is located on the back wall of the stove, above the room blower, remove the switch after removing the wires, then replace with a new switch and connect the wires, reinstall the access panel, and finally reconnect the power.
  • 【Please Note】F140-10F (Normally open, closes at 140 degrees Fahrenheit, reopens at 10 degrees Fahrenheit). 80599 does not normally fail without electrical surge, if the switch fails the reset button will no longer hold the switch in the normally open position. If this happens, it is a good idea to remove the controller and inspect the circuitry on both sides of the board for signs of power arcing or failure of the controller board components.

Description

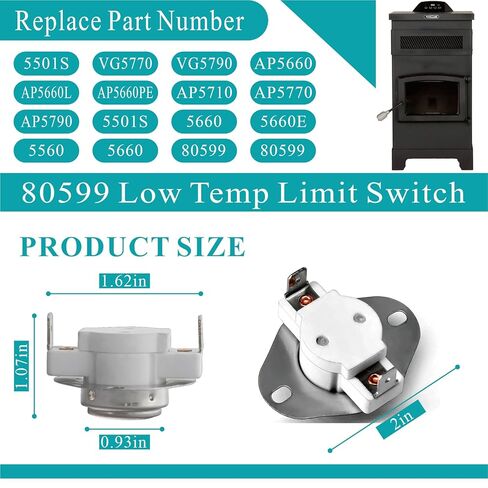

80599 Low Temp Limit Switch

80599 Low Temp Limit Switch is Compatible with King 5501S Pellet Stoves.

80599 Low Temp Limit Switch is Compatible with Vogelzang VG5770, VG5790 Pellet Stoves.

80599 Low Temp Limit Switch is Compatible with Ashley AP5660, AP5660L, AP5660PE, AP5710, AP5770, AP5790 Pellet Stoves.

80599 Low Temp Limit Switch is Compatible with US Stove Bay Front 5501S, 5660, 5660E, 5560 Pellet Stoves, Bay Front 5660 Pellet Stoves.

Installation steps

Step 1: Disconnect power to the unit.

Step 2: Remove the rear side or right side access panel.

Step 3: Remove the switch after removing the wires.

Step 4: Replace with a new switch and connect the wires.

Step 5: Reinstall the access panel, and finally reconnect the power.

(The switch is located on the back wall of the stove, above the room blower.)

Why Choose Us ?

①High Quality Materials

Made of high-quality stainless steel, ceramic and copper. It has the advantages of contact sensitivity, high insulation, high temperature resistance, wear

resistance, stable working temperature and long service life. You can buy it with confidence.

②Strict Quality Control

The 80599 Low Temp Limit Switch is professionally tested by our engineers. It is inspected by the quality control department in 3 processes before leaving

the factory.

③Easy Installation

No complicated installation steps are required, just replace the old product directly, plug and play and replacement can be easily accomplished in just a few

seconds without specialized tools, saving time and effort, ensuring safety.

④Efficient Service

We will provide high quality and professional service. We will respond to any of your needs within 12 hours.
