Features:
1.Wide voltage supply and anti-reverse connection.
2.Applicable to 5V-TTL signal dual signal, support common IC models in the market.
3.Multiple sub-control cascade design is applicable.
4.Used with full color controller, the output voltage is consistent with the input voltage.
5.Single-line LED driver chip can support 8 simultaneous outputs, and dual signals are 4 channels.

Specification:
Working voltage: DC5V~24V
Output:8 channels / 4 channels
Static power consumption: lass than 1W
Compatibale IC type: WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703, WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822,UCS1903, LPD6803, LPD8806, APA102

Note:
1.The amplifier cannot regulate the output voltage at the VCC.That means the output voltage of your power supply must be as same as the working voltage of LED lights.
2.If the lights need 5V input, please use a 5V power supply, don't use higher than 5V power supply.
3.The current through the amplifier is limited, when the consumption current is higher, you need to add power supply of the corresponding voltage additionally.

Package Includes:

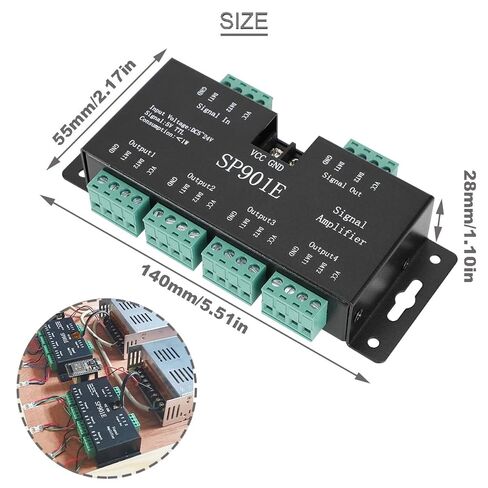

1 x SP901E Signal Amplifier
4 x SM 2.54 3 Pin male Connector
4 x SM 2.54 3 Pin female Connector
