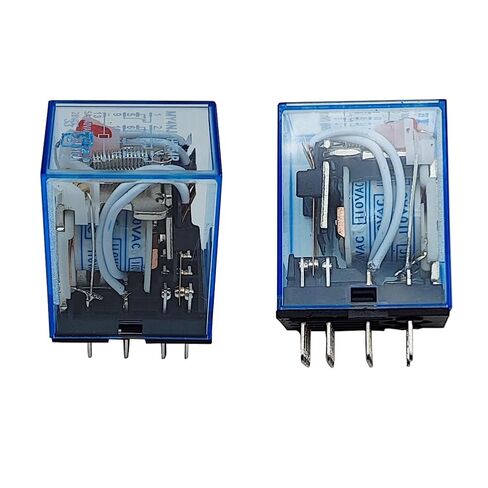

AC110V Coil Electromagnetic Power Relay 14 Pins 5A MY4NJ HH54P 4PDT with Socket Base Small Intermediate Relay (2 Pack)

KWD 3.500
– 1 +

Special Features

  • Small Intermediate Relay Model: MY4NJ, 14pins. Type : 4PDT (4NO 4NC)
  • With LED Indicator, DC Coil: green light, AC Coil: red light
  • Coil Voltage: AC 1100V, Rated Current: 5A, Rated frequency: 50Hz
  • PYF14A Plug-in Terminal Socket Base Installation Method: Rail or Screw(not included)
  • Can adjust automatically, protect and transform the electric circuit. Used widely in the remote control, communication, automatic control system, electronic equipment's, etc.

Description

Description:
Model: MY4NJ
Number of Terminals: 14 Pins
Size: 35 × 27 × 21mm
Weight: 35g
Coil Voltage: AC 110V
Rated Current: 5A
Rated frequency: 50Hz
Type : 4PDT ((4NO 4NC)
Pull-in voltage: DC: ≤75% (V), AC: ≤80%
Release voltage: DC: ≥10% (V), AC: ≥20%
Contact resistance: ≤50 (mΩ)
Insulation resistance: ≤100 (mΩ)
Action time: 20ms or less
Reset Time: 20ms or less
Working Frequency:
Mechanical 18000 cycles/hour
Electrical 18000 times/hour

Plug-in Terminal Socket Base
Socket Base Size: 76mm x 30mm x 29mm
Installation Method: Rail or Screw(not included)

Package Includes:
2pcs MY4NJ Coil Power Relay
2pcs Sockets Base
