APPLICATION:
This resettable fuse is widely used in DC power systems (12V to 28V, maximum DC voltage 28V), as main or branch breakers, marine yacht applications, automotive public transportation, RV systems, etc., which are for the protection of their low voltage equipment.

ADVANTAGES:

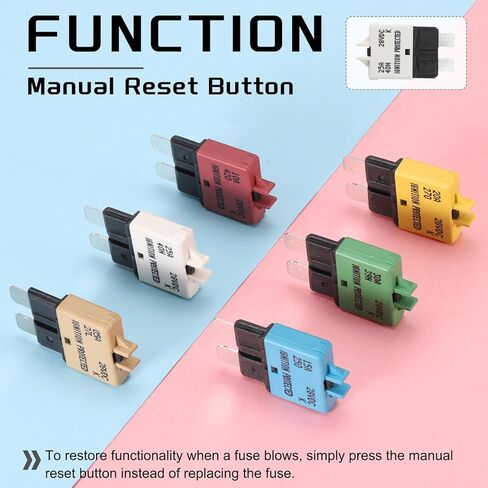

1.Manual Resettable Standard Fuses meeting UL 94V0 compliant thermoplastic, Tin-plated surface for enhanced durability and provide over-temperature and over-current protection. 2.There is a recovery button at the end of the fuse circuit breaker, which can be quickly resume by pressing it. There is no need to frequently replace the fuse, which effectively protects the device. 3.The manual fuse saver can eliminate faults and has a long service life. 4.The manual reset function allows you to immediately detect when the fuse is blown and needs manual operation to reset it, providing higher reliability

PACKAGE CONTENT:
Material:UL94 V-0 Thermoplastic, Tin-Plated Copper Alloy
Shape: Mini
Overall Dimensions: 29 x 20 x 6mm / 1.14 x 0.8 x 0.24 inch（LxWxT）
Pin Length and Pin Pitch: 9 x 8mm / 0.35 x 0.32 inch
Reset Mode: Manual
Voltage: 28V DC
Current: 25A
Color: White

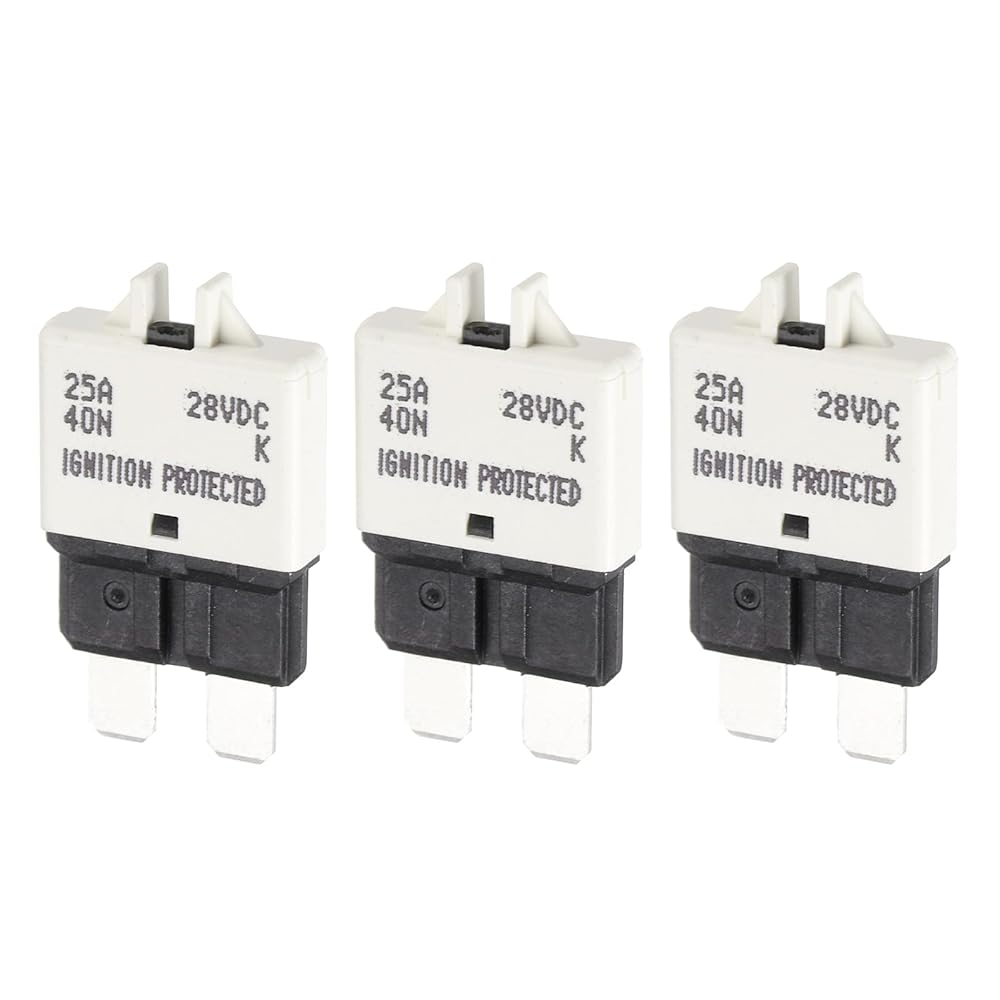

3 Pack of Mini Fuse Circuit Breaker

NOTE:
Please confirm the size of the circuit breaker before placing an order, and ensure your fuse box or cover has the appropriate space.
