Sur-Seal, Inc. Teadit 9000IR2500321GR2500 Spiral Wound Gasket With 321SS Inner Ring, 2-1/2" Pipe Size x 2500# x (321SS/FG) For Applications with High Temperature Variations and/or Pressure Variations, Turquoise Band with Gray Stripe

KWD 33.500
Brand
Lamons
Category
Seals & O-Rings
Weight
0.5 kg
– 1 +

Special Features

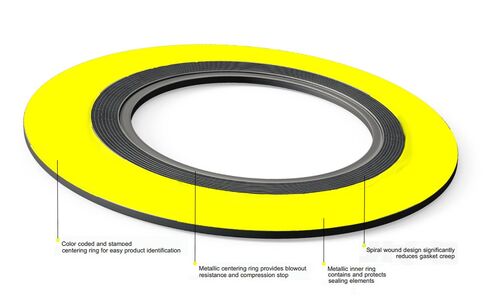

  • ASME B16.20 Gaskets for ASME B16.5 Flanges; Class 150; Inner ring protects sealing element from process media attack
  • Centering ring accurately locates the gasket on the flange face, provides additional radial strength, and acts as a compression limiter
  • Spiral winding (sealing element) consists of metal and soft filler material
  • Temperature range (F) : -320 to 850 Degrees
  • Durable; easy installation and removal

Description

Spiral Wound Gasket with 321SS Inner Ring, 2-1/2" pipe size, 2500# class flange, 321SS windings with a FG Filler
