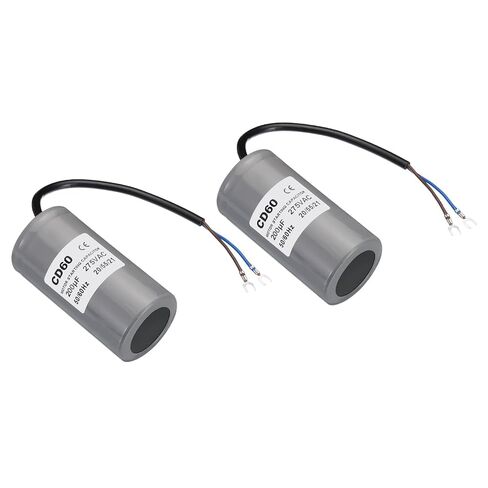

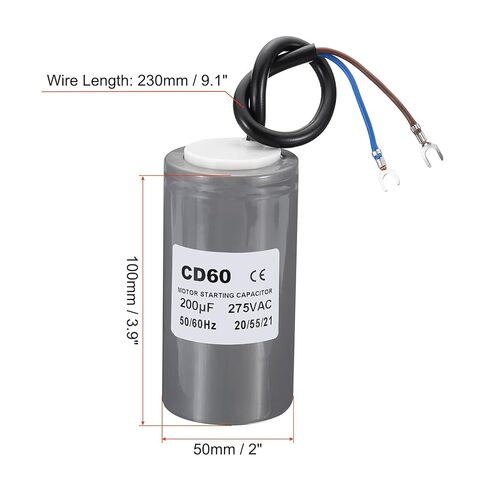

Tolerance: ±20%; Rated Capacity: 200uF; Rated Voltage: 275V; Climatic Category: 20/55/21; Body Size: 100 x 50 mm / 3.9 x 2 inch (H*D); Wire Length: 230mm / 9.1 inch
Advantage: This CD60 run capacitor has characteristics of small volume, lightweight, low loss, strong overload ability, excellent electrical performance, reliable insulation performance, and current with good impact resistance.
Instruction: Capacitance is not divided into positive and negative stages and can be connected at will. High stability, good heat dissipation effect under high temperature.
Application: The CD60 running capacitor is suitable for the start-up of single-phase motors with frequency of 50Hz and 60Hz, such as air compressors, pressure washers, air conditioners, washing machines, motors, generators, HVAC, fans, etc.
Note: Please pay attention not to over current or over voltage when using.
