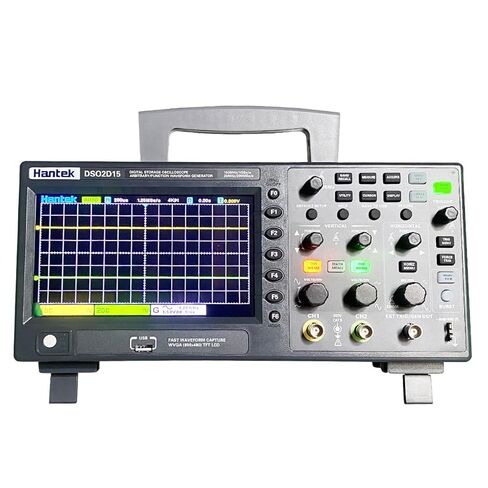

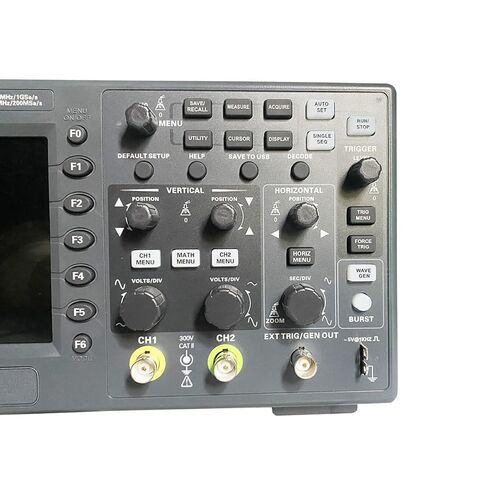

Hantek DSO2D15 Digital Storage Lab Oscilloscope USB 150MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with 1CH 25MHz Waveform Generator

Features:
1. 2 channels which are respectively controlled by independent knobs
2. 150MHZ analog channel bandwidth
3. Sampling rate up to 1 GSa/s
4. 8M memory depth
5. Vertical range 2mV/div ~ 10V/div
6. Built-in 1 CH 25MHz waveform generator
7. Vertical resolution: 8bit
8. Trigger: Edge, Pulse,Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
9. BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
10. Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures
11. A 3-digit digital voltage meter and a 6-digit hardware frequency indicator
12. 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.
13. 2 sets of digital voltmeters
14. Support threshold testing, free measurements within the screen
15. Abundant SCPI remote command control
16. USB Host/Device

Specification:
Bandwidth: 150MHz
Channels: 2
Sample rate: 1GSa/s (single channel) 500MSa/s (two channels)

-----Arbitrary waveform generator-----
Channel: 1
Sample rate: 200MSa/s
Vertical resolution: 12 bits
Maximum frequency: 25 MHz
Standard waveforms: sine, square, ramp,Exp, noise, DC
Arbitrary waveform: Arb1, Arb2, Arb3, Arb4

-----General specifications:-----
Display type: 7'' diagonal TFT liquid crystal
Display resolution: 800 (horizontal)*480 (vertical) pixels
Display colour: 16 million colours (24 bits true colour)
Standard interface: USB Host，USB Device
Power supply: 100-120VACRMS(±10%), 45Hzto 440Hz, CATⅡ
120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ
Operating temperature: 0~50 °C (32~122 °F)
Storage temperature: -40~+71 °C (-40~159.8 °F)

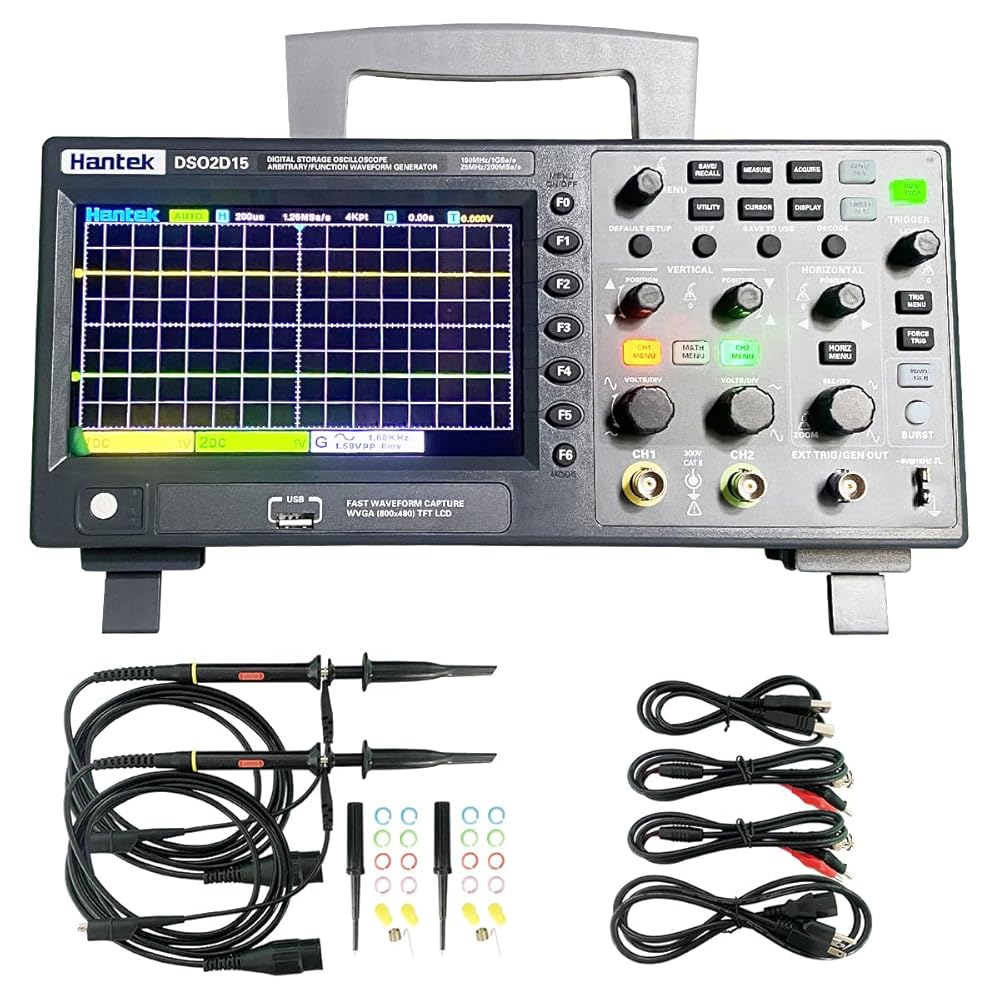

Package Including:
1 x Oscilloscope
1 x USB Cable
2 x 150MHz Probe(PP-150B)
2 x BNC to Alligator Clip Cable
1 x US Standard Power Cable
