Module Name: Dual H-Bridge Motor Driver Module
Module Weight: 30g / 1.06oz
Module Dimensions: 43mm (L) × 43mm (W) × 27mm (H) / 1.69in × 1.69in × 1.06in
Working Mode: H-Bridge Drive (Dual Channel)
Main Control Chip: L298N

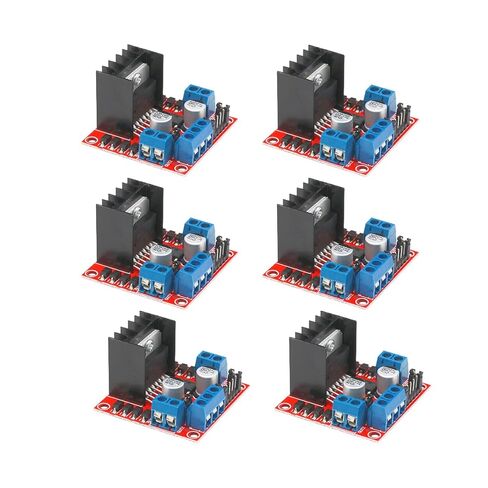

Package Includes: 6PCS Motor Driver Modules
Logic Voltage: 5V
Drive Voltage: 5V-35V
Logic Current: 0mA-36mA
Drive Current: 2A (MAX per bridge)
Storage Temperature: -20℃ to +135℃
Maximum Power: 25W
Notes:
Typical Application: When the drive voltage is between 7V-12V, the onboard 5V logic power can be used. After using the onboard 5V supply, do not input voltage into the +5V interface, but you can output 5V for external use.
High Voltage Drive for Unconventional Applications: When the drive voltage is above 12V and less than or equal to 24V (the manual suggests supporting up to 35V, but based on usage experience, the L298N conservatively supports a maximum voltage of 24V), for example, when driving a motor rated at 18V, first remove the onboard 5V output to enable the jumper cap, then provide 5V voltage externally to the 5V output port to create a control signal at 5V. When this signal is valid and the power supply to the motor driver module is normal, the module will output current; otherwise, even if the power supply is normal, there will be no current to the motor. The voltage powers the internal logic circuit of the L298N.
