Test before investing in expensive lighting hardware. The FK201 features 10 of the most commonly recommended Machine Vision Filters for testing in the UV (ultraviolet), VIS (visible) and NIR (near-infrared). It includes an enhanced UV filter, three IR (infrared) filters, a high-contrast linear Polarizer Filter, high-temperature-rated Polarizer Film, Professional Optics Cleaning Solution and storage for additional filters.
The FK201 Filter Kit allows you to test before investing in lighting hardware, control the variability of ambient light, evaluate glare reduction and solve applications quickly.

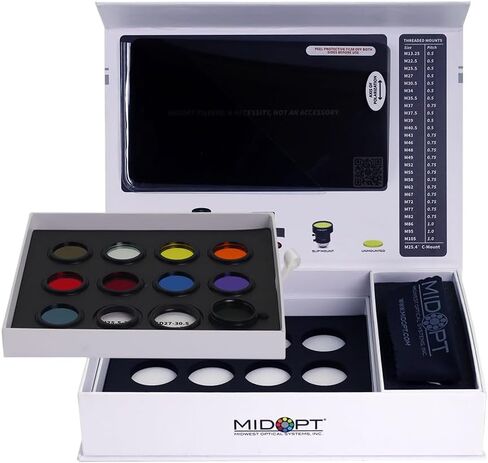

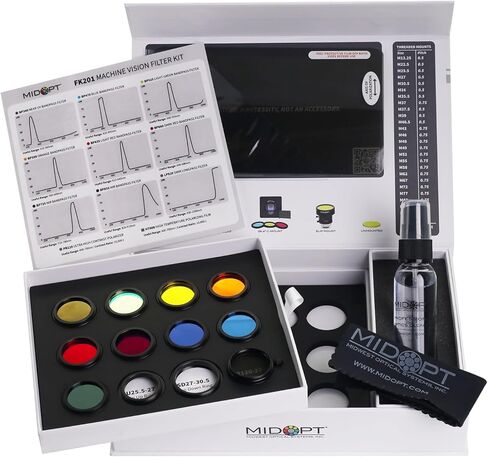

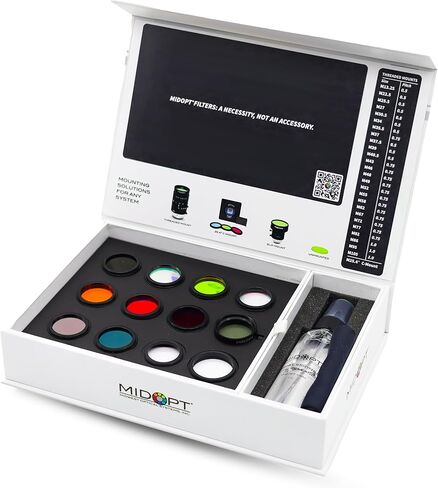

Kit Contents: 10 most recommended UV, VIS and NIR Machine Vision Filters
Filters with 27mm threaded mounts
Step-up and step-down rings to fit M25.5 and M30.5 lenses
Polarizing film for the light source
Professional optics cleaning solution and microfiber cleaning cloth
Compact, impact- and static-resistant case
Soft foam filter storage with space for 12 additional filters
The filters include: BP340-27 Near-UV Bandpass Filter, BP470-27 Blue Bandpass Filter, BP525-27 Light Green Bandpass Filter, BP590-27 Orange Bandpass Filter, BP635-27 Light Red Bandpass Filter, BP660-27 Dark Red Bandpass Filter, BP735-27 Near-IR Bandpass Filter, BP850 Near-IR Bandpass Filter, LP920-27 VIS Block Short-Wave Infrared Longpass Filter, PR120-27 Ultra High Contrast Linear Polarizer, HT008 High Temperature Linear Polarizing Film .008”, SU25.5-27 Step-Up Adapter, and SD30.5-27 Step Down Adapter
All MidOpt Bandpass Filters are uniquely designed with StablEDGE technology to reduce angular dependency while maintaining a s table, high-transmission passband. Traditional Bandpass Filters are highly sensitive to the angle at which light strikes and don't usually perform well at wide or shallow angles of incidence.
