This kit from SpeedyFPV meets the demanding needs of today's FPV racing drones, featuring 30A ESCs, a power distribution system, and BR2212 motors.
Everything you need to build an FPV racing drone drivetrain, this kit is great for beginners and seasoned drone pilots alike. Add FPV components and your choice of flight controller and receiver to finish the build!
The lightweight, sleek design paired with powerful ESCs and motors offers excellent performance and handling. This model is sure to excite any flyer with an exceptional thrust-to-weight ratio.
Q450 Frame with Integrated PDB Specifications:
Power Distribution: Yes
Color: Black / Red
Wheelbase: 17.7in/450mm
Weight: 248g

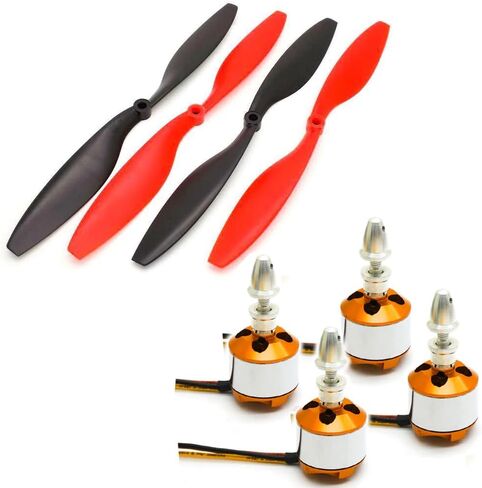

BR2212 1000KV Brushless Motors Specifications:
KV: 1000
Operating Voltage: 2-4S
Weight: 52g
Recommended Prop: 1045
Load Current (@11.1V): 15A
Pull (@11.1V): 885g
Efficiency (@11.1V): 5.1 g/w
F4 NOXE V3 F411 Flight Controller with OSD Specifications: Specifications:
Model: F4 NOXE V3
Main control (MCU): STM32F411CEU6/100 MHz
Sensor: BMI 270/Gyro/Accel
Video Overlay (OSD): AT7456E
Input voltage: Input voltage: 2S-6S (7.4V-26V)
5V-BEC: 5V/2.5A ± 0.1V
10V-BEC: 10V/2A+0.1V
Compatible Receivers (receivers): ELRs (CRSF), TBS (CRSF), SBU, IBU, DS M2, DS MX
HD interface: yes
UART: UART 1, UART 2
LIC: IIC1
LED strip: yes
Buzzer (buzzer): support 5V active
ESC signal (ESC signal): PWM, Oneshot125, Oneshot42, Multishot,
Dail 150, Dail 300, Dail 600
USB: Micro USB
Current terminal] (current port): Yes
Voltage sensor (voltage sensor): Yes
Dfu button (dfu button): Yes
Firmware (Firmware): Betaflight_4.3.0 JHEF 411.HEX
Size: 27*27*5mm
Mounting hole: 20*
