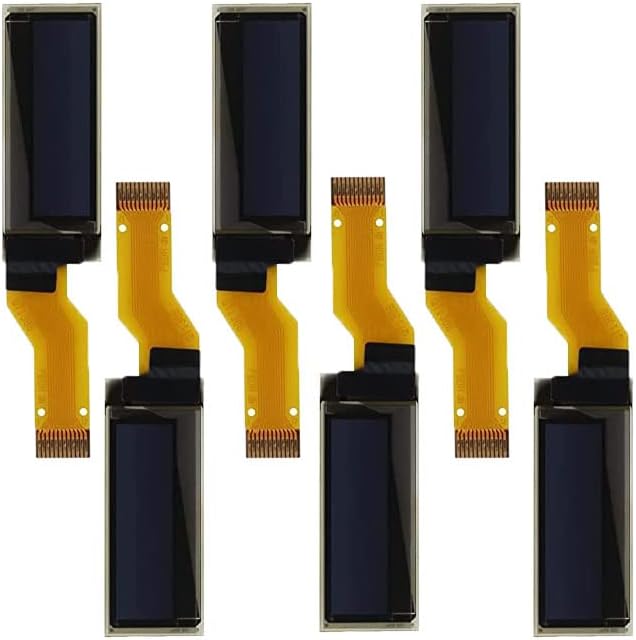

6PCS OLED LCD Display Module, 0.91" 4 Wire SPI Serial OLED Screen Driver,128x32 3.3V ~ 4.2V for Ledger Nano S

KWD 8.500
– 1 +

Special Features

  • 【Display performance】The 0.91 oled I2c display,Blue display color,the display performance is better than the traditional LCD display, also lower consumption，no backlight required, self-illumination.
  • 【OLED Resolution】 128x32，3.3 ~ 4.2V power supply; Operating temperature: -40 ~ 80 ℃，Display controller: SSD1306, Signal interface: 4 wire SPI Pitch 4-pin，High Contrast Ratio (10,000:1)
  • 【OLED Benefits】 Compact design makes it easy to carry anywhere.Thinner & Lighter & Durable，Free Viewing Angle，Fast Response Time (≤15μs).
  • 【Applicable To】 Such as industrial POS & Server，USB Key，Card Reader and Communication Router，Set-Top Box Mobile Phone，Most Products from Any Segment.
  • 【Nano S】There are two different versions for the displays that use on Nano S, please open the housing and check the FPC (flex cable) width before purchasing.

Description

Features:
OLED display, no need backlight, self-illumination.

The display performance is better than the traditional LCD display, also lower consumption.

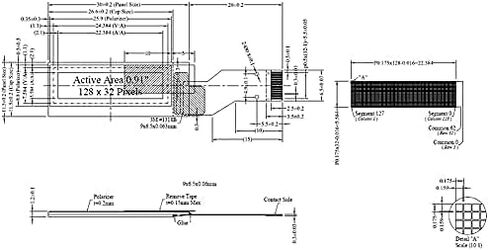

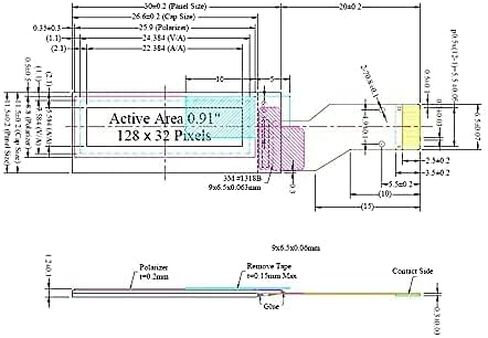

Specifications:
Diagonal Screen Size:0.91inch
Module Construction:COG
Number of Pixels:128X32
Active Area:22.384x5.584mm
Panel Size:30x11.5x1.2mm
Pins:12
Drive IC:SSD1306
Interface:I2C

OLED Applications:
Can be applied to Card Reader,USB Key,Router,Set-Top Box ,Car Audio,Timer,Glucose Meter,Thermometer ,Remote Controller, Digital Camera, Game Machine, E-Cigarette,etc.

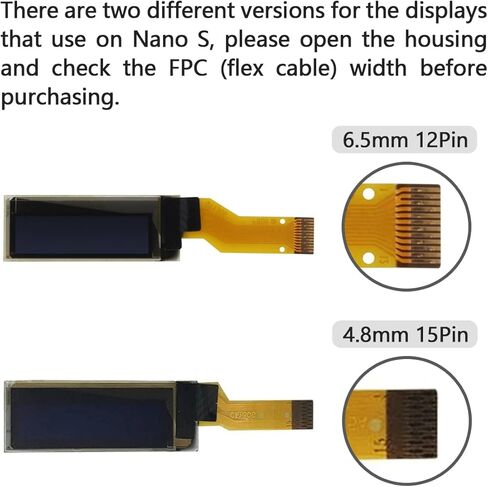

Nano S：There are two different versions for the displays that use on Nano S, please open the housing and check the FPC (flex cable) width before purchasing.
