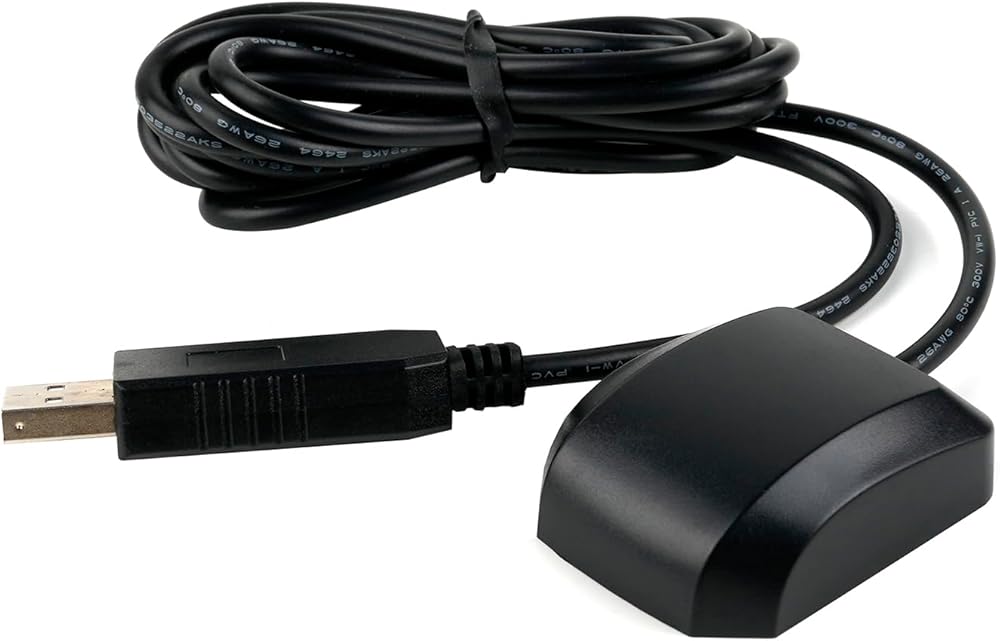

DIYmall USB G-mouse GPS Module M10050 CH340 USB to TTL GNSS Receiver Positioning Module for Laptop PC Car Marine Navigation

Product description:
The module adopts M10 positioning chip, which is a G-MOUSE that can track the satellite signals of up to four GNSS constellations at the same time, with low power consumption and high sensitivity. It is able to locate itself quickly and accurately in the city, canyon, under the elevated area and other places with weak signals, as well as any position inside the car. It makes the module can be widely used in car monitoring, bus stop announcement, car navigation, boat navigation, laptop navigation and other products.

Chip Characteristics
Chip: UBX-M10050-KB
Frequency: BeiDou B1I/B1C; GPS L1 C/A; QZSS L1 C/A/S; GLONASS L10F; Galileo E1B/C; SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Baud rate: 4800bps-921600bps(default 38400bps)

Sensitivity
Tracking: -167dBm
Capture: -160dBm
Cold Start: -148dBm

Start-up time
Cold Start: Average 26 seconds
Warm Start: Average 24 seconds
Hot Start: Average 1 second

Accuracy
Horizontal Accuracy: 1.5 meter CEP
Time Accuracy: 30 ns

Operating Limit

Maximum height: 80000 meter
Maximum speed: 500 m/s
Maximum acceleration: ≦ 4G

Output Data
Output level: USB level
Output protocol: NMEA0183 Standard protocol (can be set to specify output statements)
Update frequency: 1Hz -10Hz（default 1Hz）

Physical Characteristics

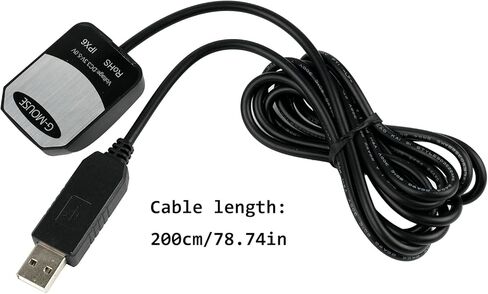

Dimension: 38 x 49 x 16 mm, Cable length 2 meter
Weight: 108g
Connector: Standard USB port

Operating environment
Operating Temperature: -40℃ to 85℃
Storage Temperature: -40℃ to 85℃

Package includes:
1 x USB G-MOUSE USB GPS Module (magnetic base)
1 x 3M-adhesive
