Product Description:

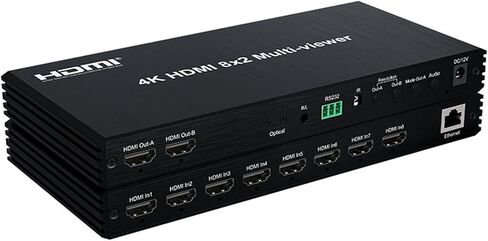

This unit is a multi-viewer with matrix function,It supports the subtitle display function and has a variety of video segmentation, seamless switching 8 HD input signal synchronously,Supports up to 8 HDMI signal source input and the maximum output of 4K@60Hz. Plug and play and simple operate, often used in conference rooms,teaching, games and other HDMI signal source display places.
Features:
* Support 8 HDMI inputs, 2 HDMI output;
* Support the dynamic display of subtitles, Pop-up mode is from left to right or top to bottom, the subtitles can be scaled;
* Support PIP function, mode from left to right or top to bottom, scalable;
* Support seamless switching;
* Support stereo 3.5 headphone output and optical fiber audio output;
* Support 4 control modes: button, remote , RS232 and network port control.
Specifications:
Input resolution ：the highest support 1080P/60Hz
Output resolution： the highest support 4K/60Hz
Audio format ：Stereo
Input and output cable distance ：1080P/60Hz≤15M AWG26 HDMI standard cable
Max bandwidth ：600MHz
Max baud rate ： 6x3Gbps
Max working current ：800mA
Power adapter format ： Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A
Operating temperature range： (-15℃to +55℃)
Dimension (L x W x H)：approx. 226x113x25 (mm)
Weight：approx. 520g
Package Accessories :
1 x 4K HDMI 8x2 multi-viewer
1 x 12V/1A power adapter
1 x Remote control without battery
1 x User manual
Remark:
output B only supports single display1/2/3--8 or copy the current output A, does not support displays multi-viewer independently.
