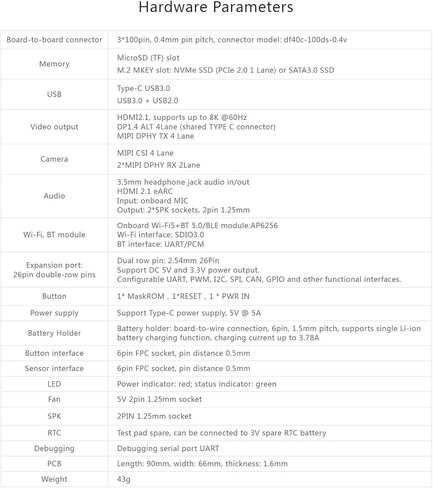

Hardware Parameters
Board-to-board connector: 3*100pin, 0.4mm pin pitch, connector model: df40c-100ds-0.4v
Memory: MicroSD (TF) slot
M.2 MKEY slot: NVMe SSD (PCIe 2.0 1 Lane) or SATA3.0 SSD

USB: Type-C USB3.0
USB3.0 + USB2.0
Video output: HDMI2.1, supports up to 8K @60Hz
DP1.4 ALT 4Lane (shared TYPE C connector)
MIPI DPHY TX 4 Lane

Camera: MIPI CSI 4 Lane
2*MIPI DPHY RX 2Lane
Audio: 3.5mm headphone jack audio in/out
HDMI 2.1 eARC
Input: onboard MIC
Output: 2*SPK sockets, 2pin 1.25mm

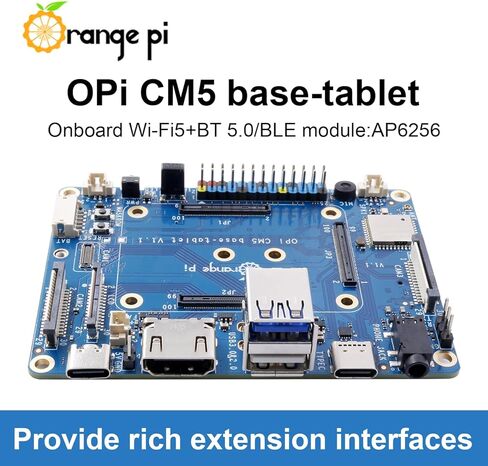

Wi-Fi, BT module: Onboard Wi-Fi5+BT 5.0/BLE module:AP6256
Wi-Fi interface: SDIO3.0
BT interface: UART/PCM

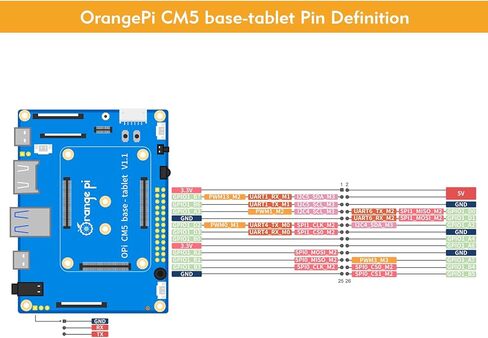

Expansion port - 26pin double-row pins: Dual row pin: 2.54mm 26Pin
Support DC 5V and 3.3V power output.
Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
Button: 1* MaskROM，1*RESET，1 * PWR IN
Power supply: Support Type-C power supply, 5V @ 5A

Battery Holder: Battery holder: board-to-wire connection, 6pin, 1.5mm pitch, supports single Li-ion battery charging function, charging current up to 3.78A

Button interface: 6pin FPC socket, pin distance 0.5mm
Sensor interface: 6pin FPC socket, pin distance 0.5mm
LED: Power indicator: red; status indicator: green
Fan: 5V 2pin 1.25mm socket
SPK: 2PIN 1.25mm socket
RTC: Test pad spare, can be connected to 3V spare RTC battery
Debugging: Debugging serial port UART
PCB: Length: 90mm, width: 66mm, thickness: 1.6mm
Weight: 43g
