5 Pack 0.96 inch OLED IIC Display Module 128x64 Pixel Mini Self-Luminous Display Screen Board for Arduino Projects Raspberry Pi with Wire(White)

Special Features

Size: 0.96 inches, Resolution: 128 x 64;Viewing angle:>160°;Supported voltage: 3.3V-5V DC;Power consumption during normal operation: 0.04W;Full screen illumination: 0.08W;Color:White

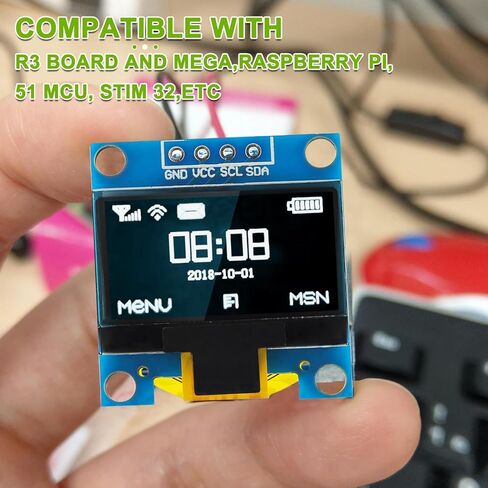

Embedded driver IC: SSD1306;Communication: I2C/IC interface, only requires two I/O ports, compatible with R3 board and Arduino Mega, Raspberry Pi, 51 MCU, STIM 32, MMDVM, Pi Star, etc

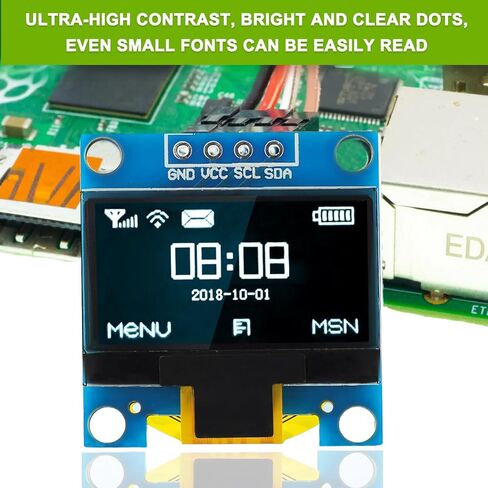

No backlight required, each pixel emits light independently. It has ultra-high contrast, high resolution, bright and clear dots, making it easy to read even in small fonts
Graphics and text information can be directly displayed on microcontroller projects, and OLED controllers do not have embedded fonts. Users can create fonts through font generation software
Equipped with 20 DuPont wires (10 male-female and 10 female) to increase convenience

Description

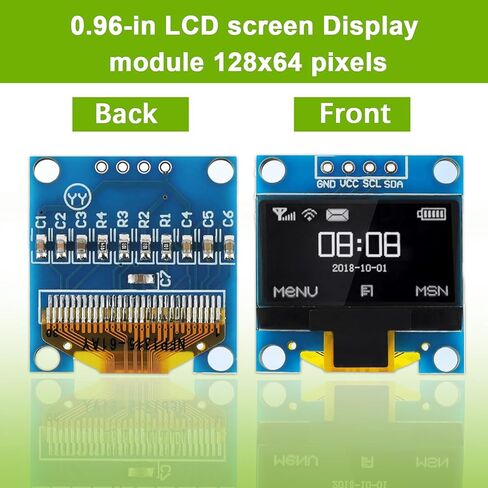

EPLZON 0.96 inch OLED IIC Display Module 128x64 Pixel Mini Self-Luminous Display Screen Board

Applications:
MP3, MP4, watch,Head-mounted displays,Meters and other intelligent instruments. Design any pretty patterns for your beloved electronic devices!

Specifications：
Module interface:1IC,4PIN

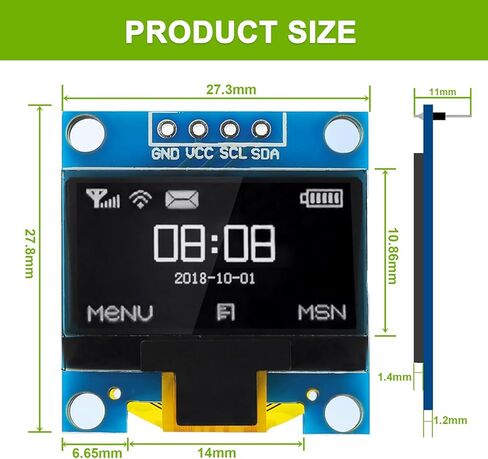

Effective display area:21.74x10.86(mm)
Module size:27.3x27.8(mm)
Field of View:>160°

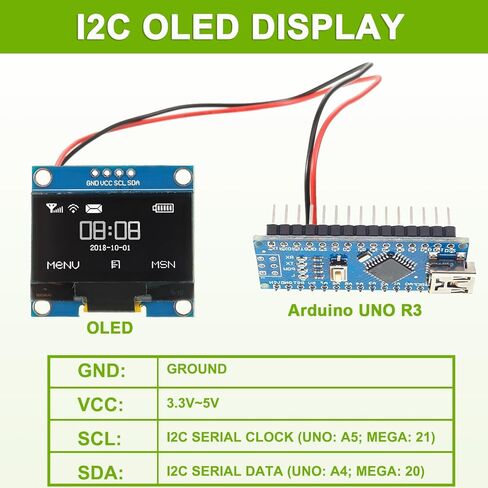

Pin Definition:GND,VCC,SCL,SDA
Voltage:3.3 V or 5V DC
Working Temperature:-20~60 degree
High Resolution:128 x 64 Pixels
Driver IC:SSD1306 Displya
Display Type: OLED (Organic Light Emitting Diode
Energy Consumption (Normally): 0.06w
Working Temperature: -20°C to 60°C
Drive Duty: 1/64 Duty

Package include:
5PCS * 0.96 Inch Disyplay Module
10PCS* Female to Female Dupont Wire
10PCS* Male to Female Dupont Wire
