1.1.3" LCD Display Module For Raspberry Pi Pico
Embedded ST7789 Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

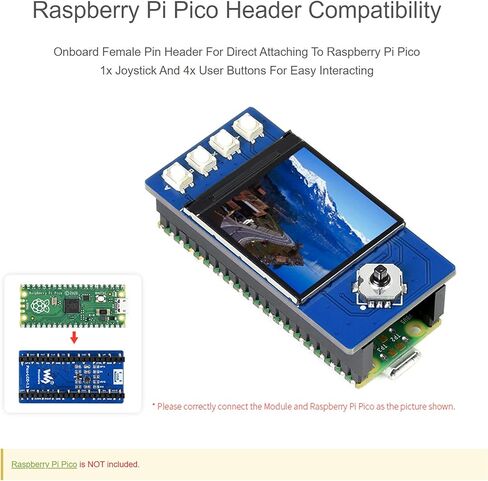

2.Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
1x Joystick And 4x User Buttons For Easy Interacting

Specifications
Operating voltage: 2.6~5.5V
Resolution: 240×240 pixels
Communication interface: 4-wire SPI
Display size: 23.40 × 23.40mm
Display panel: IPS
Pixel size: 0.0975 × 0.0975mm
Driver: ST7789
Dimensions 52.00 × 26.50mm

LCD and the controller
The ST7789VW is a single-chip controller/driver for 262K-color, graphic type TFT-LCD. It consists of 240 source line and 320 gate line driving circuits. The
resolution of this LCD is 240(H)RGB x 240(V), it supports horizontal mode and vertical mode, and it doesn't use all the RAM of the controller.
This LCD accepts 8-bits/9-bits/16-bits/18-bits parallel interface, that are RGB444, RGB565, RGB666. The color format used in demo codes is RGB565.
This LCD uses a 4-line SPI interface for reducing GPIO and fast speed.LCD

Package Content
Pico-LCD-1.3 x1

Note
Raspberry Pi Pico is NOT included.
Development Resources is provided , please contact us if you have any problem .
