Waterproof RFID Access Control System Kit WiFi Tuya Access Controller with 350Lbs Force Electric Manetic Door Lock Full Set

KWD 23
Brand
Yitoo
Weight
1.6 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

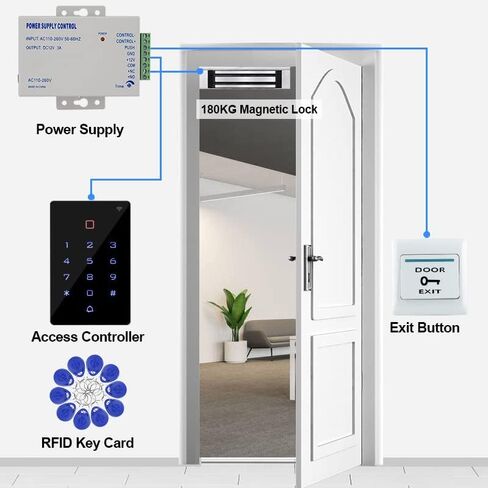

  • ✅This is a full set of access control system kit, including a access controller, 12VDC power supply, electric magnetic lock and a switch button, suitable for door entry systems of appartment, offices, factories, hotel, family house, school, etc.
  • ✅This access controller supports to pair with Tuya APP by WIFI, which enables you to remotely lock and unlock your door from anywhere in the world. Also, you can share control with your families and friends, and click reminder information to view logs.
  • ✅Full programming from the keypad, support add/delete cards, set password, etc. Doesn't need to connect on the computer, can work alone. Support to open door by password, RFID card, password+RFID cards, 2000 user capacity.
  • ✅180kg/350lbs holding force electromagnetic lock offers reliable performance. Fail-Safe mode, unlocked when power is removed. Suitable for wooden, glass, metal, security door.
  • ✅An exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.

Description

Access Controller Keypad:
Capacity: 2000 user
Material: ABS plastic
Working Frequency: 125KHz
Card reading type: support EM compatible card
Card reading distance: 0-5CM
Open Door Method: Card, 4 digits PIN, Card + PIN, Tuya APP remote unlock
Can set master card: Yes
Waterproof Level: IP68, suitable for outdoor use
Doorbell Interface: supports external wired doorbell
Wiegand Signal: Wiegand 26/34 bits input/output, supports external card reader
Backlight: with blue backlight, can work normally even at night or in dark envoriment.
Built-in Buzzer: Yes (Warm Tip: The backlight and buzzer can't be turned off.)
Working Indicator: Red / Green LED light
Working Voltage: DC 12V
Working Current: ≤3A
Autolock Time Delay: 1~99 seconds adjustable
Temperature: -40℃ ~ 60℃
Humidity: 10% ~ 90%
Dimension: 114*74*16 mm

Electric Magnetic Lock:
Material: Aluminum alloy
Working Voltage: 12VDC
Current: 380~500mA
Holding Force: 180kg/350Lbs
Lock Body: 172x40x21 mm / 6.77x1.57x0.83 inch
Armature Plate: 130x32x11 mm / 5.12x1.26x0.43 inch
Built-in reverse current protection device (MOV). Waterproof, can be install outside.
Suitable for wooden, glass, metal, security door.
Installation: surface installed

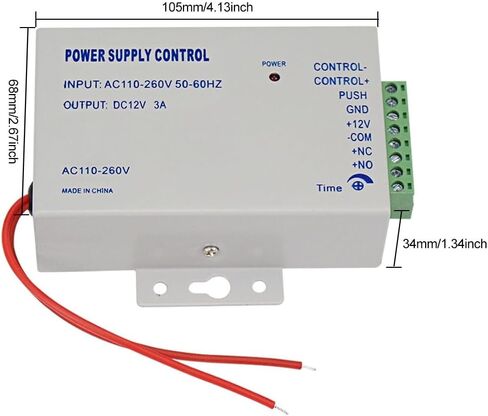

Power Supply:
Size: 105x68x34 mm
Input Voltage: AC 110-260V / 50~60HZ
Output Voltage: DC12V / 3A
Autolock Time Delay: 0~15 seconds adjustable
Overload Protection: all outputs in a short circuit, overload are protected.

Exit Button:
Size: 86 * 86 mm
Maximum Working Voltage: 36V DC/ 3A ~ 5A
Contact Output：NC/COM/NO

RFID Badge:
Working Frequency: 125KHz, standard EM card
Quantity: 10 pieces, each keyfob has an unique ID number

Warm Tips:
Armature plate of the magnetic lock installed too tight will lead to result the lock weak force, recommend loosen the armature plate screws a little in this case.
