youyeetoo NanoPi R3S - A Tiny IoT Router, RK3566, Dual GbE, USB3.0, 61.5mmX61.5mmX25mm - FriendlyElec (2+0GB Basic Kit)

KWD 19.500
Brand
youyeetoo
Category
Network Routers
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • [Wireless Mobile Mini Travel Router]NanoPi R3S - A tiny IoT Router, 61.5mmX61.5mmX25mm - Convert a public network (wired/wireless) into private Wi-Fi for secure surfing. Quickly create a secure Wi-Fi hotspot.
  • Shipping Lis: Basic kit: 1x Nanopi R3S, 1x 5V3A Power. TF card kit: 1x Nanopi R3S, 1x 5V3A Power, 1x32GB TF Card.[WIKI] "wiki.friendlyelec.com/wiki/index.php/NanoPi_R3S" (If you have any questions, please feel free to contact us. Click on “youyeetoo ”or mail am2#youyeetoo.com (#>>@) to ask).
  • [Larger Storage & Extensibility] - The NanoPi R3S uses the RK3566 SoC, which has Better performance than R2S's RK3288 chip. It has 2GB LPDDR4X RAM and 0/32 GB eMMC, enough to run various applications smoothly and elegantly.
  • [Open Source & Programmable] - Supports FriendlyWrt, based on an OpenWrt distribution and works with Docker CE, is open source and is well suited for the development of IoT applications, NAS applications, smart home gateways, etc.
  • [Dual Gbps Ethernet Ports] - The NanoPi R3S has two Gbps Ethernet ports: one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet. The NanoPi R3S achieves approximately 941 Mbits/second in download and upload.

Description

The NanoPi R3S("R3s") is an open-source platform with dual-Gbps Ethernet ports designed and developed by FriendlyElec for IoT applications.
The NanoPi R3s uses the RK3566 Soc, it has two Gbps Ethernet ports and 2G LPDDR4X RAM, 32GB eMMC (optional)， FriendlyElec ported an OpenWrt system for it. it works with Docker CE. it is a good platform for developing IoT applications NAS applications etc.
The NanoPi R3s can be optionally equipped with an integrated CNC anodized aluminum case and a 2-inch LCD screen for status monitoring.

Hardware Spec
CPU: Rockchip RK3566, Quad-core Cortex-A55
RAM: 2GB LPDDR4X
Ethernet: one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet
USB3.0 Host: Type-A x1
Storage: MicroSD Slot x 1, and on-board 32GB eMMC
Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector, 1500000 bauds
LED: LED x 3
RTC: One low-power RTC, support backup battery input
Buttons: 1x User BUtton, 1x MASK button for eMMC flashing via USB-C
Display: 1x MIPI-DSI 30-Pin FPC connector
PCB Size: 57*57*1.2mm
Power supply: USB-C 5V/2A input
Temperature measuring range: 0℃ to 80℃
OS/Software: OpenMediaVault, FriendlyWrt Based on OpenWrt

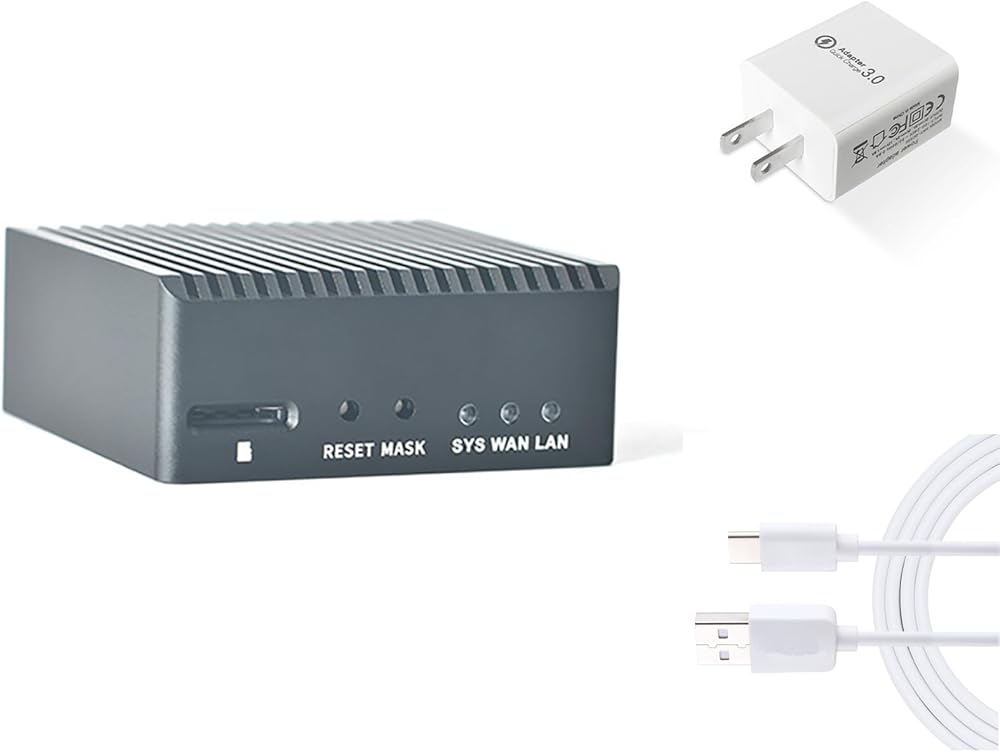

Shipping Lis: Basic kit: 1x Nanopi R3S, 1x 5V3A Power. TF card kit: 1x Nanopi R3S, 1x 5V3A Power, 1x32GB TF Card.[WIKI] "wiki.friendlyelec.com/wiki/index.php/NanoPi_R3S"
If you have any questions, please feel free to click "youyeetoo" to ask or mail am2#youyeetoo.com (#>>@)
Tech Support: youyeetoo Discord or forum. youyeetoo.com
