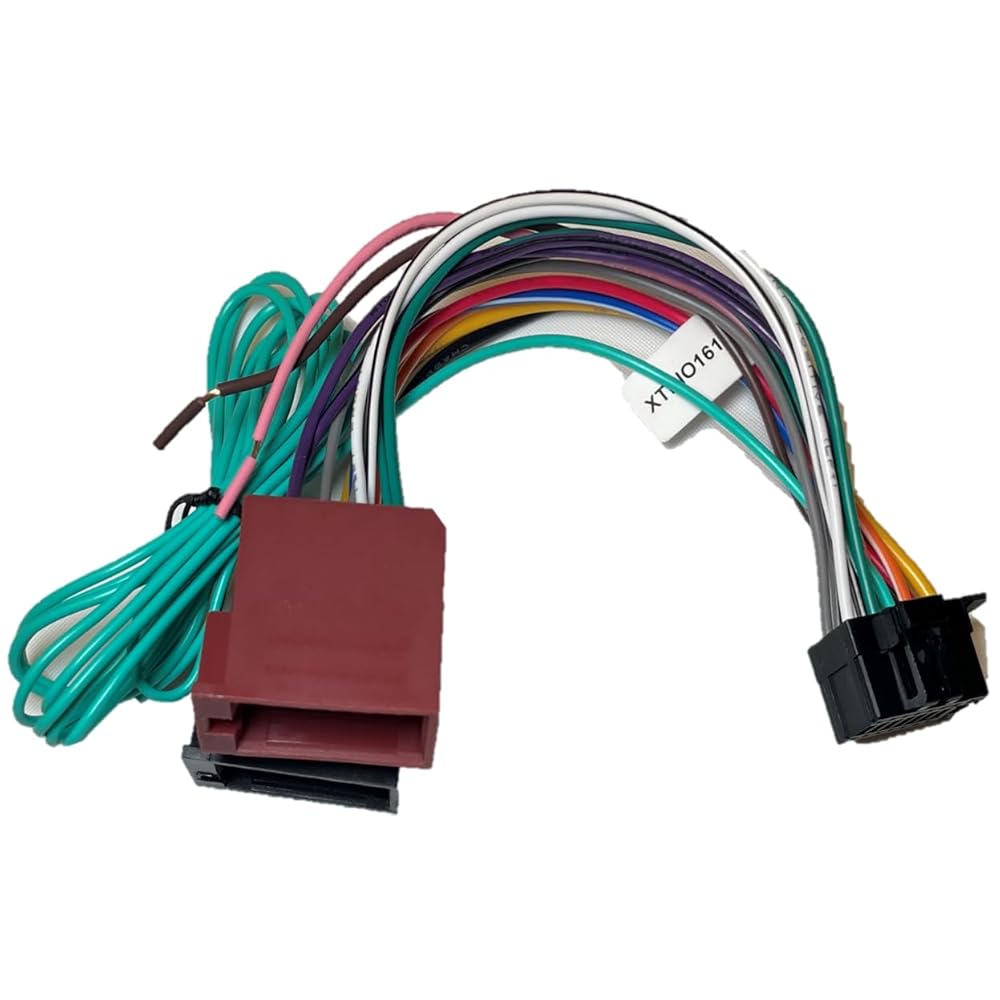

Thinking of replacing your aftermarket harness, then the Xtenzi wire harness is a must for a quick and clean installation. The Xtenzi premium quality power harness & Speaker plug is compatible with Pioneer. Our premium quality wire harnesses help to install your aftermarket stereo with ease. The Xtenzi harness eliminates cutting your OE radio plug and allows you to reinstall your factory receiver if necessary. After connecting the wire harness, your install is made simple with our E.I.A. color coded wires. The wiring color codes are all ISO standard. All wiring harness and wires are labeled with own specific function. This Radio ISO Harness will convert your original radio harness adaptor to standard ISO connections. This Radio ISO Harness will allow the installation of a new or used aftermarket stereo into your Vehicle.
Compatible with the following Vehicles:
Brand:
Pioneer
Interchange Part Number:
CDP1545
Models:
AVIC-F960BT, AVICF960BT
AVIC-F960DAB, AVICF960DAB
AVIC-F60DAB, AVICF60DAB
AVIC-F970BT, AVICF970BT
AVIC-F970DAB, AVICF970DAB
AVIC-F70DAB, AVICF70DAB
AVIC-F77DAB, AVICF77DAB
AVIC-F980BT, AVICF980BT
AVIC-F980DAB, AVICF980DAB
AVIC-F80DAB, AVICF80DAB
AVIC-F88DAB, AVICF88DAB
AVIC-Z610BT, AVICZ610BT
AVIC-Z6110BT, AVICZ6110BT
AVIC-Z620BT, AVICZ620BT
AVIC-Z630BT, AVICZ630BT
AVIC-Z710DAB, AVICZ710DAB
AVIC-Z7110DAB, AVICZ7110DAB
AVIC-Z720DAB, AVICZ720DAB
AVIC-Z730DAB, AVICZ730DAB
AVIC-Z810DAB, AVICZ810DAB
AVIC-Z820DAB, AVICZ820DAB
AVIC-Z830DAB, AVICZ830DAB
AVIC-Z910DAB, AVICZ910DAB
AVIC-Z930DAB, AVICZ930DAB
AVH-Z9200DAB, AVHZ9200DAB
AVIC-Z920DAB, AVICZ920DAB
Technical Specifications:
­­­­­­­­­­­­­­­­­­­Brand Name: Xtenzi
Model Number: XT95011
Wire Length: 6 inch/15CM
Connector Pin Count: 16-Pin Connector
Connector Material: ABS plastic molded connector.
Type: Replacement Wiring Harness.
Warranty: One-year Xtenzi Warranty. (Terms and condition apply)
What is Included within the Package:
1 x Xtenzi Car Wire Harness
EIA-Wire Harness Connections:
Yellow - 12V Constant
Red - 12V Accessory
Black - Ground
Blue - Power Antenna
Orange - Dash Light Dimmer/Illumination
Green - Left Rear Speaker (+)
Green with Black Stripe - Left Rear Speaker (-)
White - Left Front Speaker (+)
White with Black Stripe - Left Front Speaker (-)
Purple - Right Rear Speaker (+)
Purple with Black Stripe - Right Rear Speaker (-)
Gray - Right Front Speaker (+)
Gray with Black Stripe - Right Front Speaker (-)
* Some of the additional wires may have special functions, for more information about this please refer to the stereo/radio manual or email us.
Notes:
1) Compatibility Chart may vary depending on vehicle options, production dates, and install application. Please inquire before purchase.
2) Please measure the plug and count the pins before purchase
CAUTION:
Some wire functions/Color may be different, please read your Radio install guide carefully or ask an installer. Please check on the back of your car stereo to see if the plug of this harness fits, if you are unsure of fitting, please contact us for support before purchase or consult an installer.
