CM4 4G32GB RK3566 Quad Core 64 Bit Single Board Computer, Compute Module 4 with 32GB eMMC 1.8 GHz Frequency Wi-Fi & Bluetooth 5.0 Integrated RKNN NPU AI Accelerator (CM4 4G32G)

KWD 19
Brand
Orange Pi
Weight
29 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 🍊🍊[High Performance] - Orange Pi Compute Module 4 4gb is powered by Rockchip RK3566, a quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz; integrated ARM Mali G52 2EE graphics processor, supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1.
  • ✨✨[High Speed] - Orange Pi CM4 4g embedded high-performance 2D acceleration hardware; integrated RKNN NPU AI accelerator, 0.8Tops@INT8 performance, supporting Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture model conversion with one click.
  • 🎁🎁[Abundant RAM & eMMC Memory] - 4GB (LPDDR4/4X), 32GB eMMC Memory
  • 🎮🎮[Wi-Fi 5+BT 5.0, BLE support] Built-in 2.4G/5G dual-band Wi-Fi 5 and Bluetooth 5.0, support BLE, enjoy wonderful network anytime, anywhere. Already equipped with on-board antenna, optional external antenna, more suitable for industrial grade applications.
  • 🌈🌈[Run Multiple Systems] - Orange Pi Compute Module 4 run Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
  • 💽💽[Orange Pi CM4 Base Board] - For use with the Orange Pi CM4, with an on-board 40Pin GPIO interface and standard CM4 connector，gathering all kinds of popular interfaces such as eDP, MIPI DSI, MIPI CSI, USB3.0, USB2.0, HDMI2.0, M.2 M-KEY, Gigabit Ethernet, etc., making it easy to use.(Not included)
  • 🍓🍓[Support Open Source] - Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch. Pretty much anything else, because Orange Pi is open source.

Description

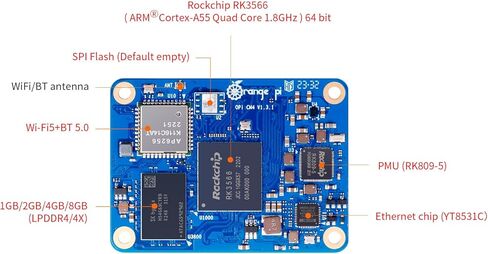

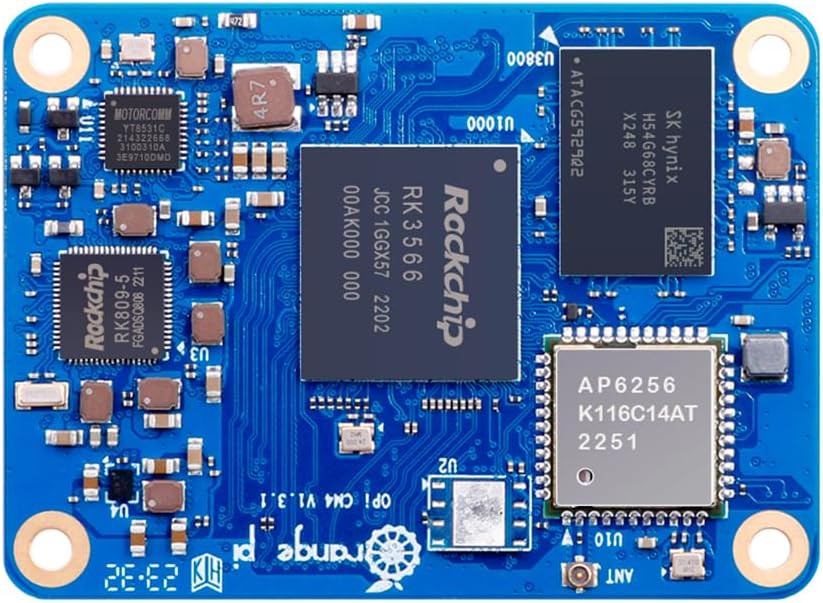

Orange Pi Compute Module 4
SoC: RockChip RK3566
CPU: Quad-core 64-bit Cortex-A55 processor，22nm advanced process, up to 1.8GHz main frequency
GPU: ARM Mali G52 2EE graphics processor; Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1; Embedded high performance 2D acceleration hardware
NPU: Integrated RKNN NPU AI gas pedal, 0.8Tops@INT8 performance; Supports Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet
VPU; 4K@60fps H.265/H. 264/VP9 video decoding; 1080P@100fps H.265 video encoding; 1080P@60fps H.264 video encoding
PMU: RockChip RK809-5
RAM: 2GB/4GB/8GB （LPDDR4/4x）
Memory: On-board eMMC: 16GB/32GB/64GB/128GB; SPI Flash: default empty post
Wi-Fi + Bluetooth: Wi-Fi 5+BT 5.0，BLE（20U5622）
Ethernet transceivers: 10/100/1000Mbps Ethernet (on-board PHY chip : YT8531C)
Interface: 100Pin*2, 24Pin*1, contains the following signals:
10/100/1000Mbps Ethernet MDI signals
1* HDMI 2.0 interface up to 4K@60fps
1* 2-lane MIPI DSI display interface
1* 4-lane MIPI DSI display interface
Embedded Display Port (eDP)
1* 4-lane MIPI CSI camera interface
SATA3 or PCIe
USB3.0*1+USB2.0*3
RESET, MASKROM, RECOVERY
Headphone jack Audio input and output signals
DC 5V input power supply, DC3.3V and 1.8V output power supply
Supported OS: Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
PCB Size: 55X40mm
