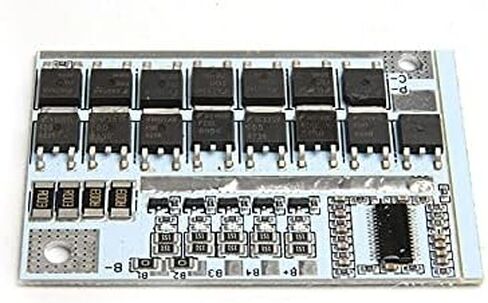

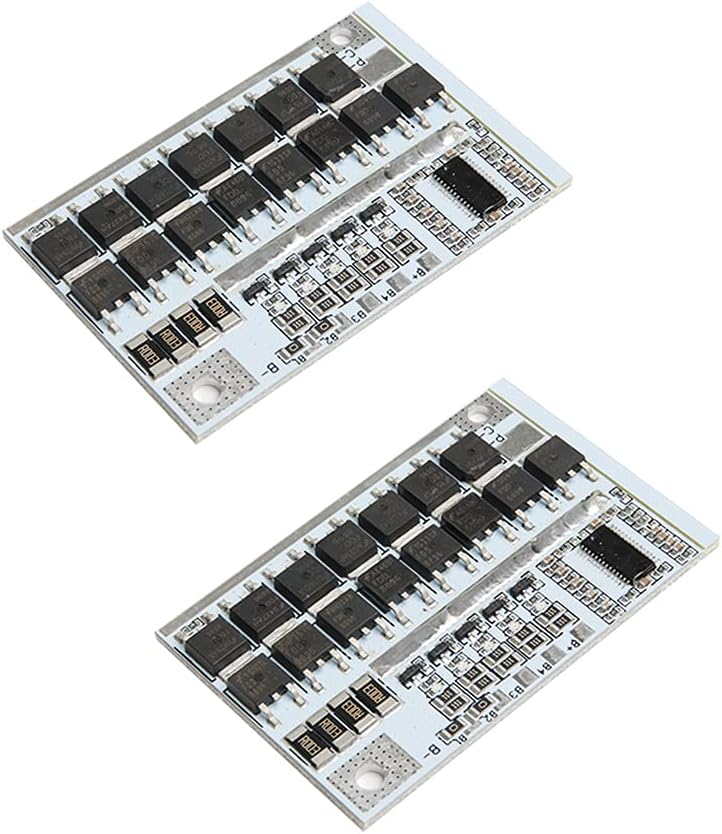

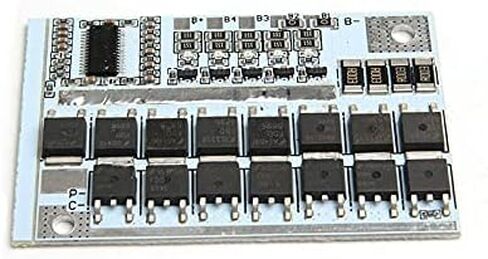

2pcs 4S 60A w/Balance BMS Protection PCB Board F 3.2V LiFePo4 LiFe LFP Battery Cell
FOR LiFePo4 Lithium iron Phosphate Battery protection Board(3.2V)
Single cell battery overcharge protect voltage : 3.61-3.69 V
Single cell battery overcharge protect recover voltage : 3.5-3.6V
Overcharge protect delay : 1.5-2.5S
Single cell battery over-discharge protect voltage : 2.27-2.43 V
Overcharge protect Current : 100A
Over-discharge protect Current : 100A
Over-discharge protect delay : 0.5-1.5S
Temperature protect : Yes
Disconnect protect : Yes
Shortage protect : Yes
Shortage delay : 100-600 uS
Shortage protect recover : YES
Charging voltage: Strings number *3.7V
Charging Current : 60A
Current Balance : Yes
Ampere balance (Current) : 60MA
Voltage alance accuracy : 3.35-3.45V
Board Size: 60*42mm Thickness : 3.9mm
Note:

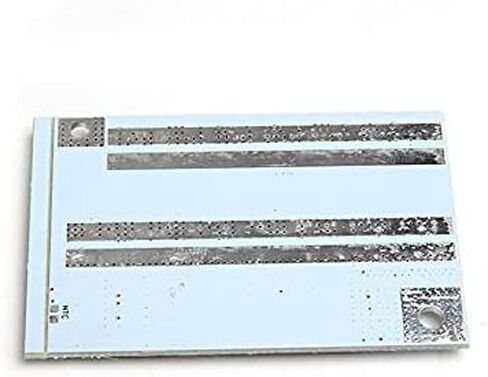

For continuous currents exceeding 50A or requiring lower heat generation, solder the copper wire as follows.
Precautions:

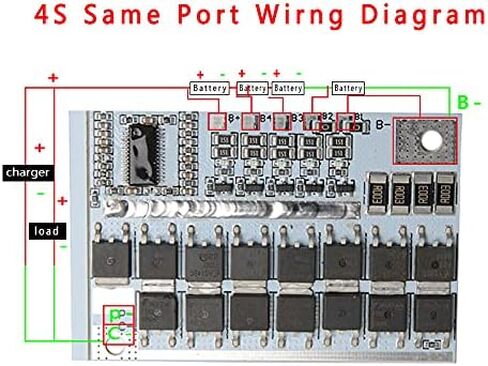

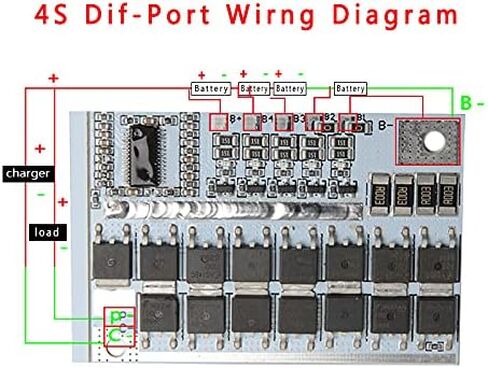

Note 1: The B-, C-, and P- lines should be connected with thick wires, and ensure that the pads are properly soldered to the positive and negative electrodes of the corresponding device.
Note 2: before installing the protection board, the battery must match well (each battery voltage difference is not higher than 0.05V, the internal resistance difference is not greater than 5mΩ, the capacity difference is less than 30mAh), the protection board is to protect each string of batteries, as long as A string of battery voltages that are too high or too low will protect it. The better the battery consistency, the more durable the entire battery, and the best performance of the protection board.
Note 3: Single batteries must be connected in parallel to the required number of battery packs, and then use the batteries in series.
Note 4: Whe
