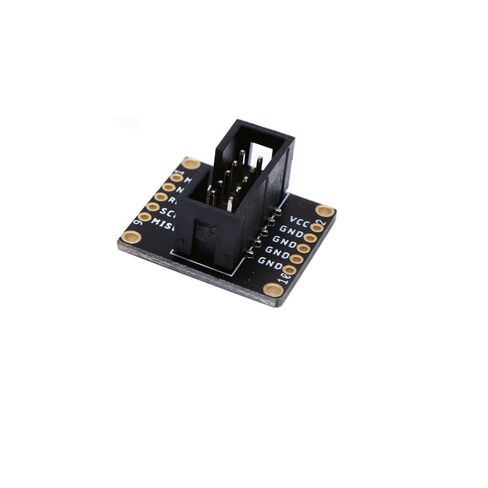

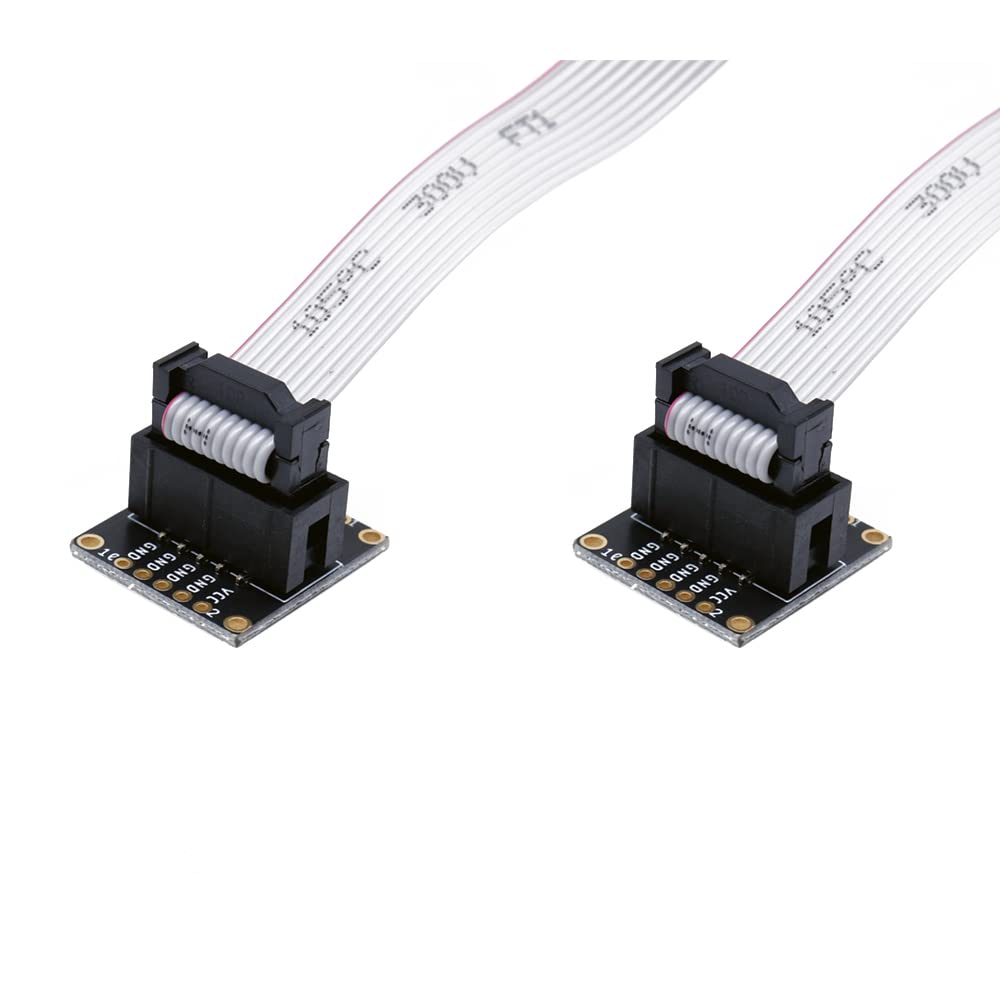

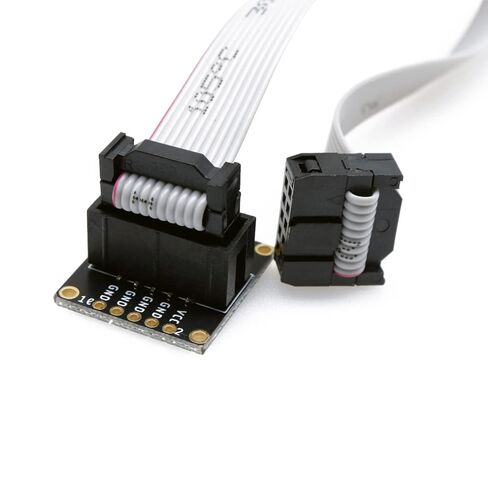

2pcs JTAG Breakout Board Adapter SWD Adapter Board Jtag Debug Board with 2 Row 2.54mm Pitch 10pins Female to Female IDC Connector Flat Flexible Gray Ribbon Jumper Cable 200mm Pitch for J-Link

KWD 4.500
Brand
Treedix
Weight
33 g
– 1 +

Special Features

  • This is a plug-in adapter suitable for ARM-USB-OCD, ARM-USB-OCD-H, ARM-USB-TINY, ARM-USB-TINY-H
  • It allows programming/debugging of a circuit board with a small 10-pin 2.54mm stepping connector, which is very convenient to use. Boundary scan can access the signal logic state inside the chip, the state of the chip pins, etc.
  • The distance between the holes in the adapter board is 2.54mm, and the data transmission line is a 10-pin ribbon cable
  • This board allows the use of ADA1675 cables to connect Atmel-ICE PCBA and your components to debug Atmel ATmega and Atmel Arm in the Atmel studio environment.
  • Used in most Atmel AVR JTAG debuggers, system programmers, Isp downloads, Segger's JLINK and other JTAG/SWD programmers/debuggers

Description

Specification:
Withstand voltage: 300V
Temperature: 105℃

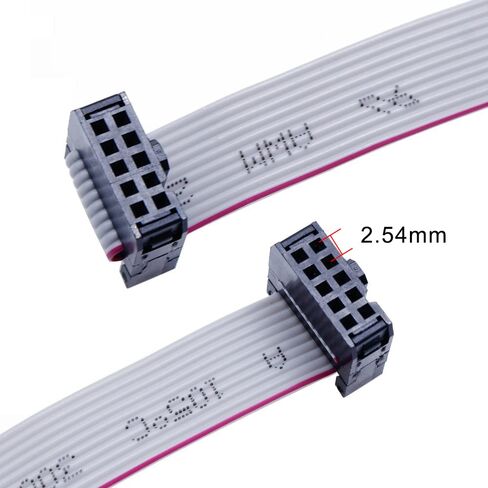

Pitch: 2.54mm
Flat ribbon cable length: 20cm
breakout board size: 2.22*2.41cm (0.88*0.95in)

Package Includes:
2*jtag breakout board
2*20cm ribbon cable
