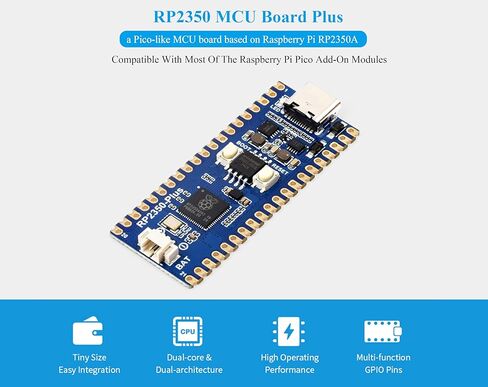

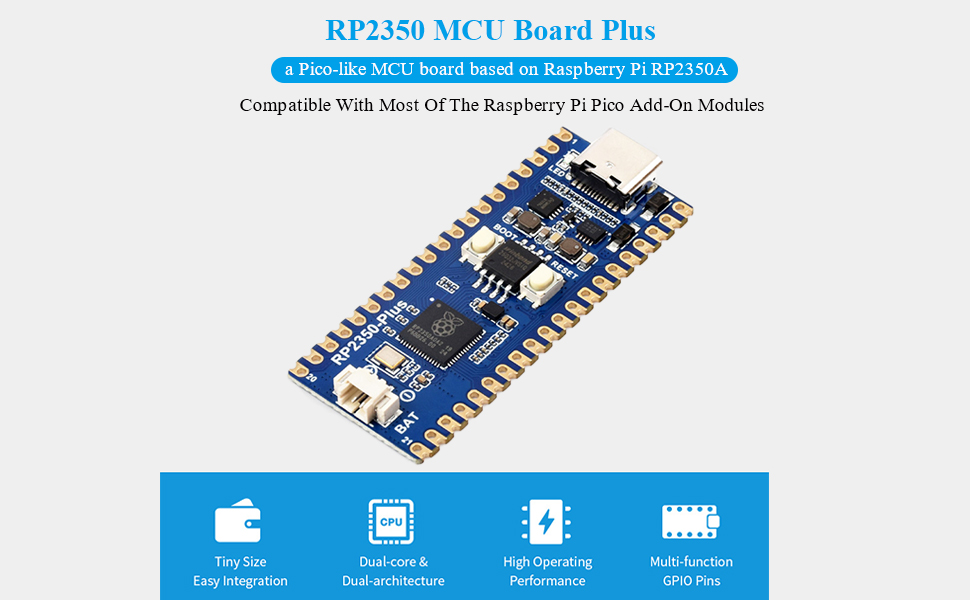

RP2350-Plus Development Board Pico-Like MCU Board Based On RPi RP2350A Dual-Core & Dual-Architecture Design, Compatible with Raspberry Pi Pico add-on Modules, Type-C Connector (Without Pinheader)
All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features

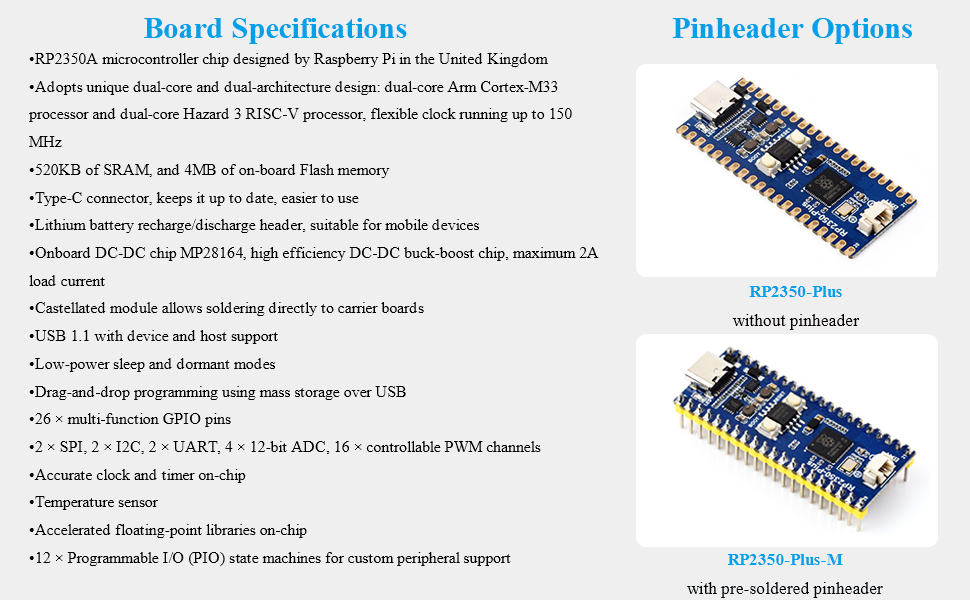

RP2350-Plus Development Board, High-performance Pico-like MCU Board Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller. Compatible with most of the RPi Pico add-on modules.
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz. 520KB of SRAM, and 4MB of on-board Flash memory. Type-C connector, keeps it up to date, easier to use.
Ba--tte-ry recharge/discharge header, suitable for mobile devices. Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current.

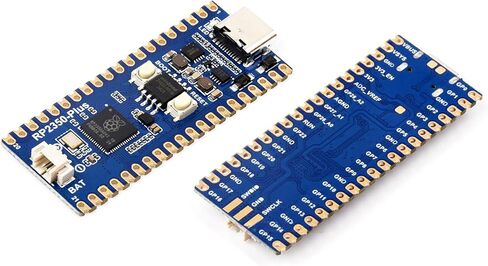

Castellated module allows soldering directly to carrier boards. USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB.
26 × multi-function GPIO pins. 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels. Accurate clock and timer on-chip. Temperature sensor. Accelerated floating-point libraries on-chip. 12 × Programmable I/O (PIO) state machines for custom peripheral support.
Comes with Online Development Resources /User Manual: bit.ly/3OpxKpj
