MCU Board for RP2040, Microcontroller Development Board with 1.28inch Round IPS LCD Touch Display, 240x240 Resolution, Type C Development Board for Computer, Generic45r7sua31h

KWD 10
Brand
Generic
Weight
40 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • HIGH PERFORMANCE PROCESSOR: for RP2040 microcontroller chip developed by for RPi; equipped with a core for ARM for Cortex M0 + processor, running up to 133MHz flexible clock.

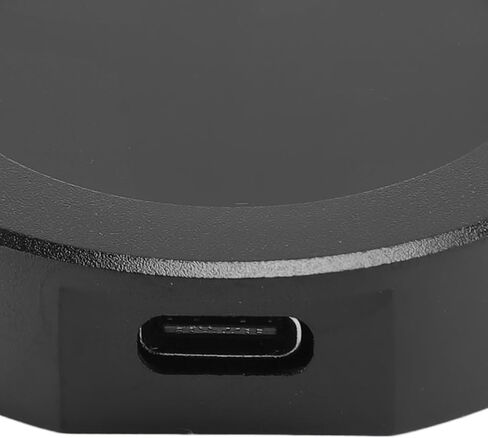

  • UNIQUE DESIGN: Built in 264KB of and 2MB of on chip Flash; Type C interface, no need to struggle with forward and reverse plugging; On board a 1.28 inch LCD display.
  • GPIO PORTS: All GPIOs (30 in total, but some pins are already connected to internal circuits and need to be taken care of when multiplexing, please refer to the details) are led out via 1.27 pitch rows of female pins.
  • USB SUPPORT: USB1.1 host and device support; support for low power sleep and hibernation mode; can be recognized as mass storage via USB for drag and drop download programs.
  • MULTIPLE CHANNELS, DISCHARGE INTERFACES: 2 SPI, 2 I2C, 2 UART, 4 12 bit ADC, 16 controllable PWM channels. On board lithium battery charging and discharging interface facilitates the use of the for RP2040 LCD 1.28 in a number of mobile scenarios.

Description

Spec:
Item Type: Microcontroller Development Board
Material: LCD
LCD Parameters:
Control Chip: GC9A01A
Resolution: 240(H)RGB x 240(V)
Telecommunication interface: SPI
Display Size: Diameter Approx. 32.4mm/1.28in
Display Panel: IPS
Pixel Size: 0.135(H)x0.135(V)mm
IMU Parameters:
Sensor Name: QMI8658
Accelerometer Characteristics:
Resolution: 16 bit
Range (Optional): ±2, ±4, ±8, ±16g
Gyroscope Characteristics:
Resolution: 16 Bits
Range (Optional): ±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048°/sec

Package List:
1 x Microcontroller Development Board
