Adeept Motor HAT Kit for Raspberry Pi 4 Model B 3B+ 3B 2B B+, Smart Robot Car Driver, Robot Expansion Board, L298P DC Motor Drive, PCA9685 16 Channel 12-Bit PWM Servo Motor Driver

KWD 9.500
Brand
Adeept
Weight
137 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

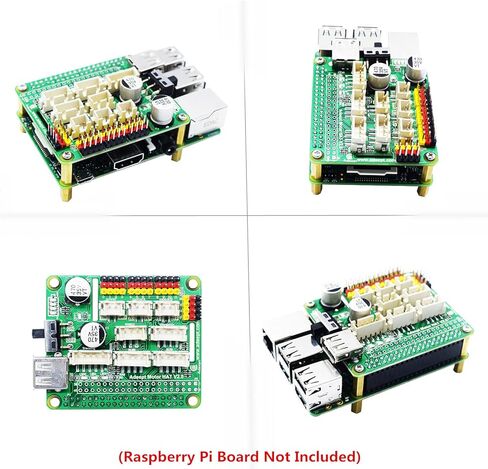

  • Adeept Motor HAT is a robot/smart car expansion board designed for Raspberry Pi, it is compatible with Raspberry Pi 4 Model B, 3B+/3B/2B/B+.
  • Adeept Motor HAT must be used in conjunction with the Raspberry Pi. You can use it to build your Raspberry Pi-based smart car or robot.
  • Adeept Motor HAT integrates a DC-DC step-down circuit based on GS2678, which can reduce the input voltage to 5V to power the Raspberry Pi; it integrates a DC motor drive circuit based on L298P, which can drive two DC motors; it also integrates a 16-channel PWM servo drive circuit based on PCA9685, which can control 16 servos; Motor HAT also integrates a battery power indicator circuit based on comparator LM324, which indicates the battery power through the status of four LEDs.
  • This kit contains cables suitable for each interface, so you don't need to buy cables anymore.
  • You can search for 'ADM057' in the [Learn] section of Adeept official website to download Motor HAT circuit schematics and sample codes, or you can send an email to the Adeept technical support team for help.

Description

Technical Parameters:
Input Voltage: DC 7-12V
Output Voltage: DC 5V
Communication Interface: IIC
Size: 65*56mm

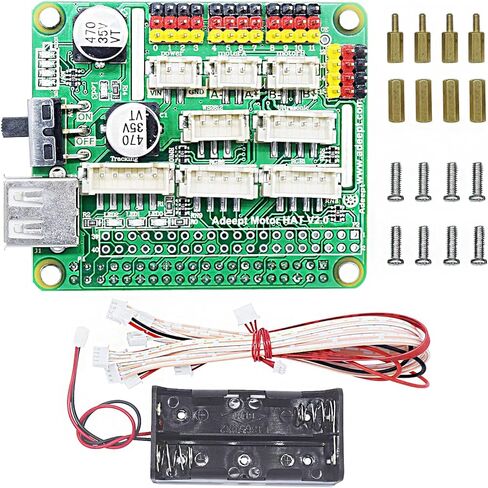

Package Included:
1x Adeept Motor HAT V2.0
1x Battery Holder
8x M2.5*10+6 Copper Pillar
8x M2.5*8 Screw
1x A set of connecting cables
