1.5inch RGB OLED Display Module 128×128 Pixels, 65K RGB Display Colors, SPI Interface Compatible with Raspberry Pi 5/ Pi 4B/ Pi 3B+ Pi3B/ Pi Zero/Pi Zero 2W/Arduino/STM32, etc.

KWD 9.500
Brand
Wonrabai
Weight
5 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Waveshare 1.5inch RGB OLED Display Module, 128×128 resolution OLED display, 65K RGB colors, clear and colorful displaying effect
  • SPI interface. This module selects 4wire-SPI and 3wire-SPI as the communication method, which reduces the area of the module and saves the IO resources of the controller.
  • Operating voltage: 3.3V/5V(Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
  • The built-in driver used by this OLED is SSD1351, which is a 128RGB * 128 Dot Matrix OLED/PLED controller with a 128*128*18bit SRAM as a display buffer area, which supports two color depths of 262k and 65k. And supports 8bit 8080 parallel, 8bit 6800 parallel, 3wire-SPI and 4wire-SPI and other communication methods.
  • Comes with Online Development Resources (examples for Raspberry Pi/Arduino/STM32), Please check: n9.cl/gi1pu

Description

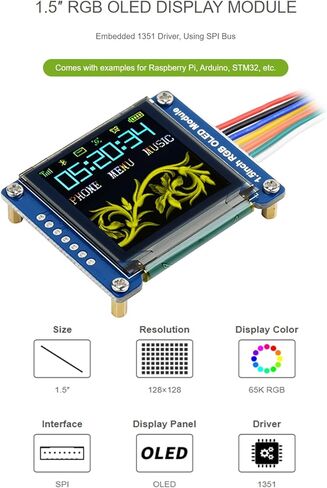

1.5inch RGB OLED Display Module, embedded 1351 driver, using SPI bus

Features
128×128 resolution OLED display, 65K RGB colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins
Comes with Online Development Resources (examples for Raspberry Pi/Arduino/STM32), Please check: n9.cl/gi1pu

Specifications
Display Panel: OLED
Operating voltage: 3.3V/5V
Resolution: 128×128 pixels
Communication Interface: 3/4-wire SPI
Driver: 1351
Display size: 26.86 × 26.86 mm
Pixel size: 0.045 × 0.194 mm

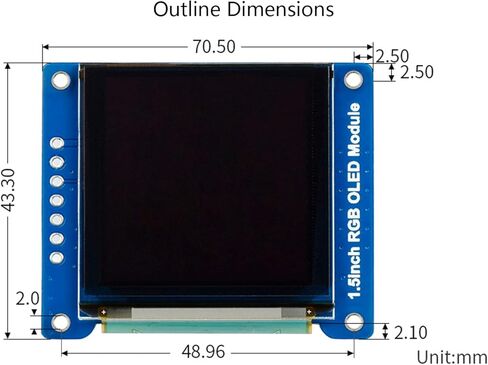

Dimensions: 44.5 × 37.0 mm

Package Content
1.5inch RGB OLED Module x1
PH2.0 7PIN cable x1
