2 x 8dBi 2.4GHz 5GHz 5.8GHz Dual Band WiFi RP-SMA Male Antenna+2 x 35CM U.FL/IPEX to RP SMA Female Pigtail Cable for Mini PCIe Card Wireless Routers PC Repeater Desktop FPV UAV Drone PS4 Build

KWD 4
Brand
HIGHFINE
Weight
32 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • High gain WIFI antenna- This 8dBi Omni-directional antenna with dual band 2.4GHz / 5.8GHz and RP-SMA Male connector which reduces interference, extend wireless range to dead spot
  • Pigtail Specifications- Coming with 2 pieces connector cables,Length: 35cm including the connectors; Connector type: U.fl / IPEX (MHF2) to RP-SMA Female
  • High quality- The WIFI antenna case is made of hard plastic, sturdy and durable. The internal is using high quality circuit board ensures maximum and stable signal quality

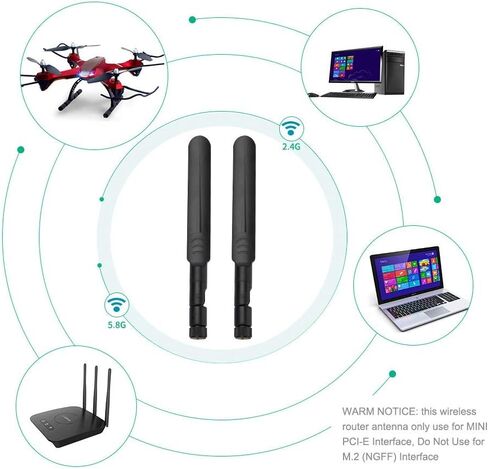

  • Multi-use- This wireless antenna works with most wireless devices, such as Mini PCIe Wireless Card Routers / Repeater / Range Extender / Desktop PC / Mini ITX Build / PCI Card / FPV UAV Drone / PS4 Build. WARM NOTICE: this wireless router antenna only use for MINI PCI-E Interface, Do Not Use for M.2 (NGFF) Interface, please check your connectors before buying
  • Easy to install- This wireless wifi antenna is easy to install, Simply replace current antenna to increase signal strength

Description

Features:
High gain- This dual band wifi antenna provides broad coverage to extend wireless range to dead spot and make the signal be better and longer range.
Compatible with- these omnidirectional antennas only use for MINI PCI-E Interface, Do Not Use for M.2 (NGFF) Interface.
Easy installation- no soldering, simply replace your current antenna.

Specifications:
Antenna Specifications:
Color: Black
Radiation: Omni-directional
Gain:8dBi
Frequency Range(MHz): 2400-2500 & 5725-5850
Connector Type: RP-SMA Male (Hole)

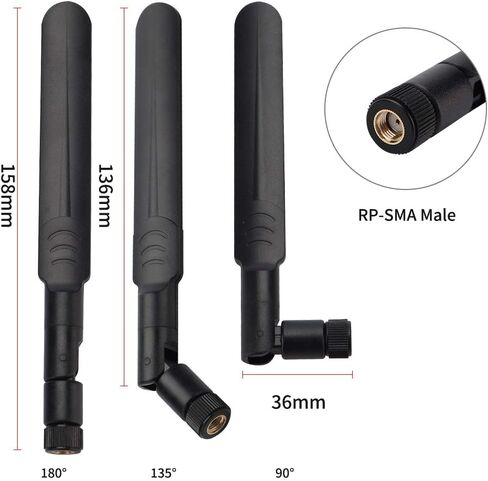

Angle Adjustable: 90° 135° 180°
Dimension: 16cm/ 6.3”(Unbend) / 13.5cm/ 5.31”(Bend)
Wight: 13.5g / 0.48 oz per antenna
Input Impedance(Ω): 50
VSWR ≤ 1.5

Pigtail Cable Specifications:
Color: Black & Gold
Length: 35cm / 14''
Wight:4.4g / 0.17 oz per pigtail cable
Connector Type: U.fl / IPEX (MHF2) to RP-SMA Female (Pin)
Note: IPEX have 5 type: MHF MHF2 MHF3 MHF4 MHF5, MHF2 can be compatible with MHF use on Mini PCIe Wireless Card.

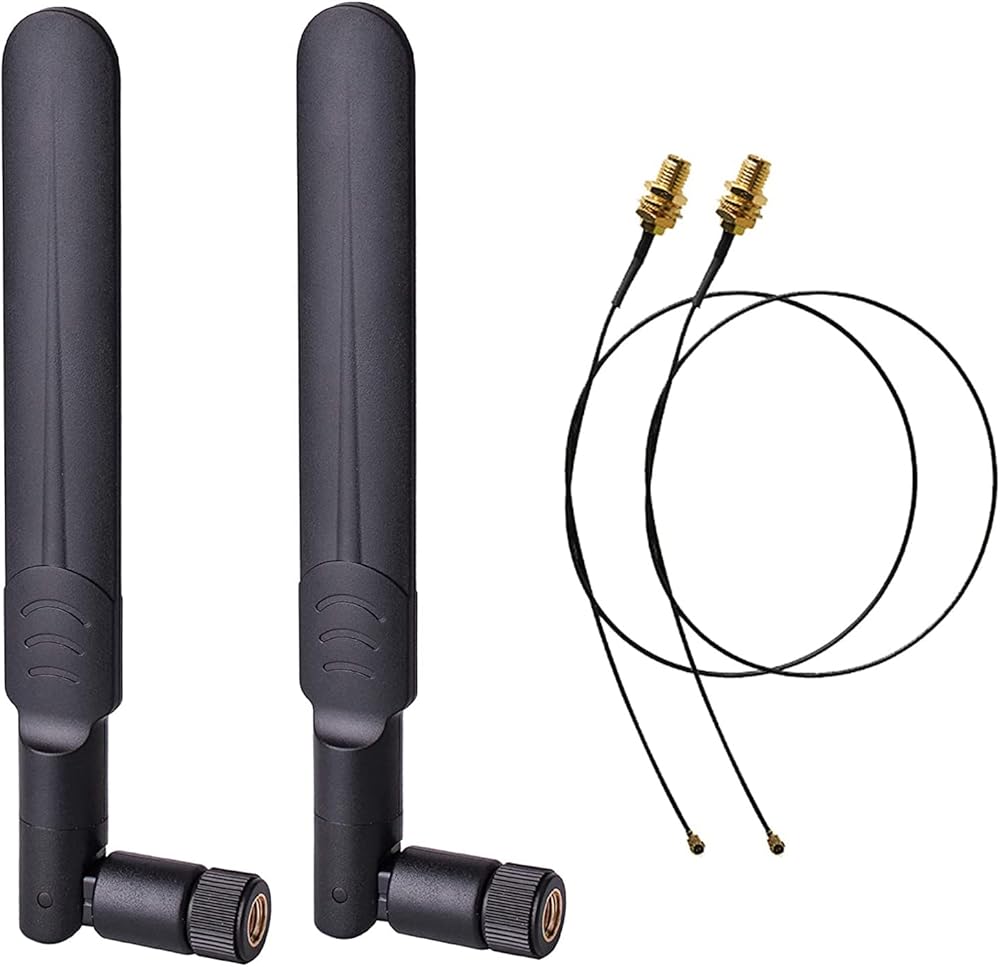

Package include: 2 X Dual Band WiFi RP-SMA Male Antenna
2X 35CM U.FL/IPEX to RP SMA Female Pigtail Cable
