P.D DasMikro DSK-492 V2 FH5/FH5U 4CH Receiver Telemetry Support SSL Support Indicator Function Support NOR/SHR/SSR/SXR/SR Mode Sanwa RX-492i Built-in Antenna Compatible Receiver (Compatible Models: M17, MT-5, MT-R)

The DasMikro DSK-492 V2 2.4GHz 4CH FHSS-5 SSL Telemetry Receiver uses a built-in antenna for exceptional range and response speed.
Lightweight design and small footprint, this receiver is ideal for 1/10 and 1/12 scale electric RC cars.
This receiver is SSL compatible with either Super Vortex or PGS servo (sold separately).
Compared to DSK-492i, we have done the following optimizations:
1:RX-492 style, adopt high quality shell with compact appearance.
2: Upgrade to High Quality Gold Plated Terminals
3: The material and design of the inner PCB is more optimized.

Features:
1. Compatible with Sanwa 2.4GHz FHSS5U/FHSS5 Spectrum Diffusing System
2. Telemetry compatible/SSL compatible (such as SUPER VORTEX series)
3. Indicator function (MT-5 only available)
4. Ultra Response Mode (SUR)
5. Extreme Response Mode (SXR)
6. Dual ID system (bind with 2 transmitters)
Micro Size:28x20.5x18.5mm 7.
8. Operating voltage: 3.5V ~ 8.4V
9. Weight: 7g

Binding Method:
The LED will not light up until the transmitter is fully binded.
↓↓ Please refer to the video ↓↓↓
→→→https://youtu.be/bAxq8SsQF7Y? si=3ISYdos8RE4gRcKi,

Indicator function compatibility:
The DSK-492 V2 can be paired with an indicator compatible transmitter to confirm the reception of radio waves transmitted from the transmitter to the receiver. By checking the reception status, you can check the device failure and how the receiver is installed on the vehicle.
(*DSK-492 V2 supports indicator function, but the M17 does not have an indicator function. Currently the indicator function is only available for MT-5. )

Note:
The RPM sensor (SNW107A41061A) and temperature sensor are not compatible.
RPM and temperature telemetry are only available in Sanwa Super Vortex series.
Telemetry cannot be used in FH5U RF mode.
SXR response mode only supports transmitter M17.

Compatibility:
Sanwa M17
Sanwa MT-5
Sanwa MT-R

Package Includes:

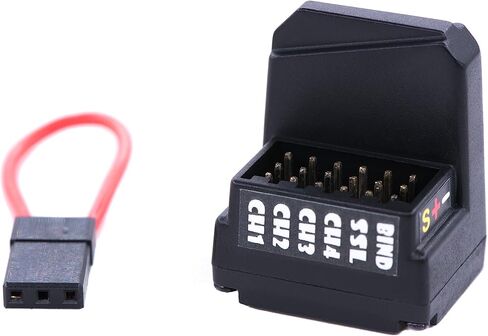

1 x DSK-492 V2 Receiver
1 x Binding Cable
