30A Electric Brushless Motor Controller, 2 Pcs ESC Speed Controller with XT60 and 3.5mm Bullet Plugs for RC Drone RC Airplane Helicopter

KWD 7
Brand
Flylin
Weight
40 g
– 1 +

Special Features

  • 30A Current Operation: Made of high quality electronic components, dependable to use. Features 30A continuous current and 40A peak current.
  • High Anti-interference Capabilities: This 30A brushless ESC features a power input terminal that uses a low-impedance and high-capacity electrolytic capacitor to improve its anti-interference capabilities.
  • Quick Heat Dissipation: The output MOSFET power tube comes with an independent heat sink to minimize the temperature rise of the device. This not only enhances its but also improves the system's high-current working capability.
  • Smooth Control: The singlechip microcomputer adopts an independent voltage regulator chip, which avoids the power interference caused by the BEC load change and improves the working stability.
  • Widely Use: This brushless ESC is a practical accessory for any RC remote control drone, helicopter, FPV, and more. With its simple installation process, no complicated operations are required.

Description

Feature:
1. This ESC can only be used with motors under 2212-1400KV, don't overdo it, the ESC can't carry it, it will be stuck and will cause burnout.
2. When the power is turned on, no matter the throttle lever is in any position, it will not start the motor immediately, to avoid causing personal injury.
3. Adapt to the difference of throttle stroke of different remotes, improve the linearity of throttle response, with smooth and delicate speed control feel and first-class speed control linearity.

Specification:
Product Name: 30A Electronic Brushless Speed Controller
Color: Black
Plug: XT60
BEC: 5V/2A
Working Current: Continuous current 30A, instantaneous 35A , 40A for 10 seconds.

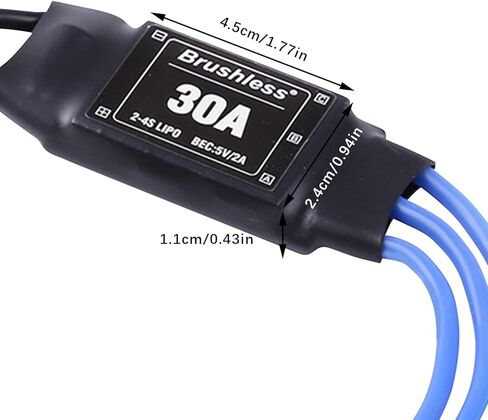

Dimensions: 50 x 26 x 7 (mm)
Weight: 25g (including wire)
Voltage Range: 4V-16V
Battery Quantity: 2-4S LIPO (BEC output not allowed for 4LIPO)
BEC Output: Continuous 2A, (momentary 3A)
Application: RC remote control drone, helicopter, FPV, etc.

Packing list:
2 x 30A Electronic Brushless Speed Controller
