Use the screws and nuts supplied to fix the adapter to the Tell-Tale.
Fix the Tell-Tale across the crack with screws/plugs and adhesive (sold separately)
Remove the four pre-set pegs. If the crack opens or closes the cursor moves relative to the calibration scale and can be recorded on the record sheet included on all orders.
Description

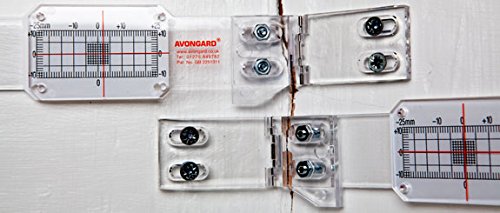

Monitors horizontal and vertical movement across a crack in a corner. The Tell-Tale is hinged enabling it to be used in internal corners of angles between 70 and 180 degrees. Monitors both internal and external corners. Avongard Tell-Tales are precision gauges that consist of two plates which overlap for a part of their length. The bottom plate is calibrated in millimeters and the top plate is transparent and marked with a hairline cursor in the form of a cross. Fix using Screws and Adhesive (not included but available as accessories). Supplied with full instructions and Crack Record Sheet.
