Lathe Burnishing Tool Smooth Surface Finish Turning Instead of Grinding

KWD 34
Brand
RHKING
Weight
0.6 kg
ModelTool Holder and Tool Head
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

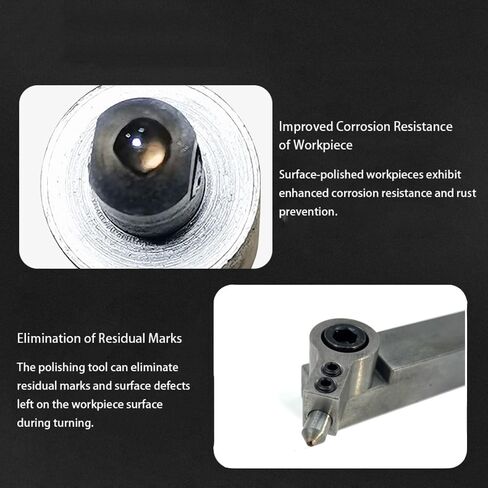

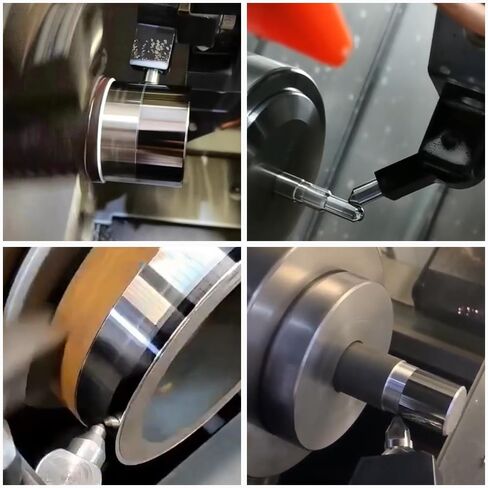

  • The use of Lathe Burnishing Tool allows for turning instead of grinding, improving the surface roughness of the workpiece and achieving a mirror-like finish.
  • By adjusting the tool holder angle, the polishing tool can process external circles, end faces, and curved surfaces, but it is not suitable for machining internal holes.
  • The material of the tool tip is diamond, which currently has the highest hardness and wear resistance. The stable welding method prevents the diamond tip from detaching.
  • Suitable for machining metals with a hardness between HRC 18-68.
  • Suitable for various types of conventional lathes and CNC lathes, but not suitable for machining centers, milling machines, etc.

Description

Specification

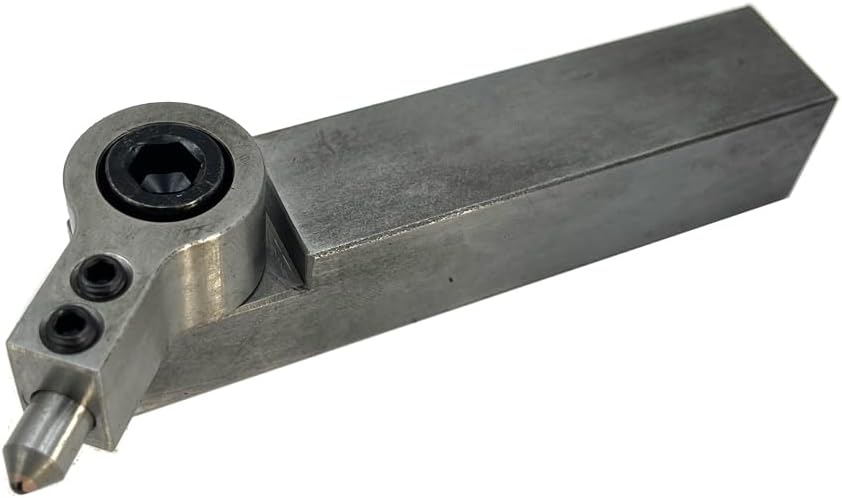

Product Name: Lathe Burnishing Tool
Polishing Turning Tool head size: 8mm*30mm
Tip radius: SR2.0
Tool handle size：25mm*25mm(0.98in*0.98in)
Application: Polishing processing for various types of metal materials to achieve a mirror-like surface roughness.
Recommended Parameters
Workpiece Diameter: 10mm to 300mm (0.39 inches to 11.81 inches)
Cutting Line Speed: 50-100m/min(165-328ft/min)
Feed Rate: 0.005mm/r-0.1mm/r
Machining Allowance: 0 to 0.01mm
Note

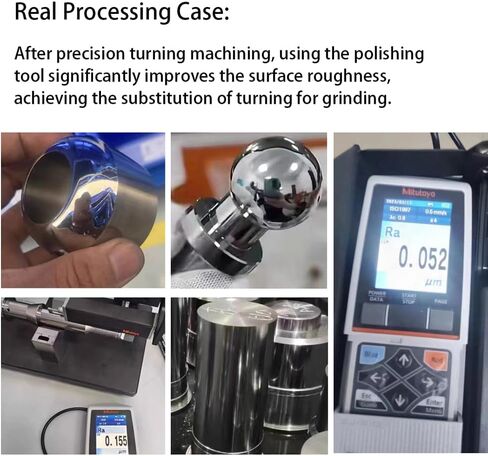

1.When using a Lathe Burnishing Tool, it is recommended that the previous process be machined to a surface roughness of Ra 3.2 or better. The better the quality of the surface roughness before polishing, the better the results.
2.A Lathe Burnishing Tool cannot be used as a finishing cutting tool. It does not produce chips and has minimal impact on dimensions.
3.Suitable for machining various common steel workpieces, quenched and tempered workpieces, copper. It is less suitable for machining acrylic, plastic materials.
Include

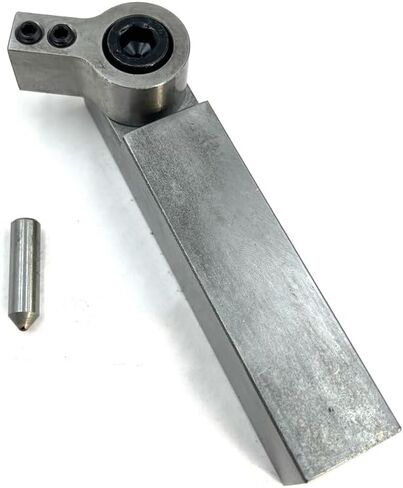

1pcs x Lathe Burnishing Tool Head
1pcs x 0.98in*0.98in Tool holder
