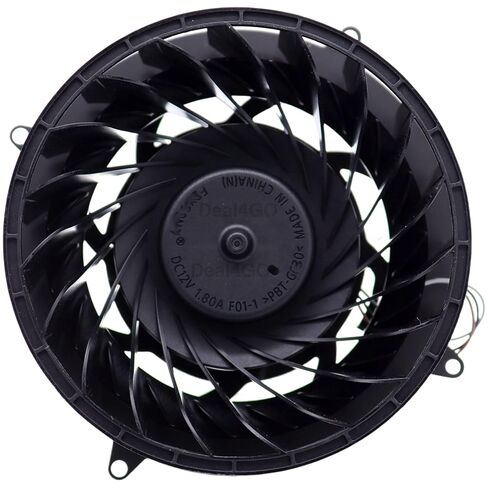

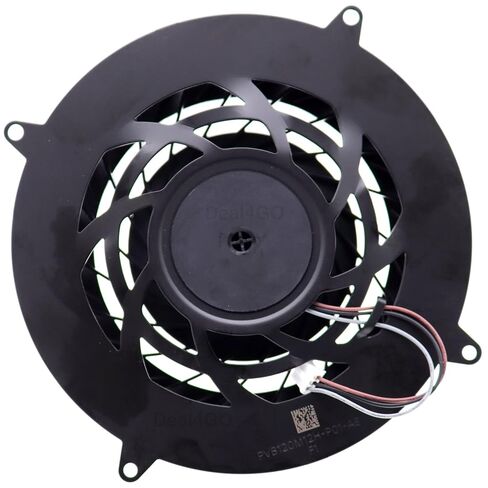

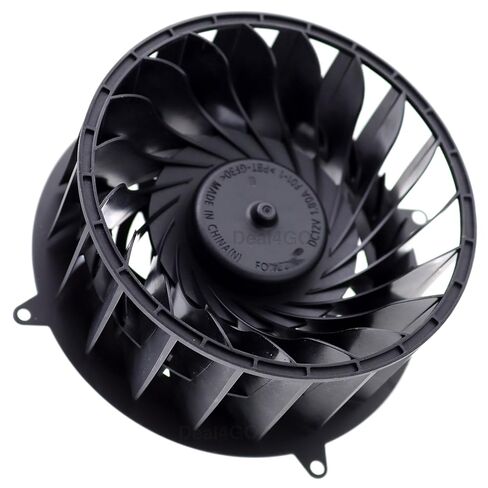

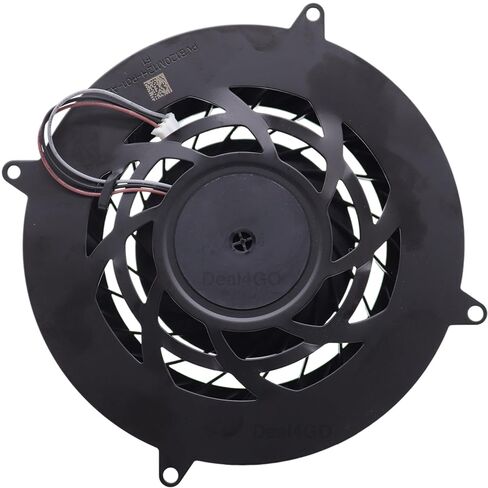

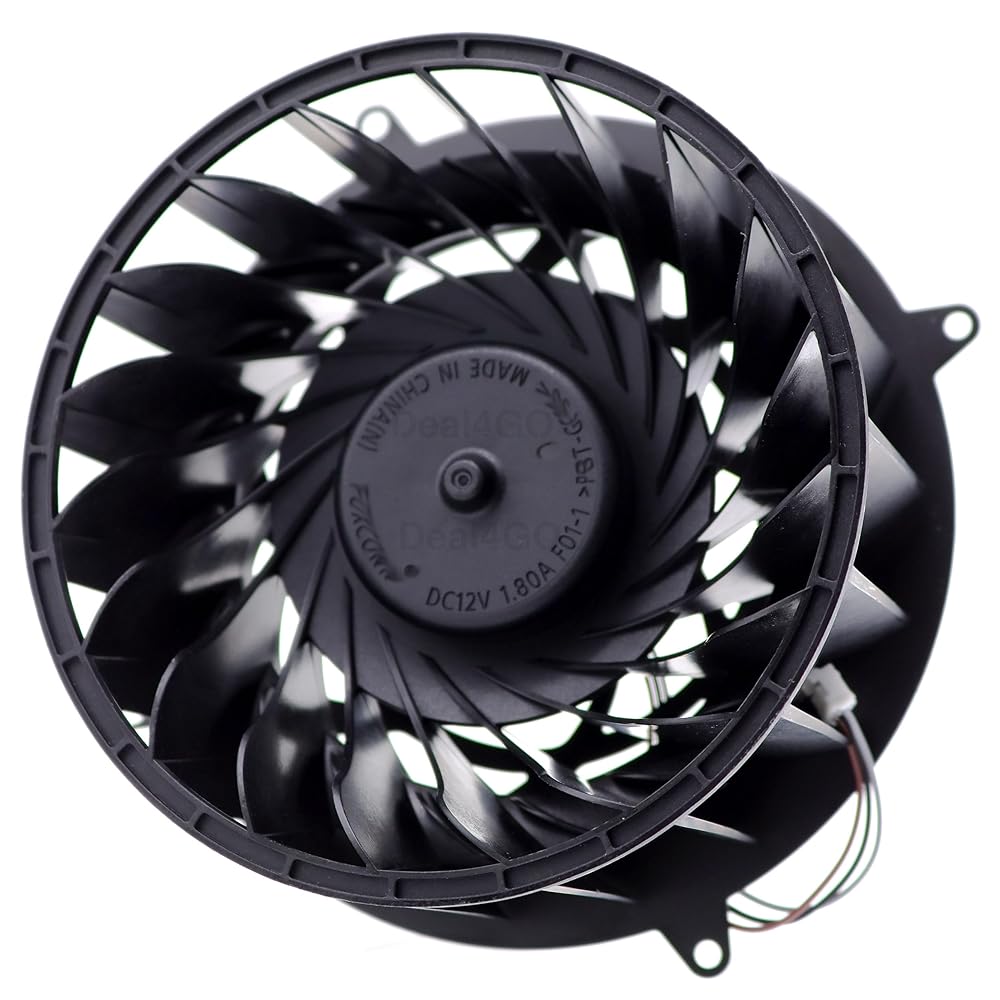

This is a internal cooling fan replacement for PS5 Pro CFI-70XX series, If your fan is running very loud or not functioning then a replacement may be needed.

The fan uses an integrated flex cable to connect to the mainboard. The cable connects via 3-pin connector making it a plug and play replacement module.

Compatible Part Number(s): PVB120M12H-P01-AE

Compatible with PS5 Pro models: CFI-70XX, CFI-7000, CFI-7002, CFI-7014, CFI-7019, CFI-7020, CFI-7021, CFI-7022

NOt compatible with following models:
. for PS5 (First Chassis Revision) CFI-10xx series: CFI-1014A, CFI-1015A, CFI-1016A, CFI-1018A, CFI-1000A, CFI-1002A, CFI-1008A ...
. for PS5 (Second Chassis Revision) CFI-11xx series: CFI-1114A, CFI-1115A, CFI-1116A, CFI-1118A, CFI-1109A, CFI-1108A, CFI-1102A, CFI-1100A ...
. for PS5 (Third Chassis Revision): CFI-1208A, CFI-1215A ...
. for PS5 Slim (First Chassis Revision): CFI-2000AB, CFI-2015AB, CFI-2016 ...
. for PS5 Limited/Special Edition: CFI-1016A, CFI-1116A, CFI-1216A, CFI-20XXB ...

Specifications:
Color: Black
Material: ABS + Metal
Voltage: DC 12V / 1.80A
Power Connection: 3-wire 3-pin, Wire-to-board
Blades: 19-Blades
Dimensions (W x D x H): 14.0 x 14.0 x 5.3 cm / 5.50 x 5.50 x 2.10 inch
Net Weight: 237.0g / 0.52 lb
