HDMI to RF Modulator, VHF UHF AV to RF Coaxial Converter, CVBS RCA HDMI to RF Modulator, for TV PAL NTSC Format, for Home TV Switch Audio Video, F Female Connectors

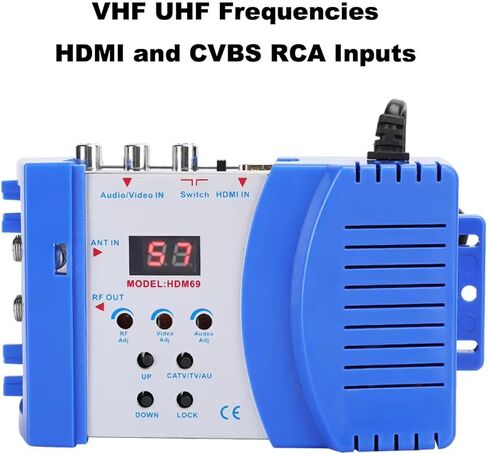

HDMI to RF modulator supports both VHF and UHF frequencies, and HDMI and CVBS RCA inputs
HDMI to RF converter supports multiple resolutions - 1080P/1080i/720P/576P/576i/480p, and features a wide frequency response
HDMI to RF coaxial converter allows direct RF output via F Female connectors, and no driver installation required
RF modulator for TV allows users to adjust the AV output level, catering to various equipment sensitivities and preferences
HDMI to RF modulator is compact and lightweight, made of high-quality ABS and metal materials, ensuring the modulator can withstand regular use
SPECIFICATION
Model: HDM69
Voltage: AC 90-240V
TV Standard Format: PAL, NTSC
Frequency Response: 47-868MHz
Bandwidth: 6MHz, 7MHz, 8MHz
Output Level: 90dBuV Min
Input Level: 0.8Vp-p for 80%±10% Modulation
Sound System: M=4.5MHz, B/G=5.5MHz, I=6.0MHz, D/K=6.5MHz
Input Port: HDMI and CVBS RCA
RF Input: F Female
RF Output: F Female
Input Resolution: 1080P/1080i/720P/576P/576i/480p
HDMI Version: 1.3
HDCP Version: 1.3
Operating Temperature: 0℃ - +40℃
Dimensions: 6.1x4.1x2.1 in
Weight: 0.71 lb.
PACKAGE
1 x HDMI to RF Modulator (US Plug)
1 x Manual
