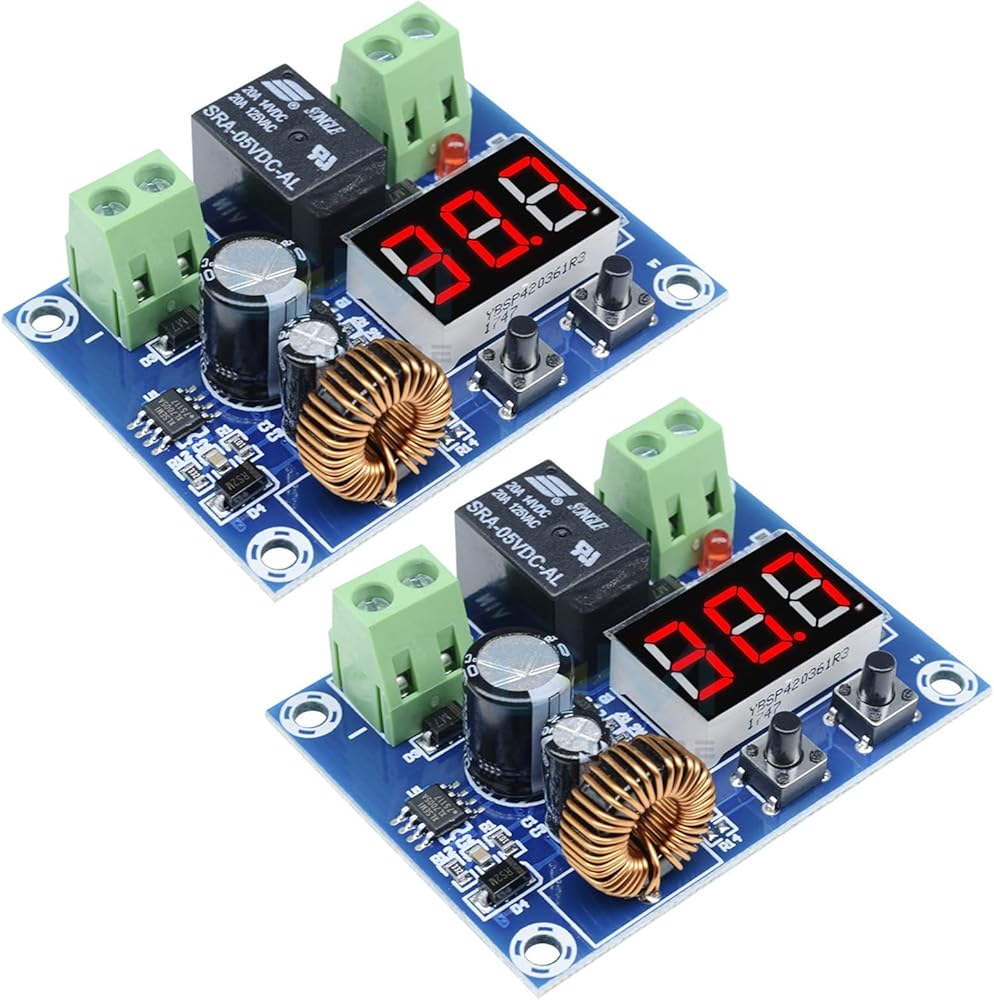

2PCS Digital Low Voltage Protector 12V-36V Disconnect Switch Cut Off Over Discharge Protection Module for Lead Acid Lithium Battery Charger Solar Panel Lighting System Camper

KWD 4.500
Brand
ANMBEST
Weight
46 g
– 1 +

Special Features

  • A digital low voltage protector is a device designed to protect electrical equipment or appliances from damage caused by low voltage conditions. Users can easily set the parameter to disconnect the battery automatically when it reaches a preset voltage, thus preventing over-discharging, preventing potential harm to the connected devices. These protectors are particularly useful in regions where voltage fluctuations are common, ensuring the safe operation of sensitive electronics.
  • HIGH-ACCURACY: 3-digit LED screen display. It can easily read output voltage and setting parameters. Display Accuracy: 0.1V, Control Accuracy: 0.1V.
  • Reset: When the power is off, press and hold the two buttons at the same time, and then power on. At this time, the screen displays "888", indicating that the factory settings are restored. The factory-set protection value: 12V, difference value: 2V.Difference Value" is the value between the battery voltage to disconnect and the battery voltage to reconnect.
  • Board Size: 57 X 42 X 19mm/2.24 X 1.65 X 0.75inch(L*W*H), Input Voltage Range: DC12-36V, Control Accuracy: 0.1V, Power Consumption: <1.5W, Instantaneous maximum current before circuit breaker trip: 20A.
  • With power-off protection, it will save your settings in the event of an unexpected loss of power. This feature is crucial for electronic devices that require specific configurations, as it prevents the loss of critical data and allows you to resume work where you left off.

Description

Specifications:
Model: XH-M609
Input Voltage: DC12-36V
Output Voltage: Equal to Input Voltage
Display Accuracy: 0.1V
Control Accuracy: 0.1V
Power Consumption: less than 1.5w
Voltage Error: ±0.1V
Net Weight: 28g
Size: 57 mm×42 mm×19mm/ 2.24″×1.65″×0.75″
Application:Various storage batteries, lithium batteries
Instructions:
+ button: press once to display the protection value, long press to set the protection value
- button: Press once to display the difference value, long press to set the difference value
Setting example:
1. Below 11V stop voltage output, higher than 11.6V start
Operation: Long press +, the screen flashes, set to 11, wait for the screen to no longer flash, then press - again, the screen flashes, set to 0.6
2.Below 12.5V stop voltage output, voltage higher than 14.8V start
Operation: Long press +, the screen flashes, set to 12.5, wait for the screen to no longer flash, then press -, the screen flashes, set to 2.3
Package inlcuded:
2x Voltage OverDischarge Battery Protection Module
