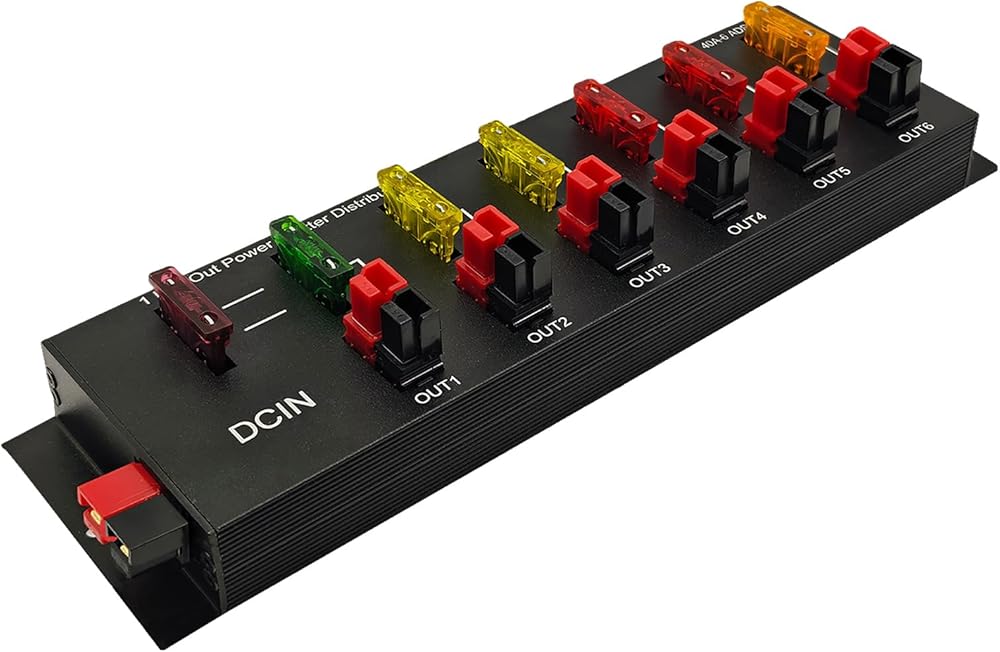

1 in 6 Connector Power Divider Power Board,40Amp Power Pole Distribution Block Module,Powerpole Distribution Block.

KWD 23

Brand
GUIRUIMOON
Weight
210 g
1 +

Special Features

  • [Product Parameters]: Anderson powerpole distribution block's working voltage is DC0-32V, maximum input current is 40A, fuse 40A. there are 6 output ports, fuse 30A*1, 20A*2, 10A*2, 5A*1. the no-load quiescent current is less than 8mA (at 13.8V).
  • [High Quality Material]: fused distribution block shell is made of aluminium alloy, treated by black oxidation process, compared with ordinary iron shell spray painting process, the feel is more delicate and the surface wear resistance is significantly improved.

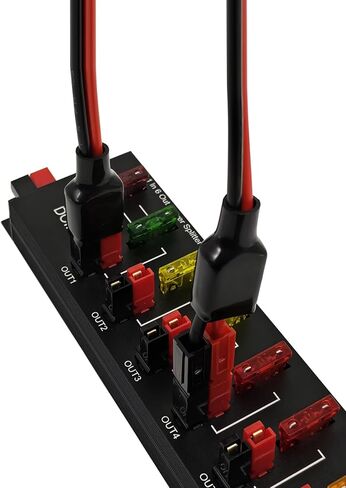

  • [Easy to Use]: DC power distribution module with screw holes for easy installation, support base design for portable placement. Dimensions: 7.28 inches x 2.05 inches x 1.18 inches (L x W x H).
  • [Good Safety]: The power distribution module is equipped with a high quality fuse holder, which can effectively prevent the risk of overload or short circuit to ensure the safety of the equipment. The fuse can be replaced to reduce long-term use costs, facilitate maintenance and extend product life.
  • [Package Includes]: 1*DCIN distribution module, 7 black power pole housings, 7 red power pole housings, 12*silver plated copper 30A 14-12AWG power pole contacts, 2 12*silver plated copper 30A 14-12AWG power pole contacts, 2*tinned copper 45A 12-10AWG power pole contacts.
  • [Tips]: The fuse design of this product is relatively sturdy, which can effectively prevent accidental loosening or detachment. It is recommended to use It is recommended to use specialised tools (such as pointed nose pliers) to clamp the tail of the fuse and pull it out vertically during replacement.

Description

Operating voltage: DC0-32V
Maximum input current: 40A, Fuse 40A
Output ports: 6 output ports, fuse 30A*1, 20A*2, 10A*2, 5A*1
Case: High quality aluminium case
Dimensions: Length 7.28in, Width 2.05in, Height 1.18in
Weight: Gross weight: 211g. Net weight: 170g
Package includes: 1*distribution module
