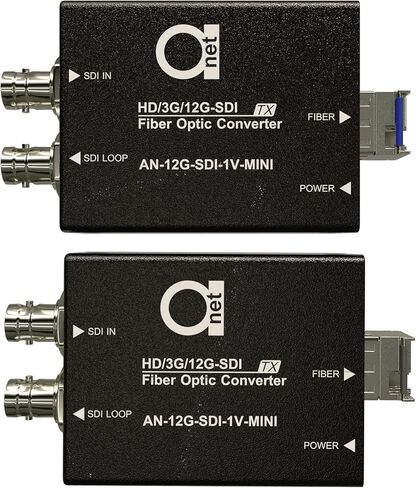

The Mini 12G-SDI Video to Fiber Optical Converter by AD-net Technology, CO LTD (Taiwan) is engineered for professional-grade video transmission. This compact device supports 1-channel 12G-SDI Video/Data signal transmission via fiber optical cable, allowing you to monitor signals locally with a 12G-SDI loop output.
Designed for versatility, this converter is compatible with a wide range of SDI standards, including 12G, 6G, 3G, HD, and SD. It supports SMPTE formats: 2082-1, 2081-1, 424, 292, and 259, and is compatible with DVB-ASI and AES10 (MADI). The embedded audio feature ensures that each SDI channel includes 1-channel audio.
With a transmission range of up to 10 km (6.2 miles) using single-mode fiber and up to 1 km (0.62 miles) using multimode fiber, this converter is ideal for a variety of applications such as UHDTV/HDTV/SDTV video production, digital video processing, live event broadcasting, and industrial and military monitoring. The automatic cable equalization and integrated reclocking ensure signal integrity, making it a reliable choice for high-performance surveillance networks and intelligent traffic monitoring systems.
The Mini 12G-SDI converter supports hot swapping and hot plugging, making it easy to install and maintain. It features a Type C 5V power input and consumes a maximum of 2W, making it energy-efficient. The compact dimensions (70 x 55 x 25 mm) make it easy to integrate into any setup.
Whether you're broadcasting live events, monitoring industrial processes, or setting up a high-definition video surveillance system, the Mini 12G-SDI Video to Fiber Optical Converter delivers exceptional performance and reliability.
Technical Specifications:
Input: 1 x 12G-SDI on BNC

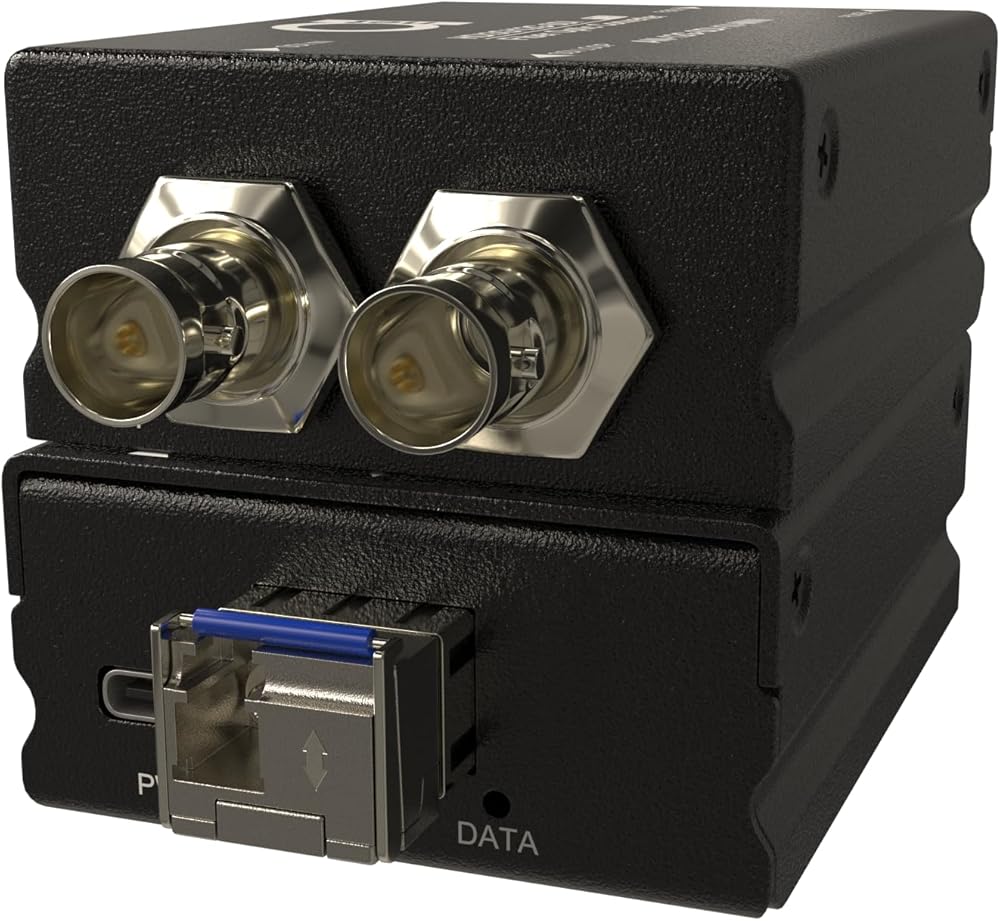

Output: 1 x LC optical fiber; 1 x 12G-SDI loop-out on BNC
Supported Resolutions: 4K (3840x2160 @ 60Hz), 1080P, 1080I, 720P
Transmission Bandwidth: 270MHz~12GHz
Power: Type C 5V, Max. Consumption 2W
Dimensions: 70 x 55 x 25 mm
Operating Temperature: -40°C to +85°C
Storage Temperature: -20°C to +75°C
