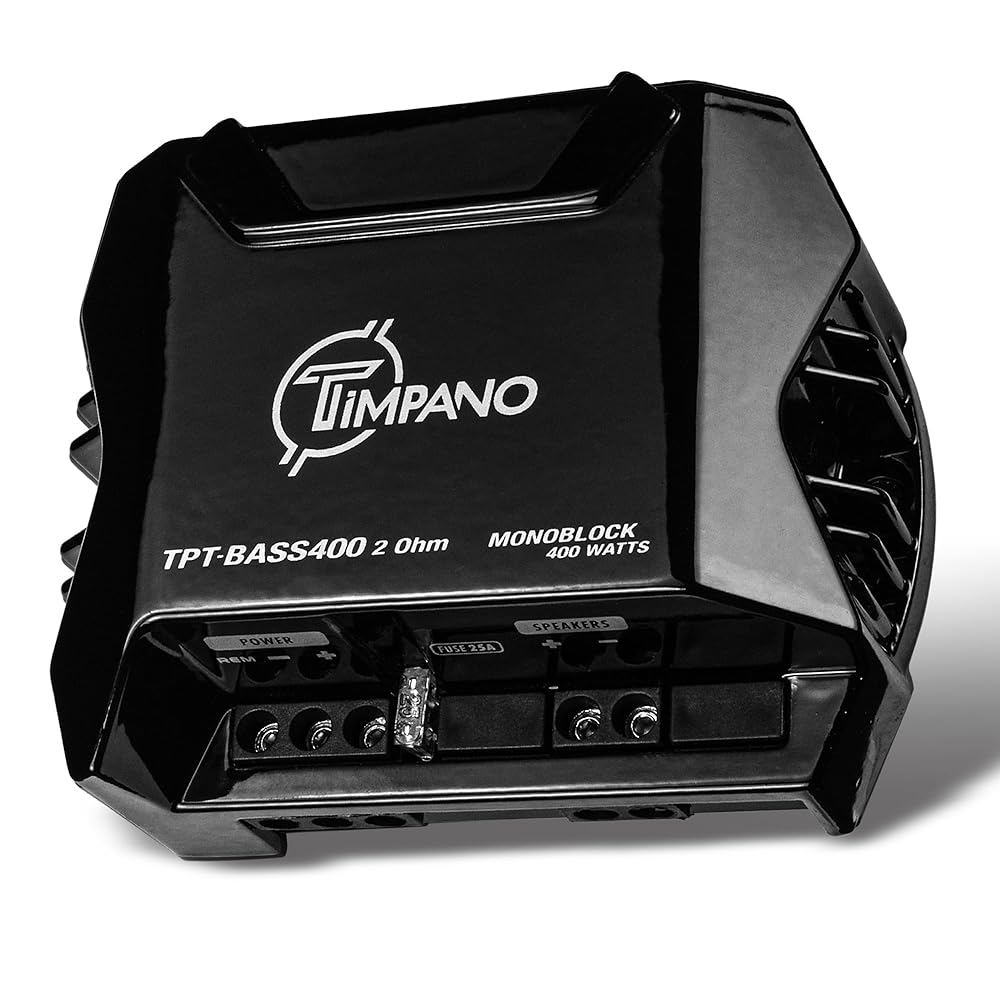

Timpano 400 Watts Car Audio Bass Amplifier TPT-BASS400 2 Ohm – 12 volts Monoblock Class D Car Amp
Anybody in need of a car audio bass amplifier that can fit just about anyplace in their car and won't break the bank should consider this Timpano Bass Series car amplifier.
POWER: This monoblock Car Audio amplifier is designed to run a single dual 4 Ohm subwoofer powering up to 400 Watts of pure RMS power. Its high efficiency provides more power with less battery consumption.

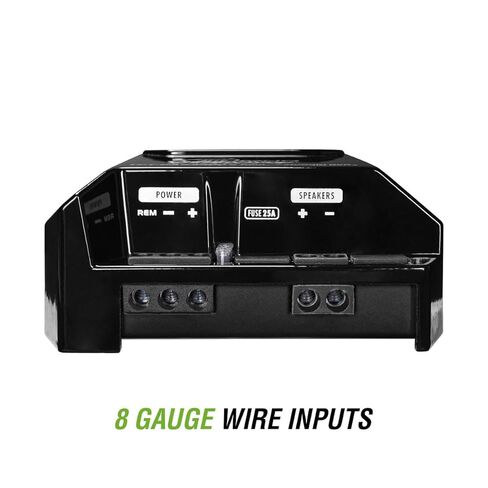

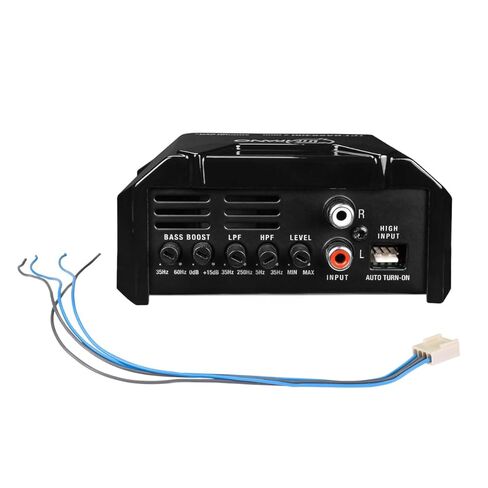

FEATURES: Heavy duty power and speakers terminals. Built-in variable crossover filters for easy tuning! Set setting for your subwoofer with a SUBSONIC ( HPF) filter 5 to 35Hz and LPF 35 to 250Hz without a need for an external crossover or DSP. Fine tune it according to your box with variable frequency dial and BASS BOOST at choose frequency up to +15 dB. Level controls to adjust the amount of signal that is coming into the amplifier from your signal source.
DESIGN: Digital full bridge class D Brazilian technology allows this car audio amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 3.93″ depth x 5.02″ width x 2.00″ height
HIGH LEVEL INPUTS with SIGNAL AUTO TURN ON: Attaches directly to systems using speaker-level inputs with signal auto turn-on to eliminate remote turn-on wiring
The BASS Series from Timpano combines half-bridge amplifier engineering with the newest semiconductor technologies. Utilizing them, higher power-to-footprint ratios are possible, and the more compact chassis created for this technology does not degrade the output power or stability.
To handle even the most demanding bass sessions, this amplifier comes with sturdy heatsink, heavy duty power and ground inputs, high current PCBs, and premium internal components.
Additional Information:
Number of Channels: 1
400 Watts RMS Power at 2 Ohm 14.4Volts
210 Watts RMS Power at 4 Ohm 14.4 Volts
Supply Voltage: 9V ~ 15V
Frequency Response: 5Hz ~ 250Hz
Crossover Low Pass Filter: 35Hz ~ 250Hz
Crossover (HPF) Subsonic Filter: 5Hz ~ 35Hz
Bass Boost Freq: 35Hz ~ 60Hz
Bass Boost Gain: 0 dB ~ +15 dB
Input Impedance: RCA 10k Ohm / Wire 1K Ohm
Signal to Noise: > 90 dB
Impedance Output: 2 Ohm
Musical Consumption: 17A
Bass Consumption: 43A
Dimensions (L x W x H): 3.93” x 5.02” x 2.00”
Weight: 1.11 Lbs
