Battery Tester, Battery Internal Resistance Voltage Tester, 200Ω 100V Portable Car Battery Tester for High Accuracy True 4-Wire AC SineLithium Lead-Acid Battery Voltage Detector (RC3563)
Dual Measurement: Rechargeable battery tester measures battery internal resistance and voltage simultaneously, and supports batch testing of batteries
High-Precision: Battery tester features a Kalman filter algorithm for precise and reliable results, ideal for battery production and maintenance, cell pairing, device testing, other DIY detection
True Four-Wire Measurement: Battery voltage tester utilizes a true four-wire system at 1kHz AC sine wave for enhanced accuracy in low-resistance testing, minimizing measurement errors
Versatile Use: Battery tester can test various batteries, such as lithium, lead-acid, UPS battery, 18650 battery, mobile phone battery, car starter battery and more, and can measure AC resistance of resistors and low-resistance components

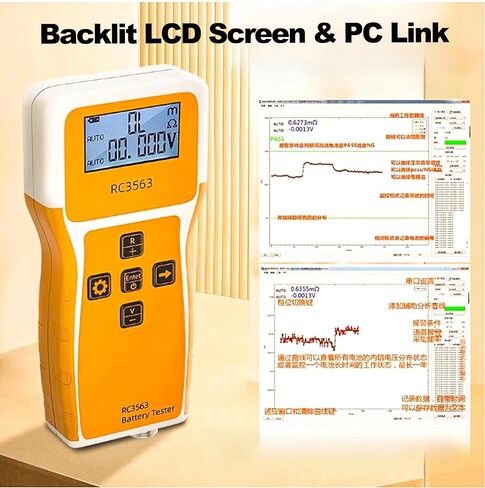

LCD Screen & PC Link: Designed with a clear backlit LCD display, the battery internal resistance voltage tester supports communication with computer or laptops for graphic analysis of data

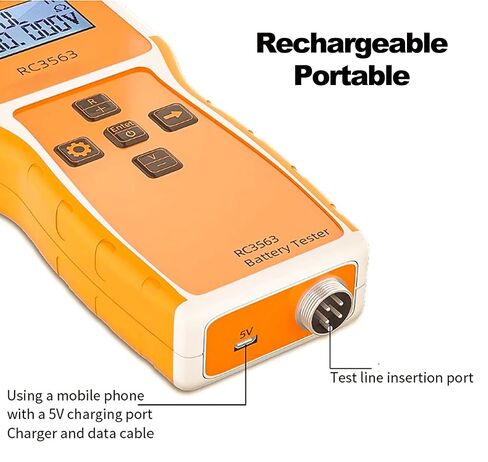

Portable Design: Compact and lightweight for easy carrying, this lithium lead-acid battery tester is perfect for on-the-go testing in labs, workshops, or field use
Rechargeable: Battery checker tester equipped with a built-in 1000mAh lithium battery for extended use and convenient recharging, auto power off over 30-min no operation
SPECIFICATION
Model: RC3563

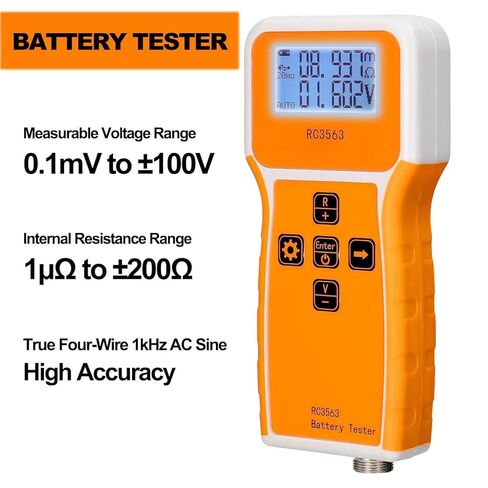

Voltage Measurement Range: 0.1mV to ±100V
Internal Resistance Measurement Range: 1μΩ to ±200Ω
Basic accuracy: Resistance: 0.5%; Voltage: 0.5%
Test signal frequency: AC 1KHz
Test signal current: 20mg, 50mA; 200ml, 5mA; 200, 0.5mA
Resistance ranges: 6 ranges, automatic and manual
Voltage ranges: 3 ranges, automatic and manual
Display update: 5 times / sec
Working Condition: -10℃ to 40℃,
Storage Condition: -20℃ to 80℃,
Dimensions: 6.73x3.15x1.10 inches
Weight: 0.38 lbs
PACKAGE

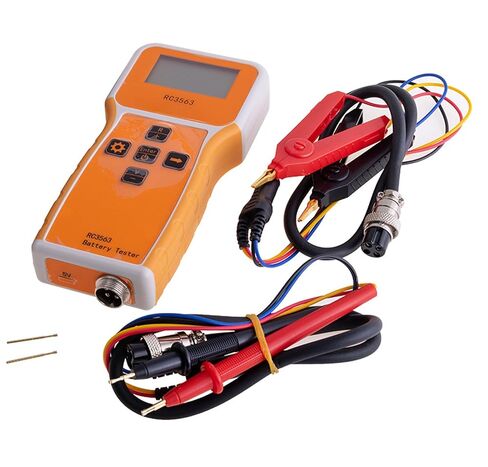

1 x RC3563 Battery Tester
1 x Kelvin Clips
1 x Test Probes
1 x Manual
