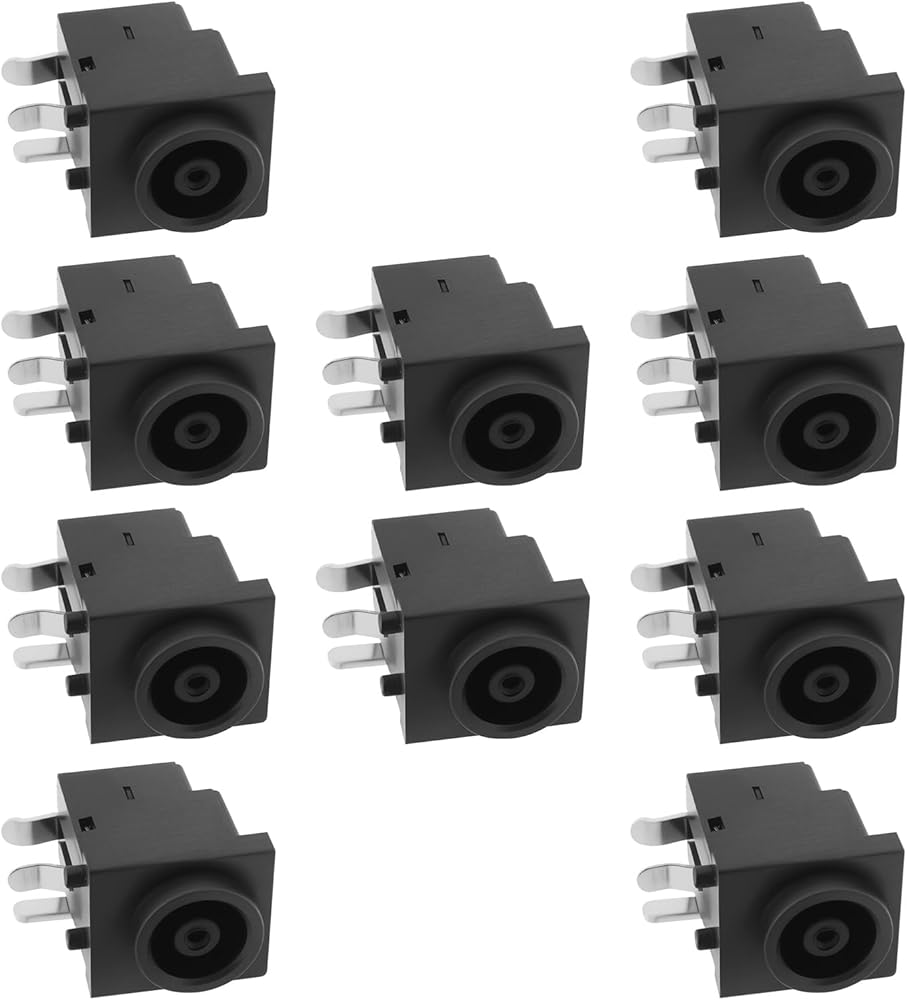

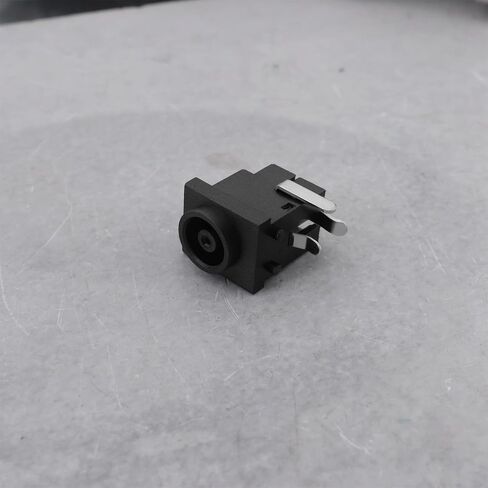

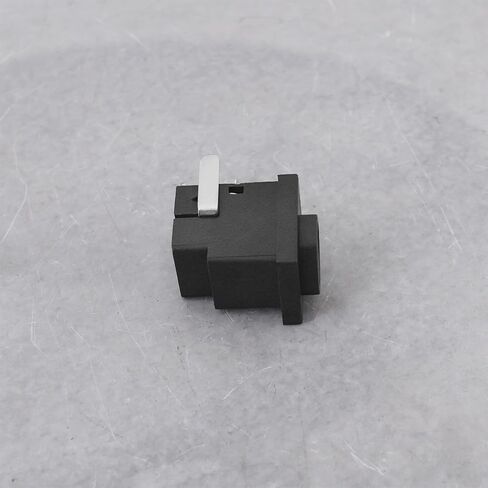

SING F LTD 10pcs PJ-019 PCB Mount DC Power Input Jack 12V 3Pin 1.1mm Hole DC Power Connectors Power Jacks Compatible with Makita BMR DMR Radios 12V Sockets

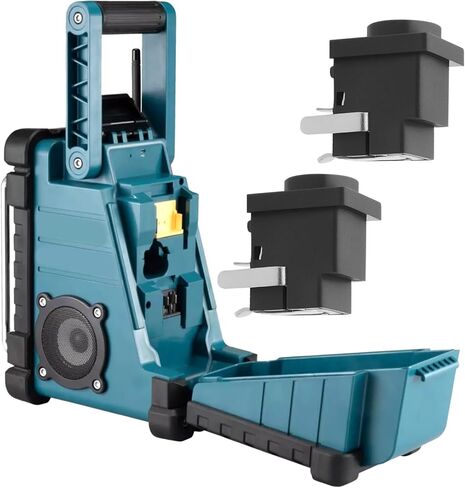

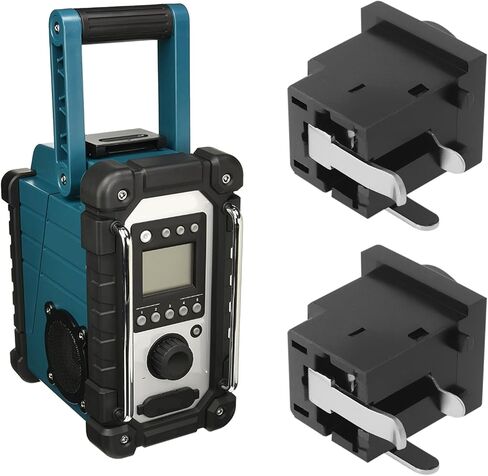

Compatibility and Use: These 12V sockets are specifically compatible with Makita BMR/DMR radios and are essential for maintaining reliable power input.
Functionality: The PJ-019 jack with an 5.5x1.1 hole enables power to be supplied to radios either via a 12V DC power adaptor or a power-tool battery, but not both simultaneously. The jack automatically disconnects the battery circuit when the 12V adaptor is plugged in.
Repair Process: Fixing the issue involves disassembling the radio to access the PCB, desoldering the old jack, and soldering in a new PJ-019 jack. This restores the functionality.

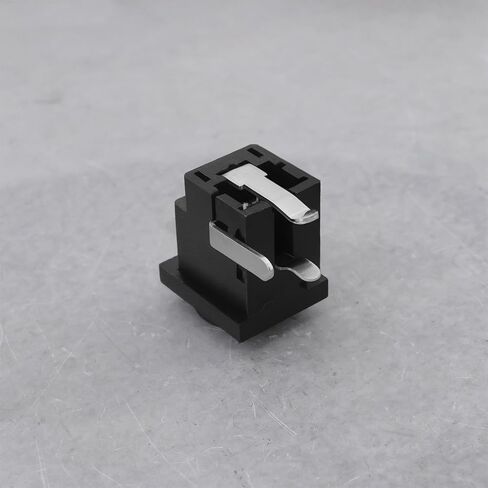

Spring-Contact: A spring-action electrical contact within the PJ-019 jack switches power sources. When the 12V plug is absent, the contact closes to enable battery power.

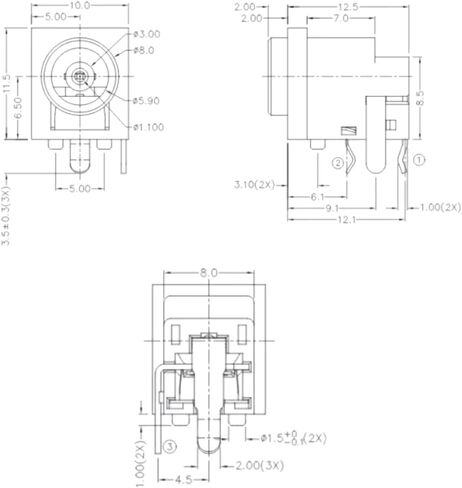

The spring contact may weaken due to repeated use, preventing it from returning to its default closed position. This results in the radio failing to power on via the battery when the 12V plug is removed. Please see pictures for exact specifications.
