6 PIN to 2 X 8 (6+2) PIN: One end is PCIe 6 Pin male port, the other end is PCIe 2 X 8(6+2) Pin male port.

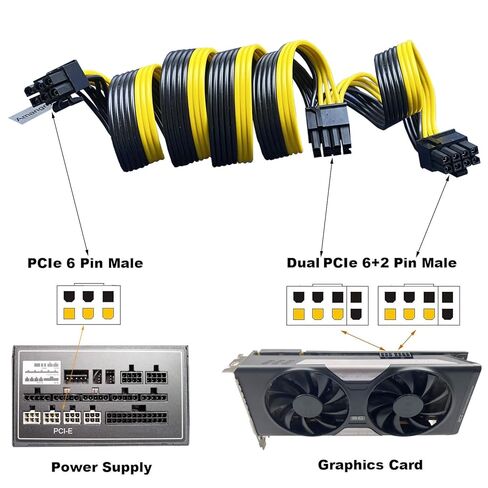

PCI EXPRESS POWER CABLE: 6 Pin male port connecting to PSU, the other 2 X 8(6+2) Pin male port connecting to GPU.

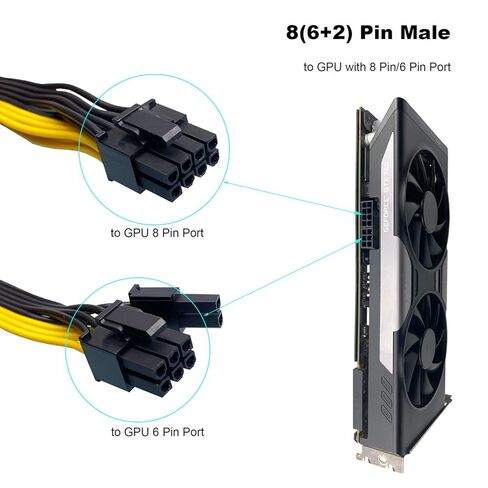

6 PIN to 8 PIN ADAPTER: Connected 6 Pin power supply to 8 Pin & 6 Pin graphics card.
PROVIDE EXTRA POWER REQUIREMENT: Provide convenient solution for supplying graphics card power with an 8 pin & 6 pin connector for GPU cards that require more power.
WIDELY COMPATIBLE: Compatible with 6 Pin & 8 Pin graphics cards from popular manufacturers ASUS, ASRock, Radeon, Sapphire, EVGA and Gigabyte.
Description

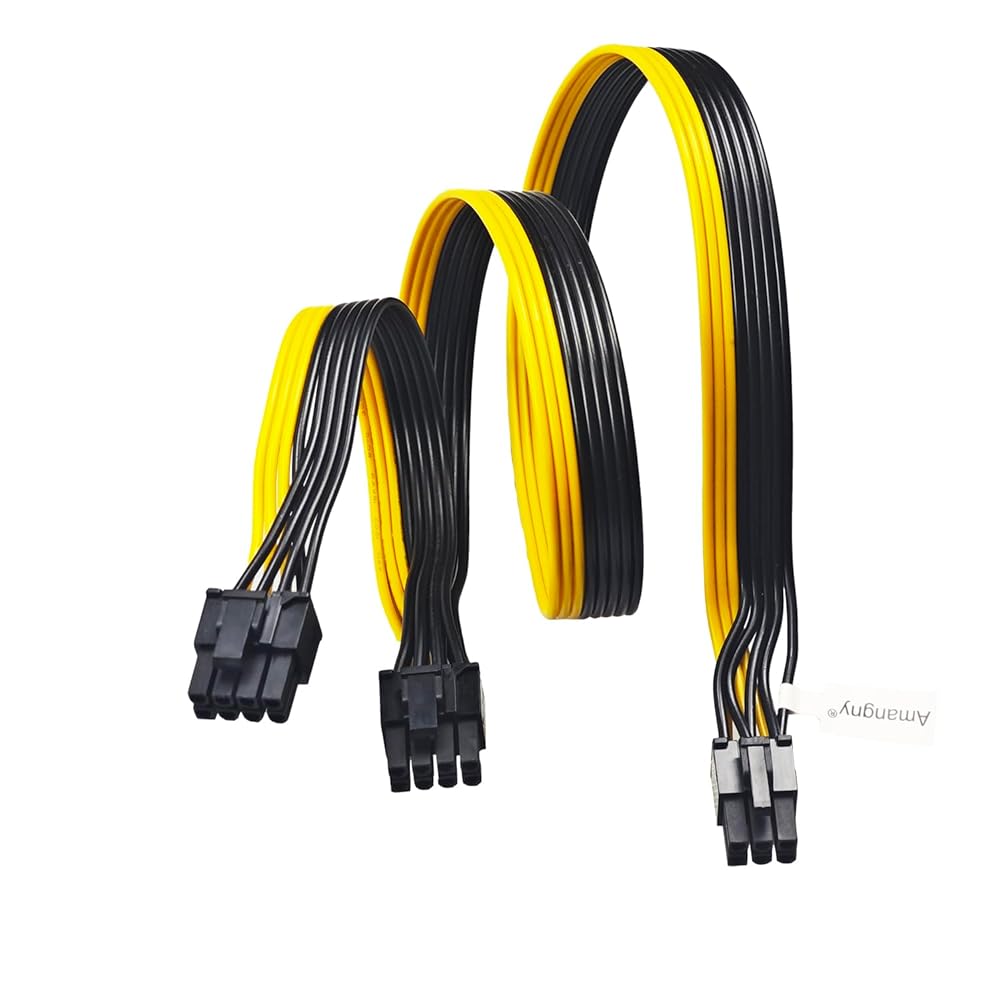

18 AWG PCIe 6 Pin Male to Dual 8 Pin (6+2) Male PCI Express Adapter Power Cable

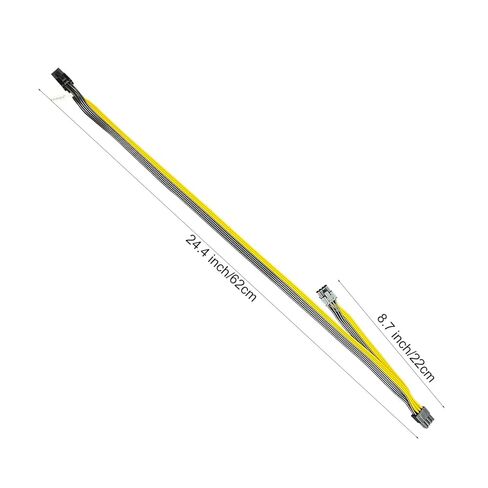

Product Length: 24.4 inch + 8.7 inch
Product Weight: 2.4 ounce
Wire Color: Black & Yellow
Wire Model: 1007 - 18AWG
Material: PVC Insulation
Conductor Specifications: 34*0.18TS
Conductor Material: Tinned Copper Wire
Diameter: OD2.5mm
Rated Temperature: 80 ℃
Product Interface: PCIe 6 Pin Male Connector on One End, the Other End of PCIe 2*8(6+2) Pin Male Interface
