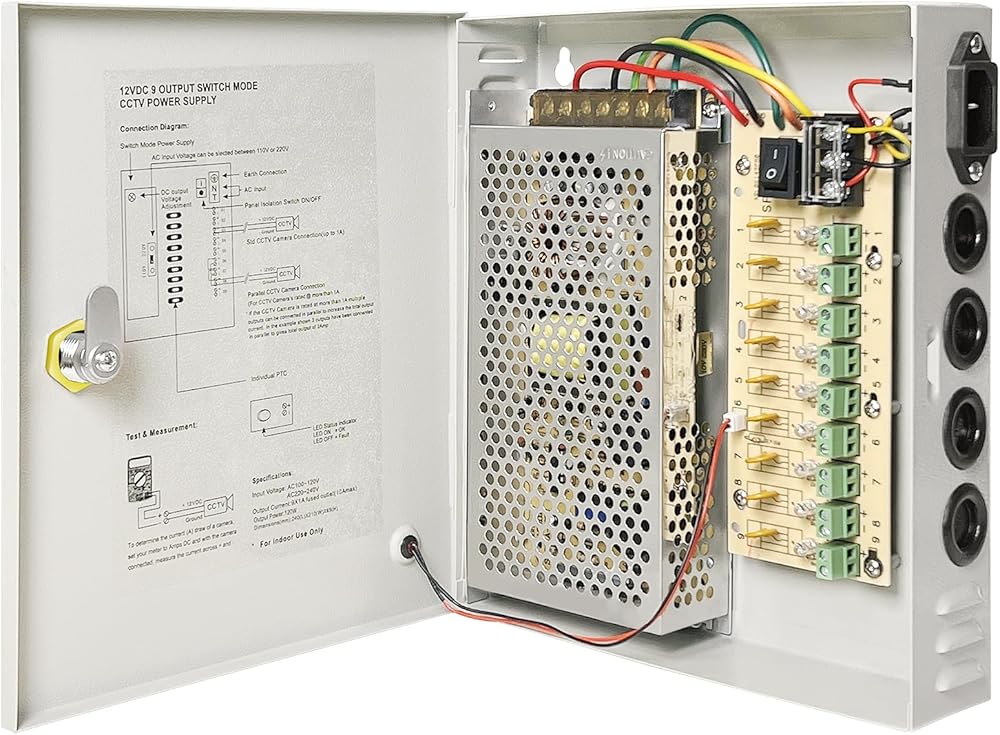

9 Channels DC12V 10 Amp PTC Reset Fuse CCTV Power Supply with Metal Box,Include 9pcs DC Male Pigtail,AC Plug and Lock Suit for Security Cameras,CCTV Cameras,NVRs,LEDs

KWD 12.500
Brand
MWRCTV
Weight
1.1 kg
– 1 +

Special Features

  • Input: 100-240VAC; Output: 12VDC ; Supply Current: 10Amp; Max. Amp: 1.1Amp/Channel; DC12V Regulator CCTV Power Supply Box, 18 Outputs with PTC Fuse
  • Each channel has separate reset fuse and LED indicator,it can ensure short-circuits and surges will not affect other channels.
  • More convenience,no need to change the fuse.When over current happens, the power supply will automatically switch to self-protection status, after a while, the switch back to normal.
  • The metal shell is Wear-resistant, long lasting,lock wit keys,safety to use.
  • This DC12V 30 Amp Power Supply has 9 channels include 9pcs DC Male Pigtail,AC Plug and Lock.

Description

Specification:
OUTPUT DC Port: 9 Channel
OUTPUT VOLTAGE: DC 12V
RATED CURRENT: DC 5A
RATED POWER: 60W
INPUT VOLTAGE RANGE: AC 100-120V, AC 200-240V, 50Hz / 60Hz
FREQUENCY RANGE: 47-63HZ
LEAKAGE CURRENT: 1mA/240VAC
ENVIRONMENT: WORKING TEMP -10~+60°C
WORKING HUMIDITY: 20-90%RH non-condensing
STORAGE TEMP,HUMIDITY: -20~+85°C,10-95%RH
Shell Material: Metal case / Aluminum case
Technical support
If you have any questions, please contact us, we will give you a satisfactory solution.
