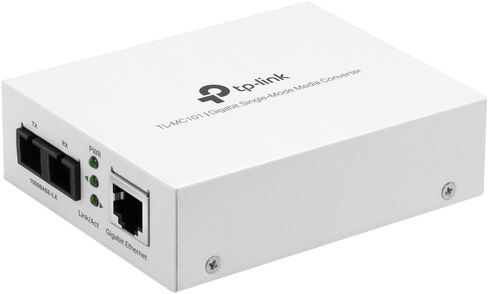

TL-MC101 is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, TL-MC101 is designed for use with single-mode fiber cable utilizing the SC-Type connector. TL-MC101 supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. TL-MC101 will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
